Figure 3-3 shows a four-switch stack of model 5600 switches using three 3-inch
and three 9-inch XPAK switch stacking cables. 64 1/2/4-Gbps ports are available
for devices.

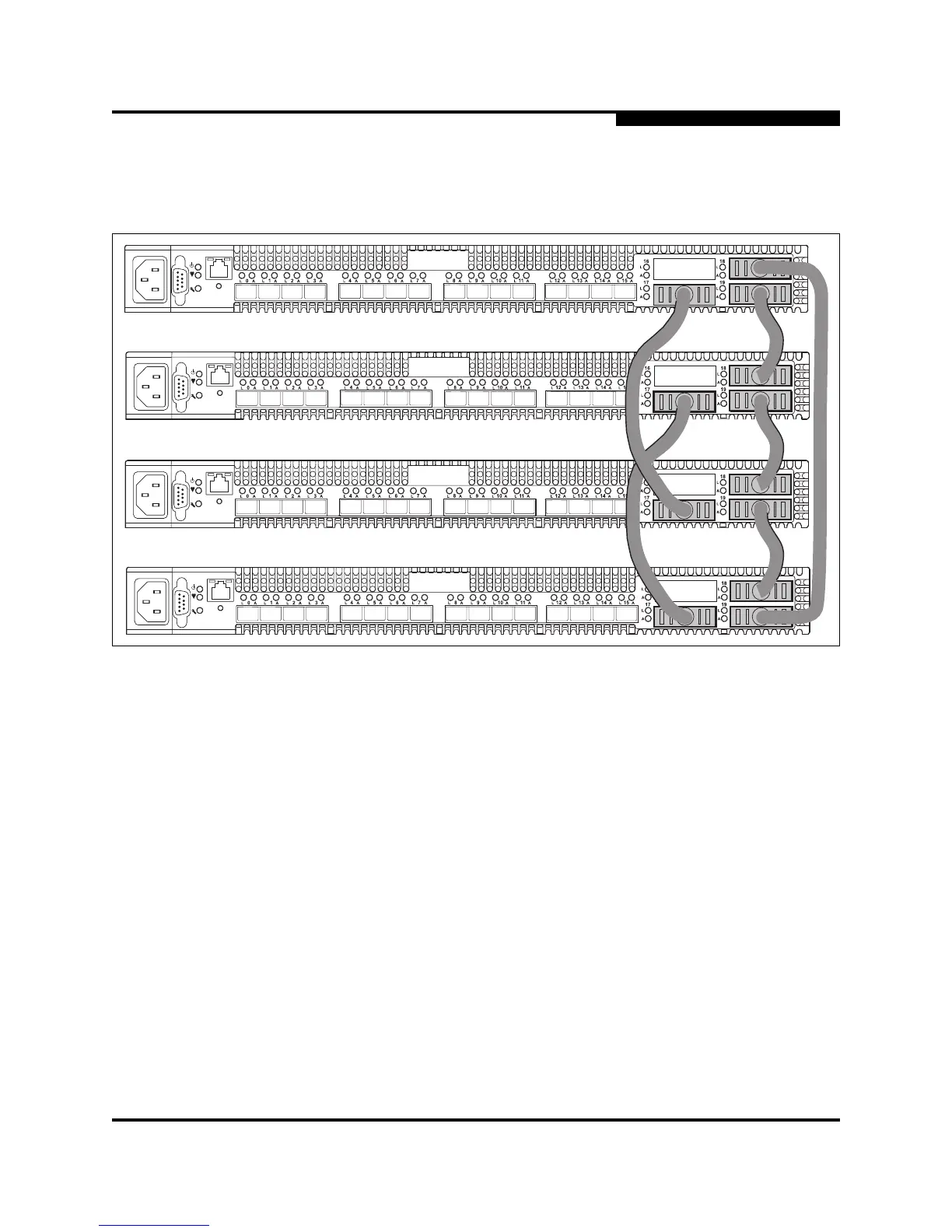

Figure 3-3. Four-Switch Stack
