200 QXS G2 Hardware Installation and Maintenance Guide
1 Locate the four screw studs on the front of the chassis drawer.

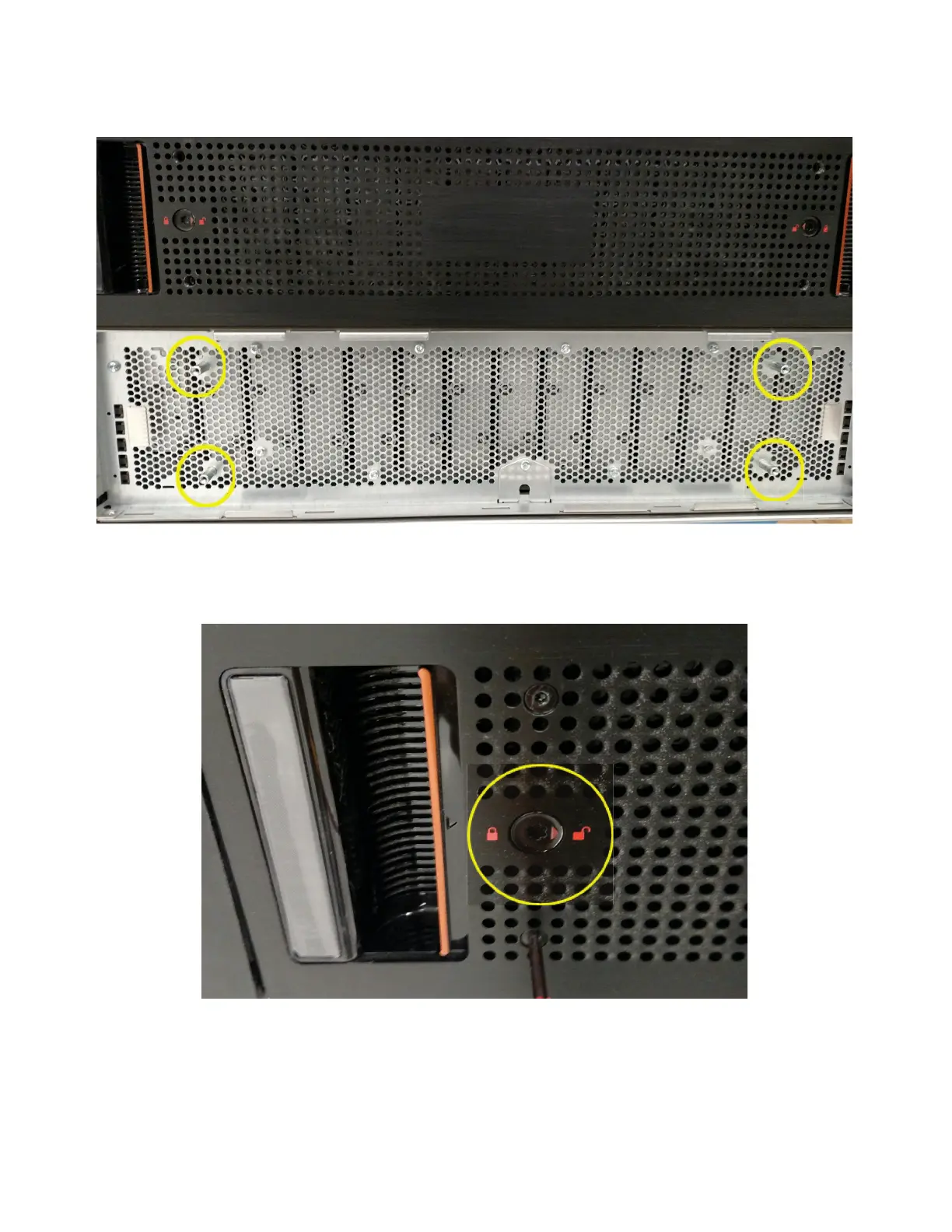

Figure 160 5U84 Chassis Bezel Removed Drawer 1 (Screw Studs)
2 Using a T20 torque-tip driver unlock the anti-tamper locks (2 each) on the left and right side of the
replacement drawer bezel.
Figure 161 5U84 Drawer Unlock Anti-tamper Locks
