Module Remove and Replace 201
3 Push both left and right drawer latches inward and seat the bezel into the 5U84 chassis drawer
slot.

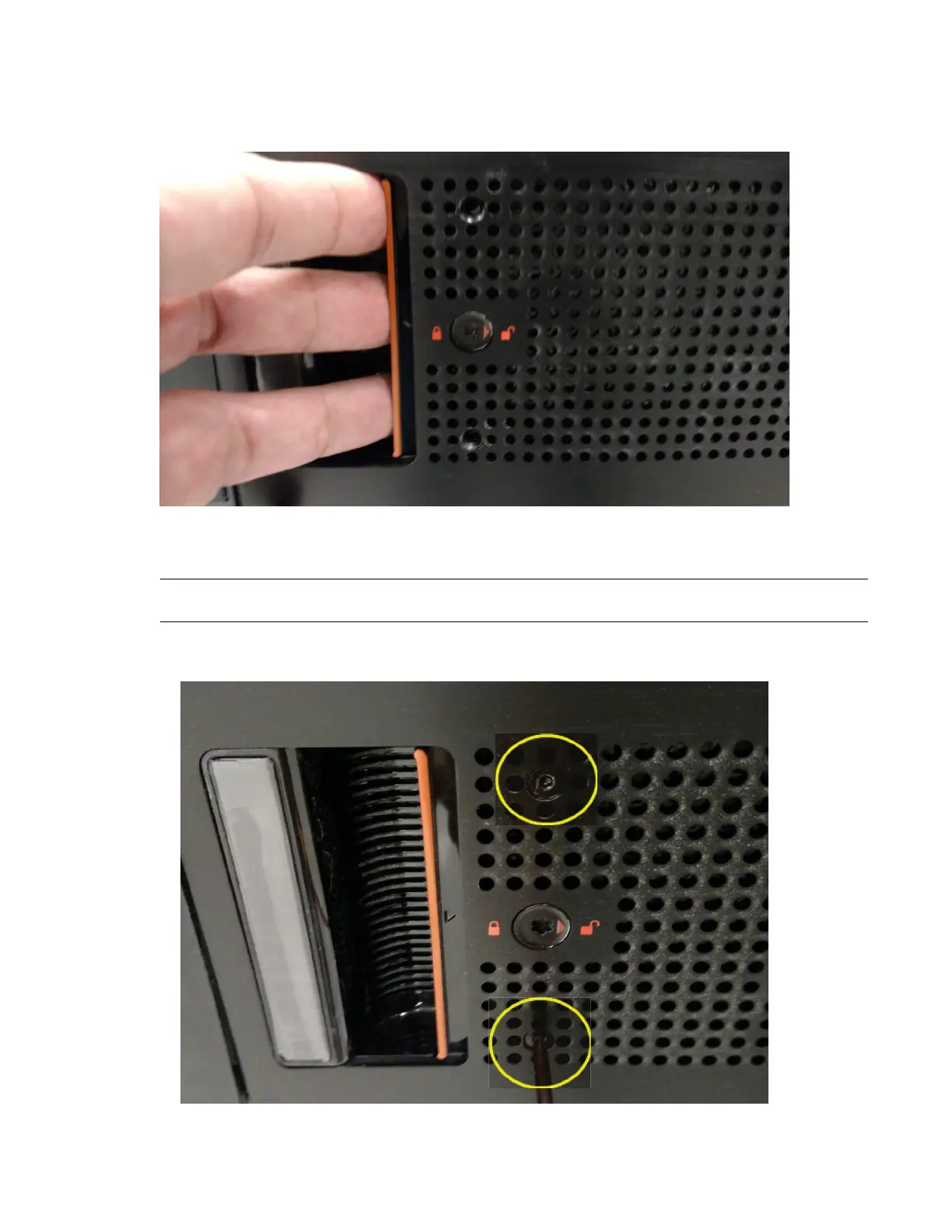

Figure 162 5U84 Chassis Bezel Drawer Latches (2 Each)
4 Using a T8 torque-tip driver install the four bezel screws on left and right side of the bezel.
CAUTION: Do not over tighten the four bezel screws as this might damage the bezel
Figure 163 5U84 Chassis Bezel Screws (4 Each)
