52 QXS G2 Hardware Installation and Maintenance Guide
DDIC with 3.5” Drive

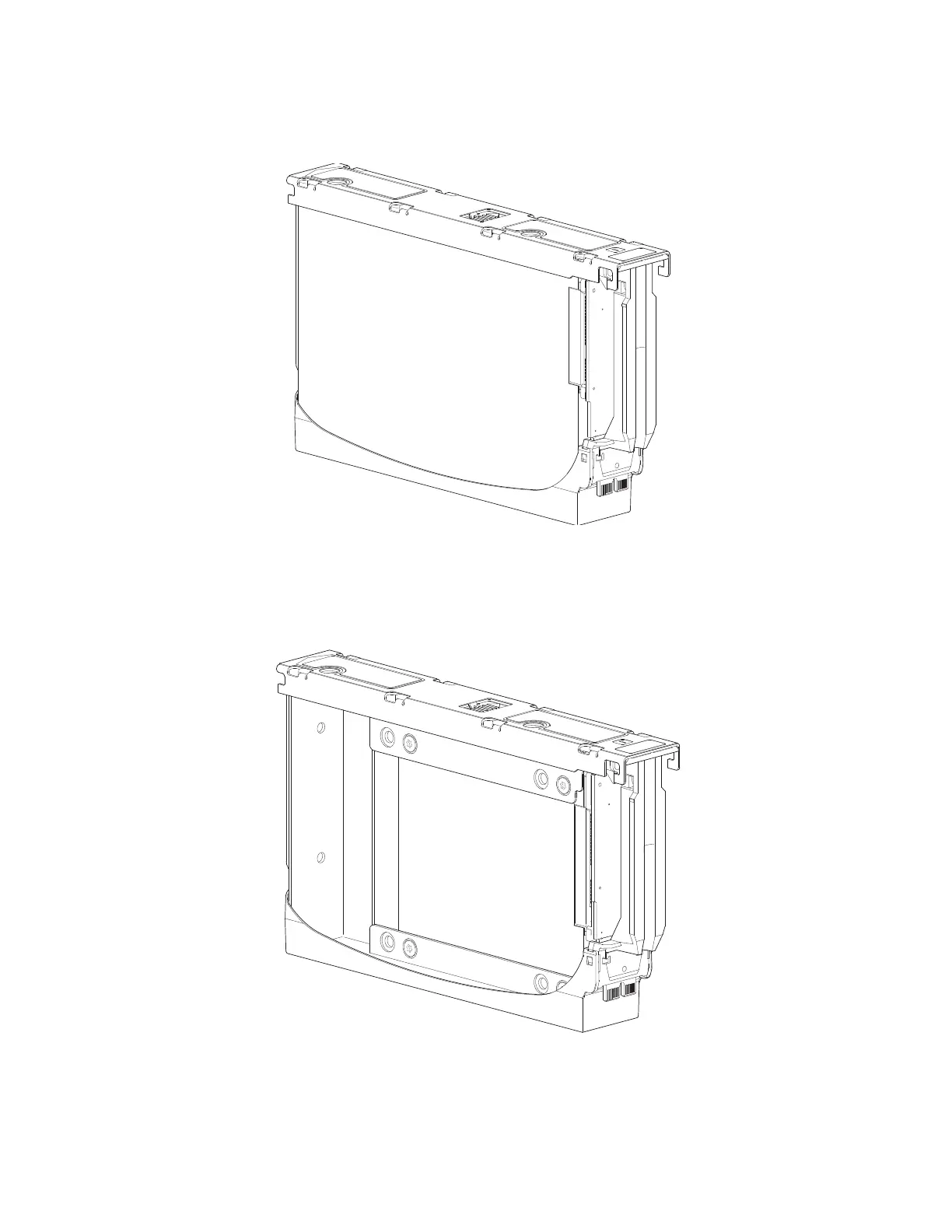

Figure 55 shows a DDIC with a 3.5" drive for the 5U84 chassis.
Figure 55 DDIC with 3.5” Drive
DDIC with Adapter and 2.5” Drive
Figure 56 shows a DDIC with adapter and 2.5" drive for the 5U84 chassis.
Figure 56 DDIC with Adapter and 2.5” Drive
The DDIC features a latch button (center of top view) and a slide latch with arrow label (left of latch
button). These features allow you to install and secure the DDIC into the drive slot within the drawer.
They also allow you to disengage the DDIC from its slot, and remove it from the drawer. The DDIC
features a single Drive Fault LED (top view on right), which illuminates amber when the disk has a
fault.
