EM120R-GL&EM160R-GL Hardware Design
EM120R-GL&EM160R-GL_Hardware_Design 57 / 79

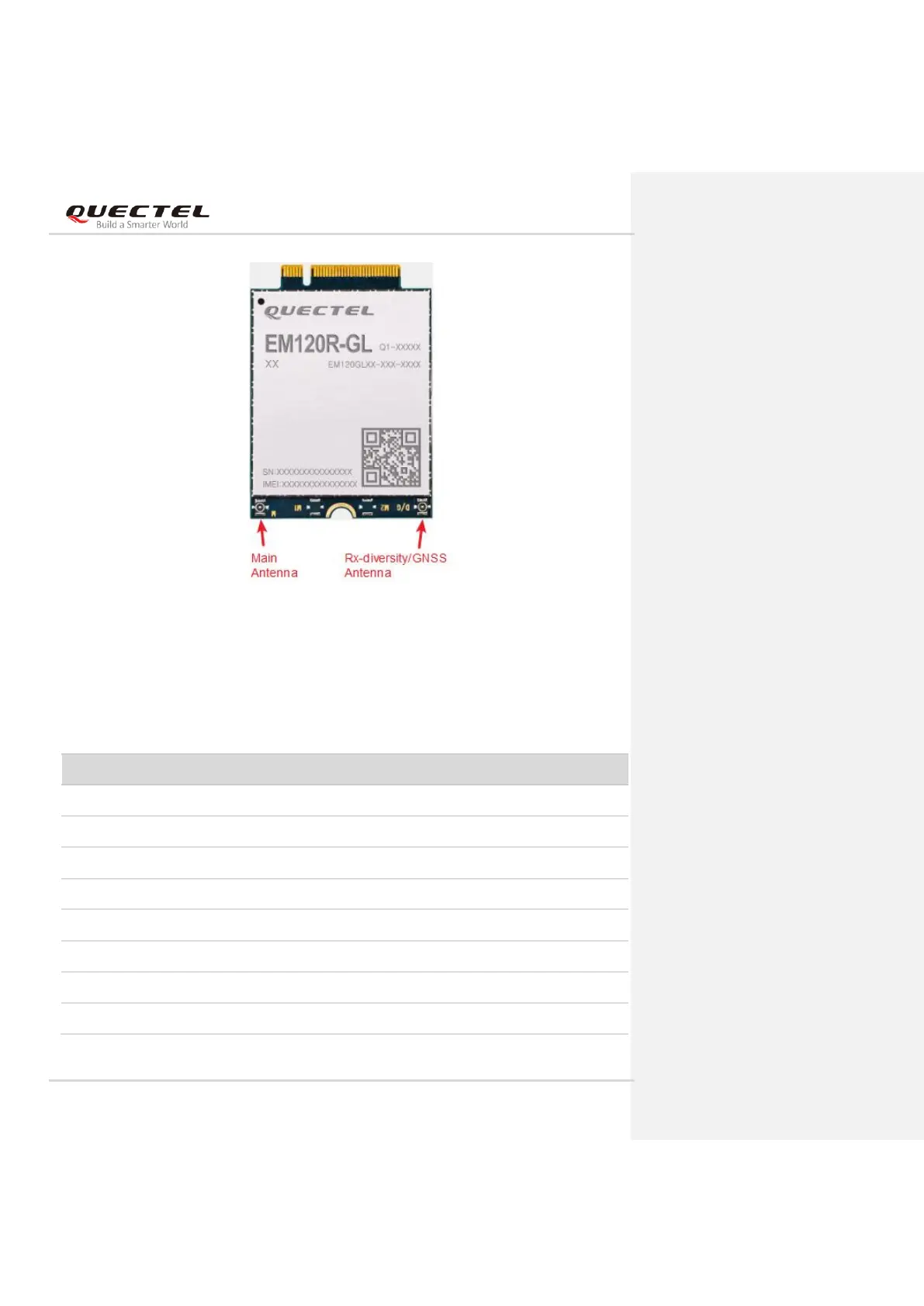

Figure 33: Antenna Connectors on the EM120R-GL Module
5.1.1. Operating Frequency
Table 29: Operating Frequencies of EM120R-GL&EM160R-GL
3GPP Band
Transmit
Receive
Unit
WCDMA B1
1920–1980
2110–2170
MHz
WCDMA B2
1850–1910
1930–1990
MHz
WCDMA B3
1710–1785
1805–1880
MHz
WCDMA B4
1710–1755
2110–2155
MHz
WCDMA B5
824–849
869–894
MHz
WCDMA B6
830–840
875–885
MHz
WCDMA B8
880–915
925–960
MHz
WCDAM B19
830–845
875–890
MHz
