LTE-A Module Series
EM120R-GL&EM160R-GL Hardware Design
EM120R-GL&EM160R-GL_Hardware_Design 74 / 79
7.3.2. Design Renderings of EM120R-GL Module

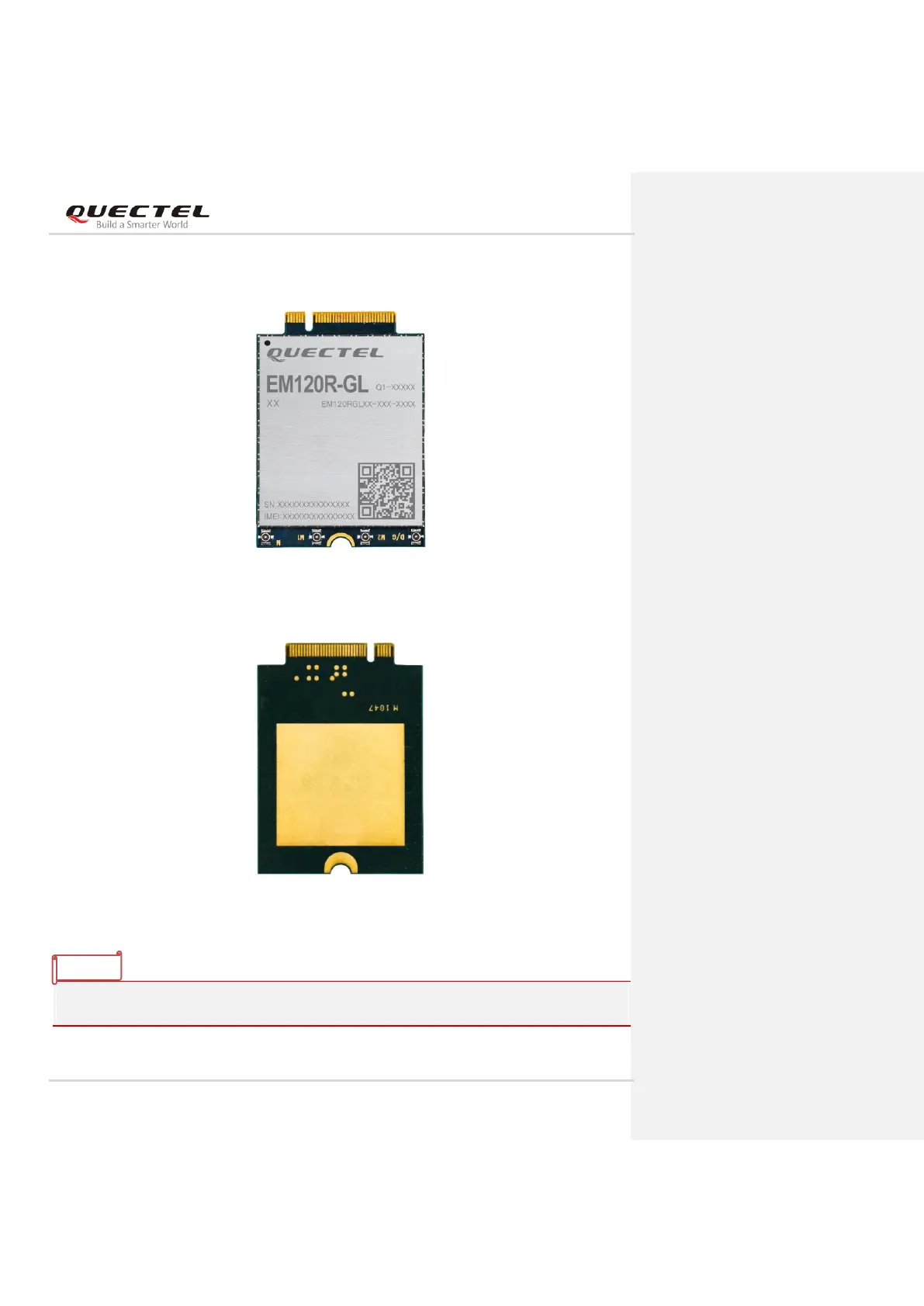

Figure 44: Top View of the Module
Figure 45: Bottom View of the Module
These are renderings of EM120R-GL&EM160R-GL. For authentic appearance, refer to the modules that
you receive from Quectel.
