7 Mechanical Dimensions and
Packaging
This chapter mainly describes mechanical dimensions and packaging specifications of
EM120R-GL&EM160R-GL. All dimensions are measured in mm, and the dimensional tolerances are
±0.05 mm unless otherwise specified.
7.1. Mechanical Dimensions of the Module

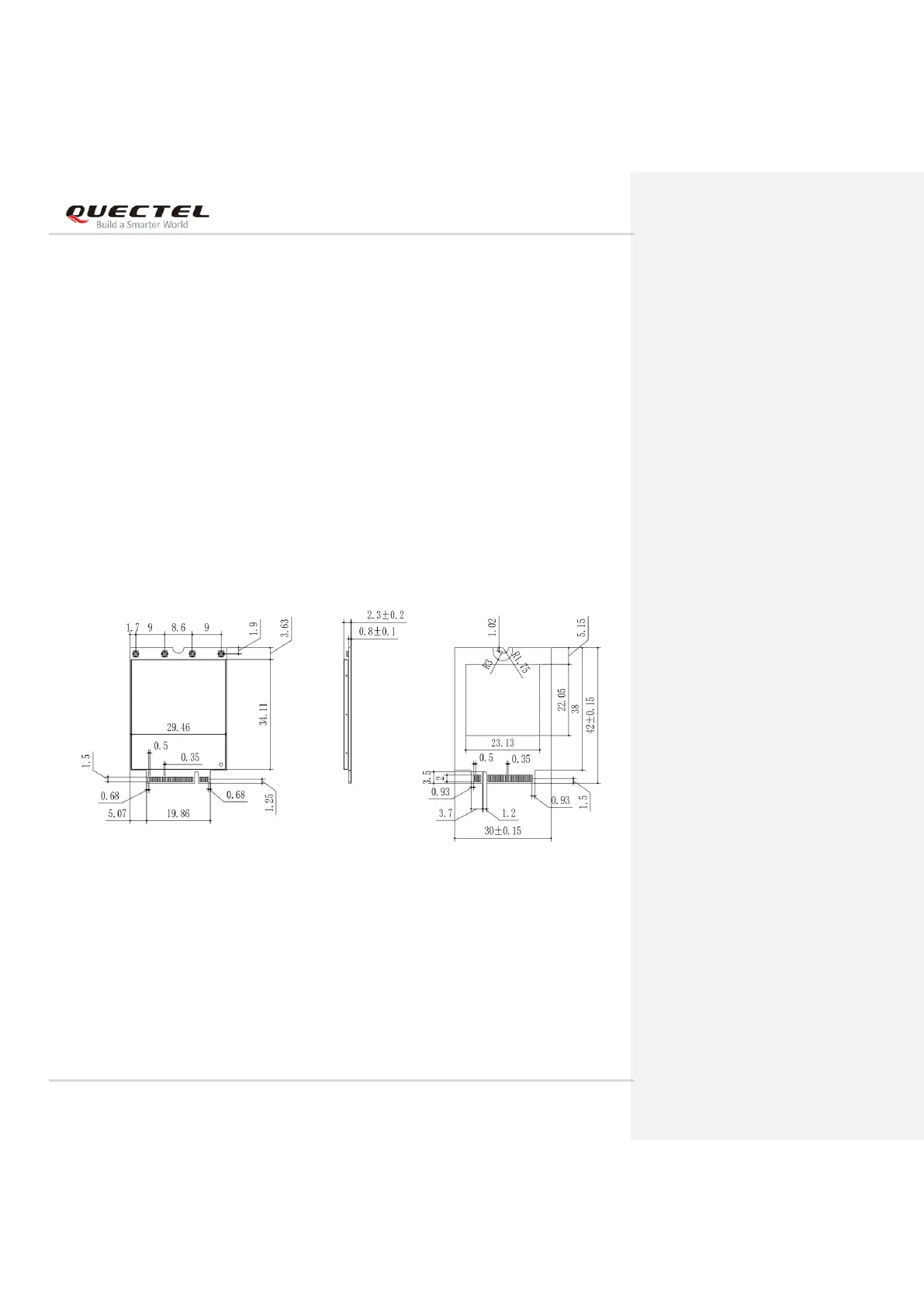

Figure 39: Mechanical Dimensions of EM120R-GL&EM160R-GL (Unit: mm)
