Quectel LTE-A Module Series User Manual

LTE-A Module Series
EM120R-GL&EM160R-GL Hardware Design
EM120R-GL&EM160R-GL_Hardware_Design 63 / 79

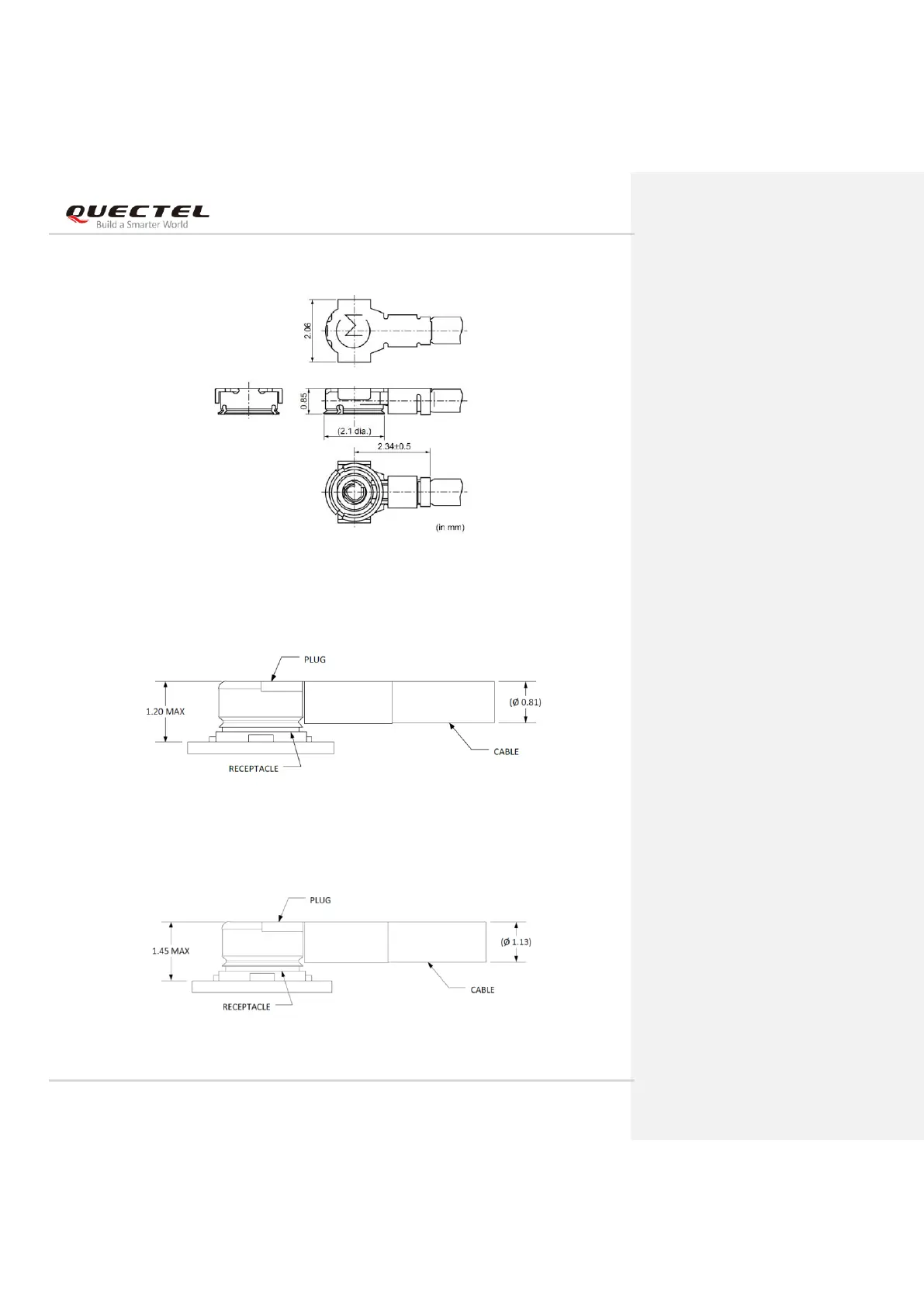

The following figure shows the specifications of mating plugs using Ø0.81 mm coaxial cables.
Figure 35: Specifications of Mating Plugs Using Ø0.81 mm Coaxial Cables
The following figure illustrates the connection between the receptacle RF connector on
EM120R-GL&EM160R-GL and the mating plug using a Ø0.81 mm coaxial cable.
Figure 36: Connection between RF Connector and Mating Plug Using Ø0.81 mm Coaxial Cable
The following figure illustrates the connection between the receptacle RF connector on
EM120R-GL&EM160R-GL and the mating plug using a Ø1.13 mm coaxial cable.
Figure 37: Connection between RF Connector and Mating Plug Using Ø1.13 mm Coaxial Cable
