5G Module Series
RG520N-AT_Hardware_Design 81 / 109

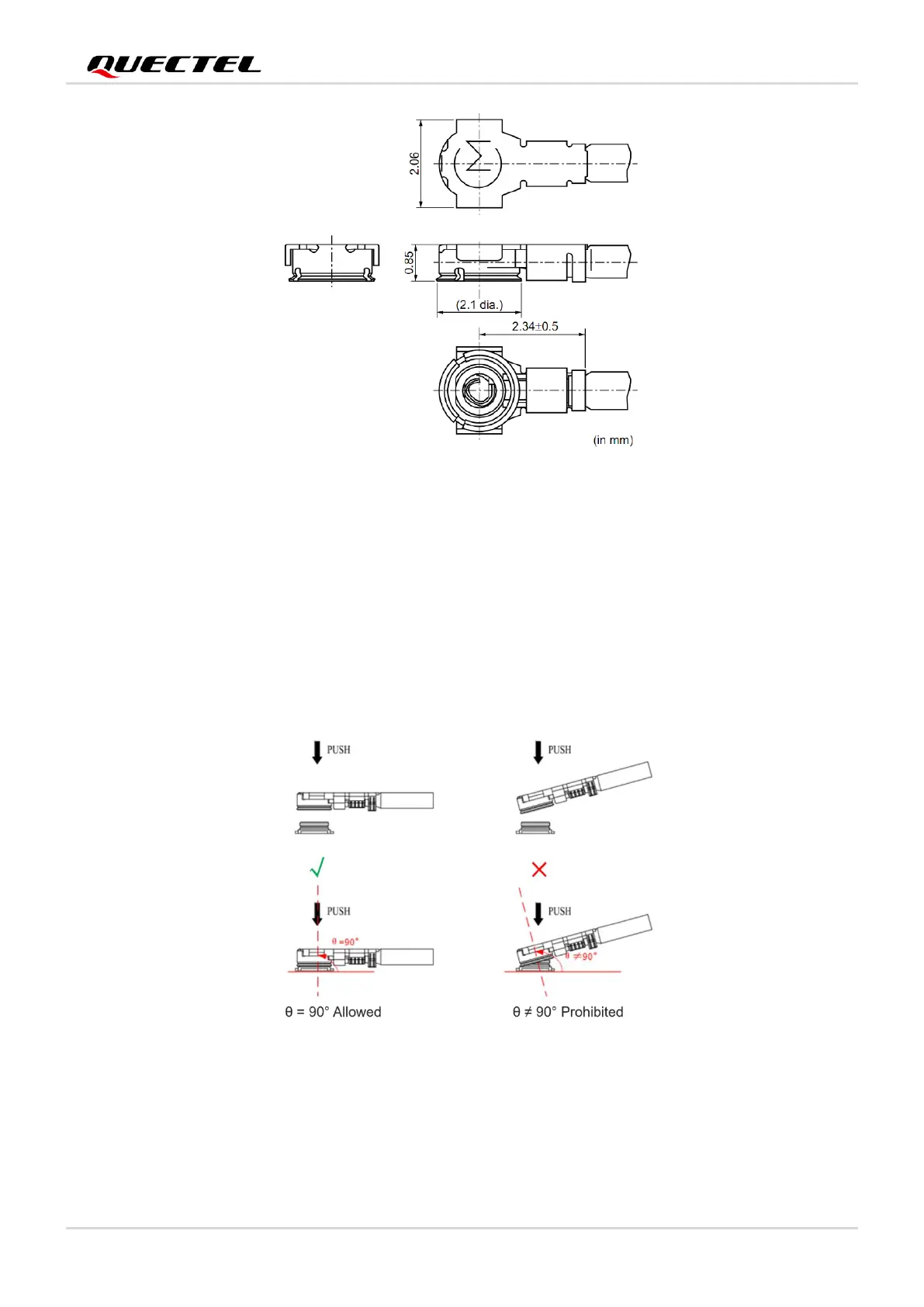

Figure 43: Dimensions of Mated Plugs Using Ø0.81 mm Coaxial Cables (Unit: mm)
5.5.1. Recommended RF Connector for Installation
5.5.1.1. Assemble Coaxial Cable Plug Manually
The illustration for plugging in a coaxial cable plug is shown below, θ = 90° is acceptable, while θ ≠ 90° is
not.
Figure 44: Plug in a Coaxial Cable Plug
The illustration of pulling out the coaxial cable plug is shown below, θ = 90° is acceptable, while θ ≠ 90° is
not.
