Quectel RG520N-AT - 7 Mechanical Information; Mechanical Dimensions

5G Module Series
RG520N-AT_Hardware_Design 89 / 109
7 Mechanical Information
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ±0.2 mm unless otherwise specified.
7.1. Mechanical Dimensions

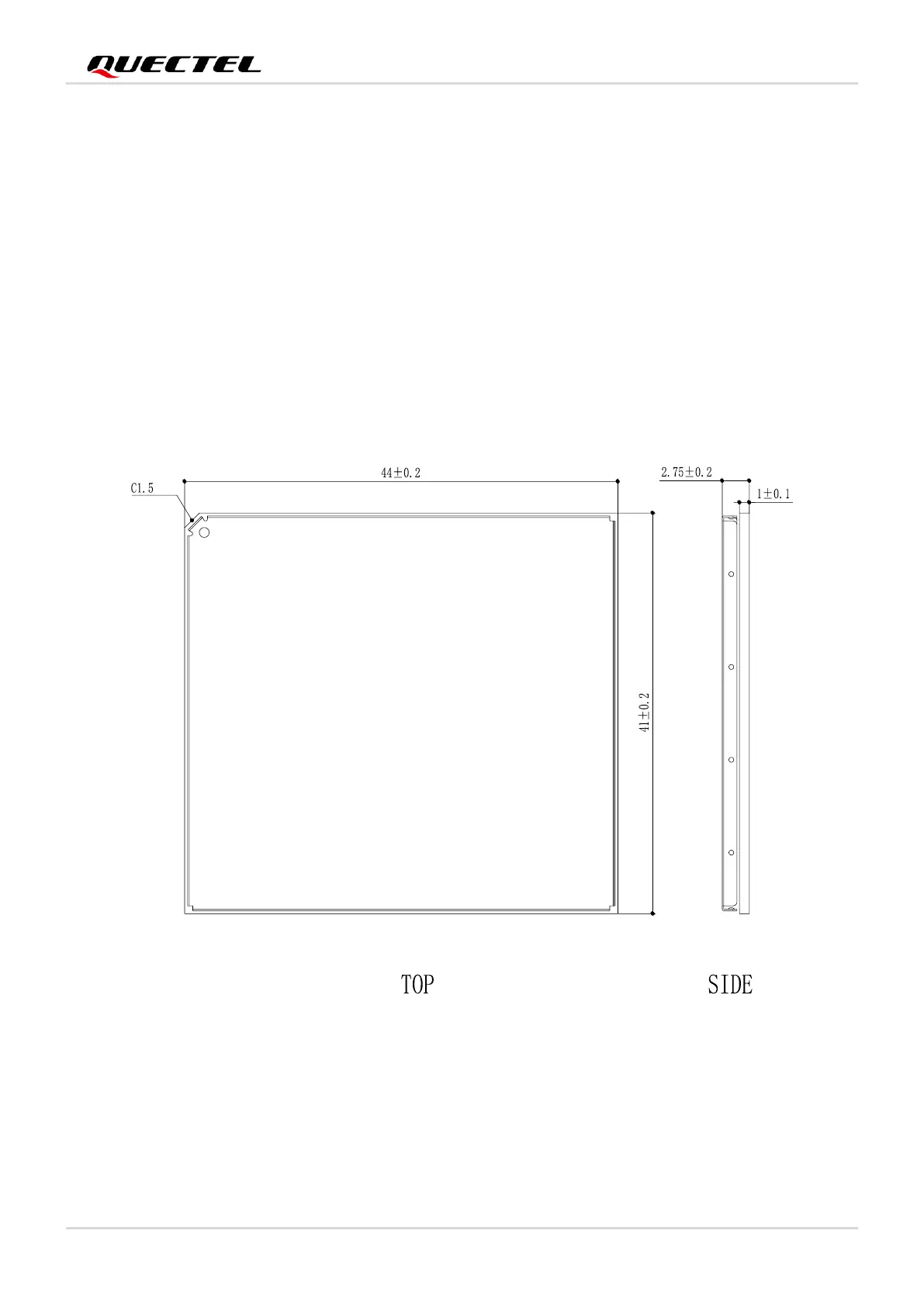

Figure 48: Module Top and Side Dimensions
Pin 1
