8.3.1. Carrier Tape
Dimension details are as follow:

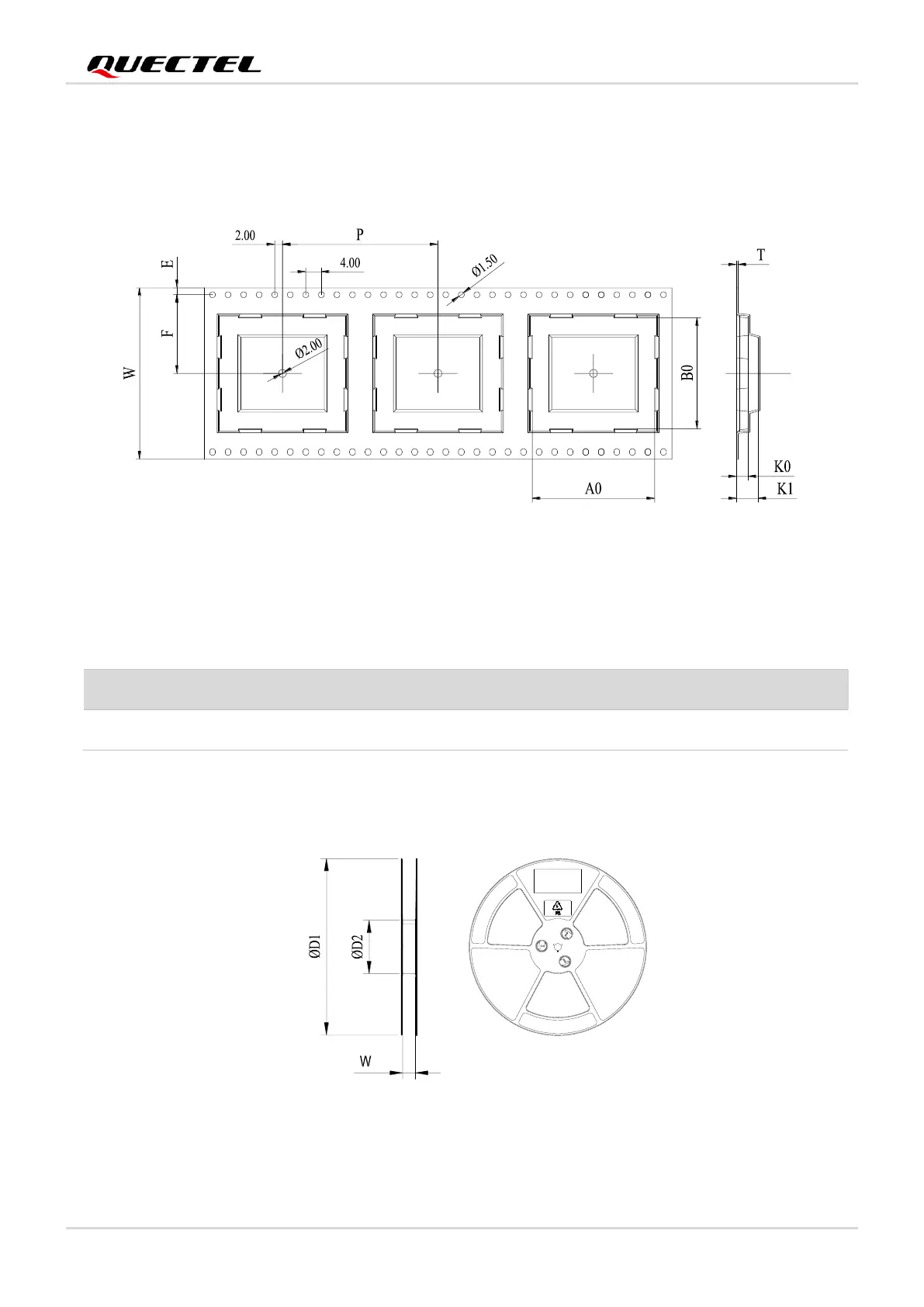

Figure 53: Carrier Tape Dimension Drawing
Table 55: Carrier Tape Dimension Table (Unit: mm)
8.3.2. Plastic Reel
Figure 54: Plastic Reel Dimension Drawing
W
P
T
A0
B0
K0
K1
F
E
72
56
0.4
44.7
41.7
4.2
5.2
34.2
1.75
