5G Module Series
RG520N-AT_Hardware_Design 97 / 109
Table 56: Plastic Reel Dimension Table (Unit: mm)
8.3.3. Mounting Direction

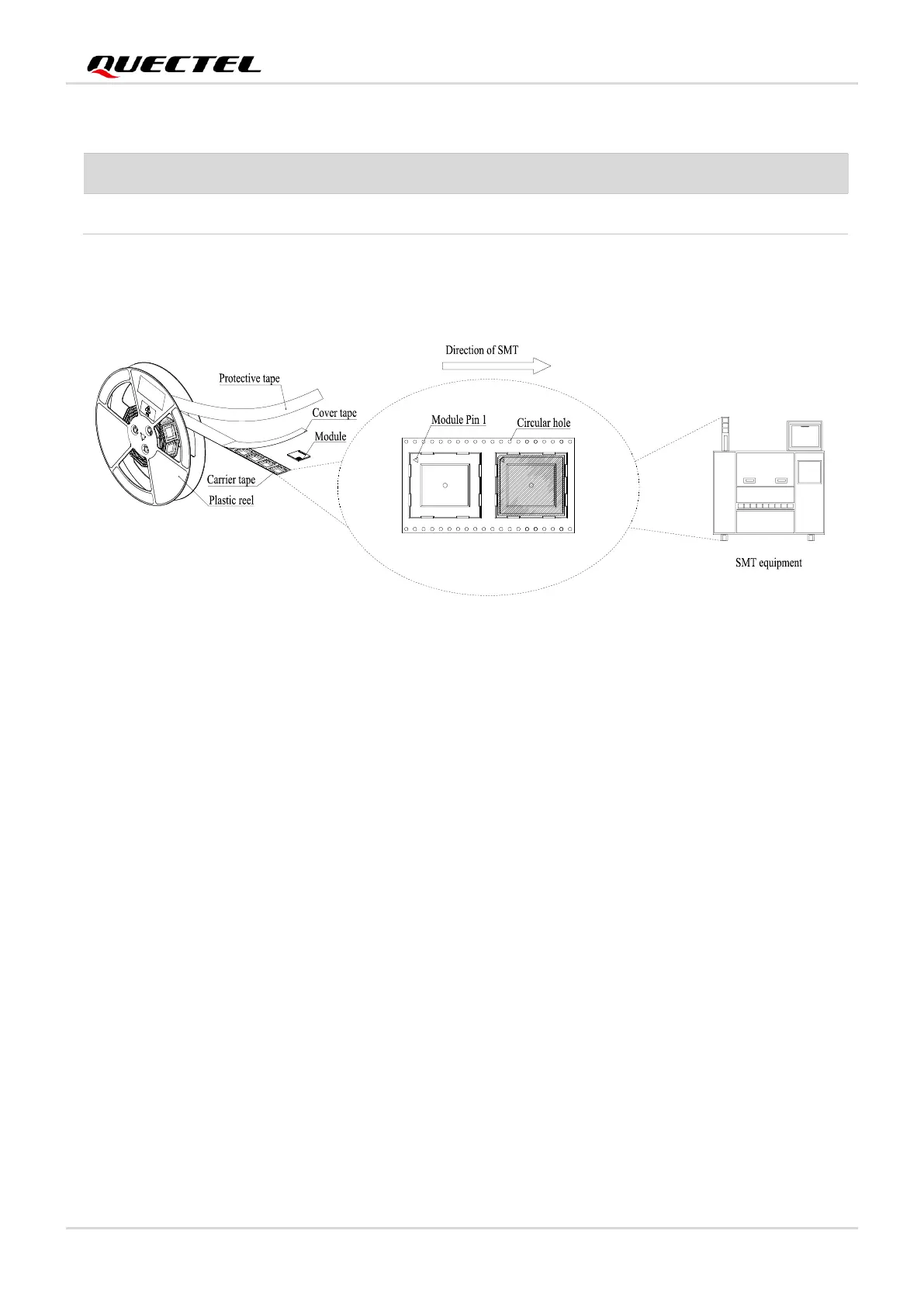

Figure 55: Mounting Direction
øD1
øD2
W
380
180
72.5
