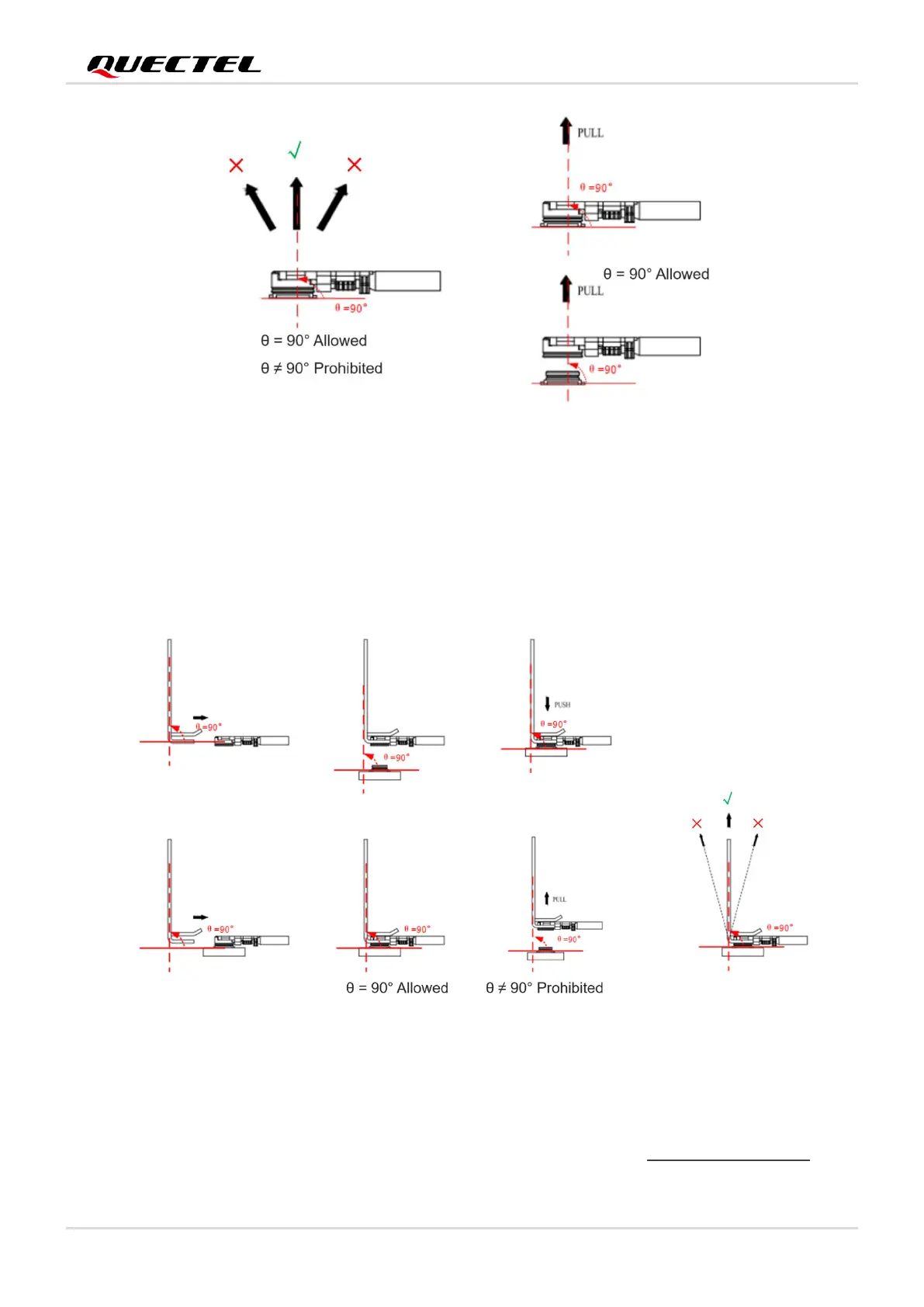

Figure 45: Pull out a Coaxial Cable Plug
5.5.1.2. Assemble Coaxial Cable Plug with Jig
The pictures of installing the coaxial cable plug with a jig is shown below, θ = 90° is acceptable, while θ ≠
90° is not.
Figure 46: Install the Coaxial Cable Plug with Jig
5.5.2. Recommended Manufacturers of RF Connector and Cable
RF connectors and cables by I-PEX are recommended. For more details, visit https://www.i-pex.com.
