Quickie puma 20 Technical Manual

Puma 20/40
Spare parts | 55
Electrical diagrams DX2 (2)

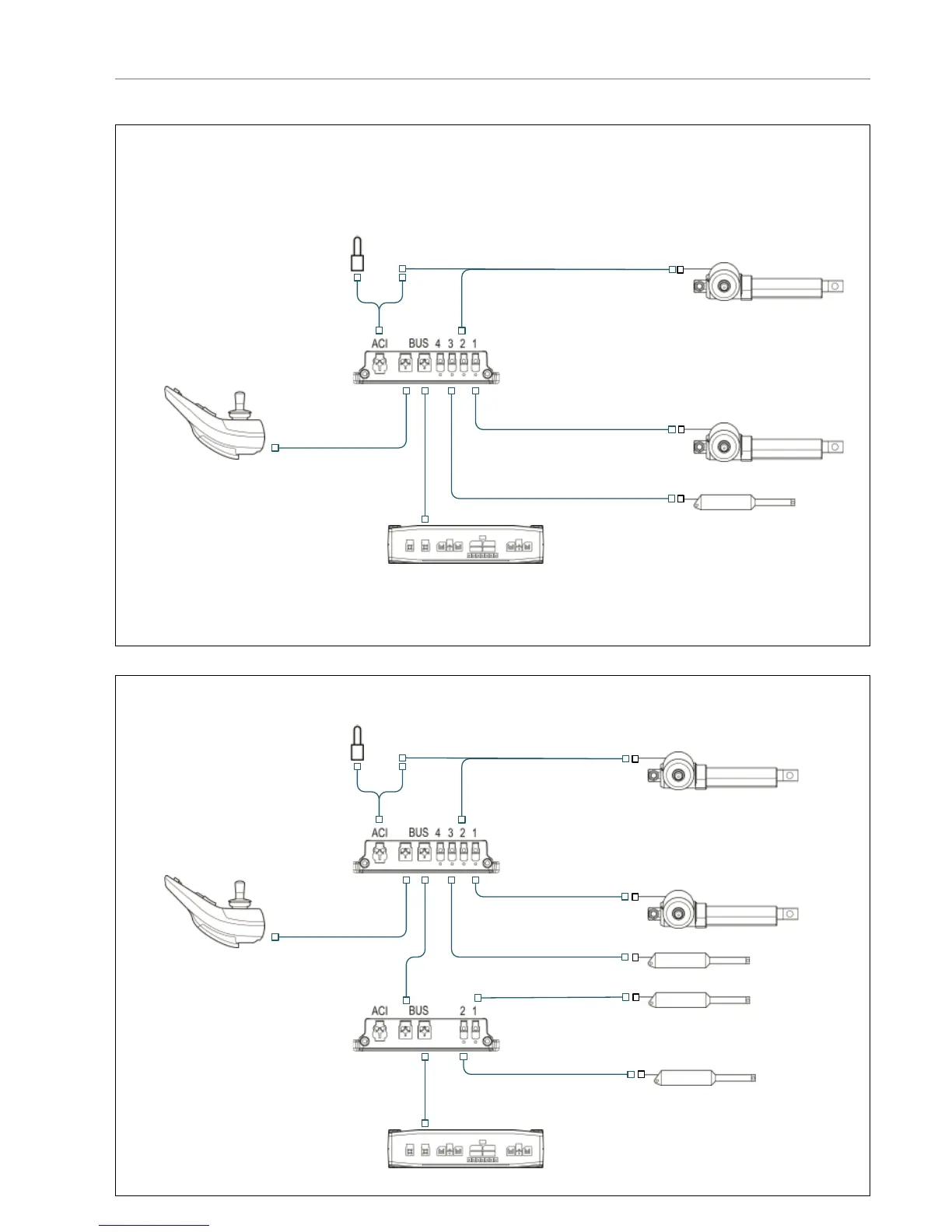

DX2 Lift, Tilt, Recline & Legrest (Lights optional)
Cable lenghts are not drawn to scale
DX2 4 Puma2040
00355.0018 (1.75m)
00355.0074 (2.7m)
No Lift: 00355.0024 (2.0 m)
Tilt
Recline
Lift
9007589
9006307
FB-Term
9007591
9006308
PM
JSM
9007576
00355.0025 (0.3m)
Legrest Left
9006307
Legrest Right
9006307
DX2 Lift, Tilt & Recline (Lights optional)
Cable lenghts are not drawn to scale
DX2 3 Puma2040
00355.0018 (1.75m)
00355.0074 (2.7m)
No Lift: 00355.0024 (2.0m)
Tilt
Recline
Lift
9007589
9006307
FB-Term
9007591
9007590
PM
JSM
9007576
