Quickie puma 20 Technical Manual

Puma 20/4056 | Spare parts

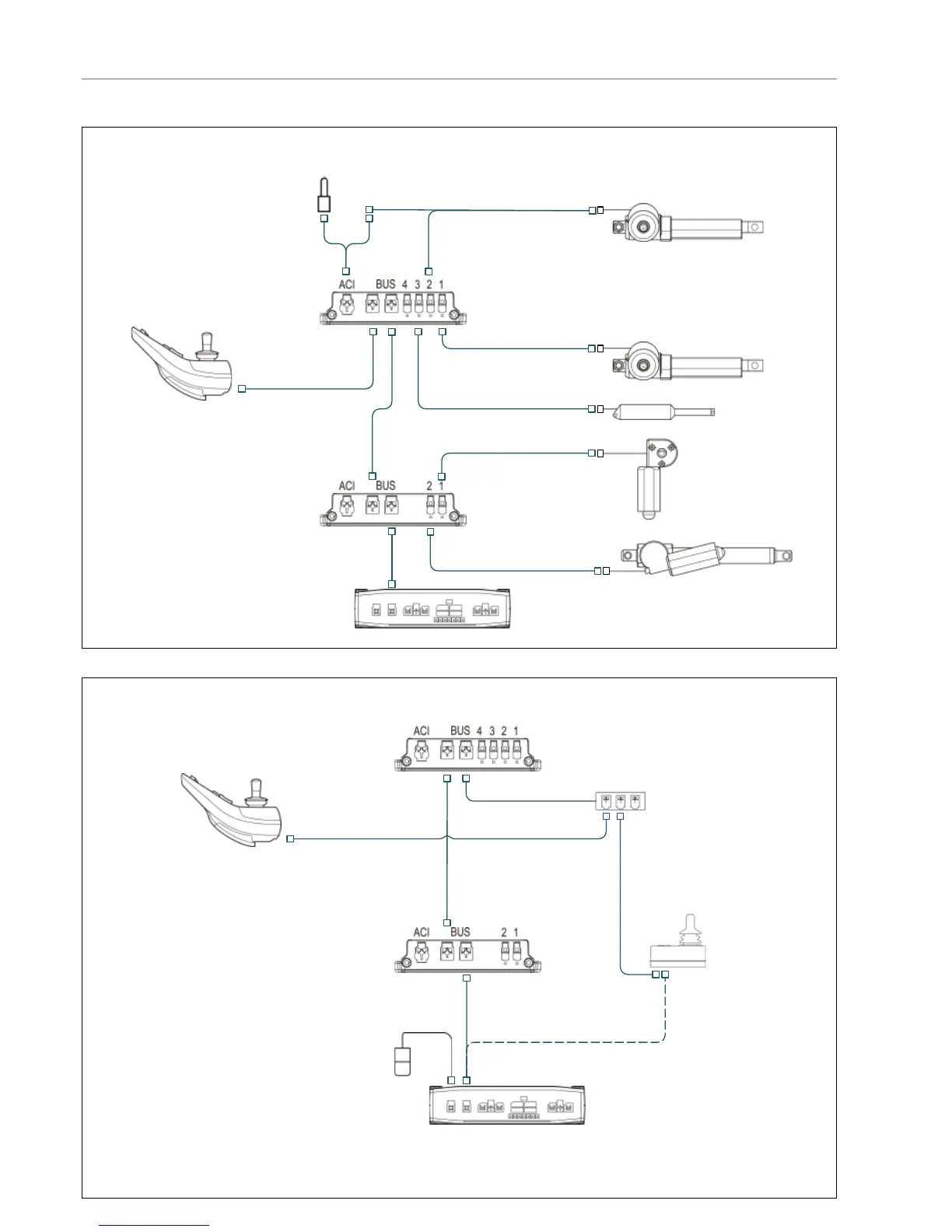

Electrical diagrams DX2 (3)
3-Way
DX2 with Gyro Module and/or Attendant Remote (Lights optional)
Cable lenghts are not drawn to scale
DX2 6 Puma2040
00355.0018 (1.75m)
00355.0074 (2.7m)
PM
JSM
00355.0025 (0.3m)
Gyro
00355.0074 (2.7m)
ACU
00355.0023 (1.0M)
(Drive only)
Foot Plate
Elevation
DX2 Lift, Tilt, Recline & Cen tral Legrest (Lights optional)
Cable lenghts are not drawn to scale
DX2 5 Puma2040
00355.0018 (1.75m)
00355.0074 (2.7m)
No Lift: 00355.00 24 (2.0 m)
Tilt
Recline
Lift
9007589
9006307
FB-Term
9007591
9006308
PM
JSM
9007576
00355.0025 (0.3m)
9006307
Legrest Angle
9006307
