MultiRAE User’s Guide
13

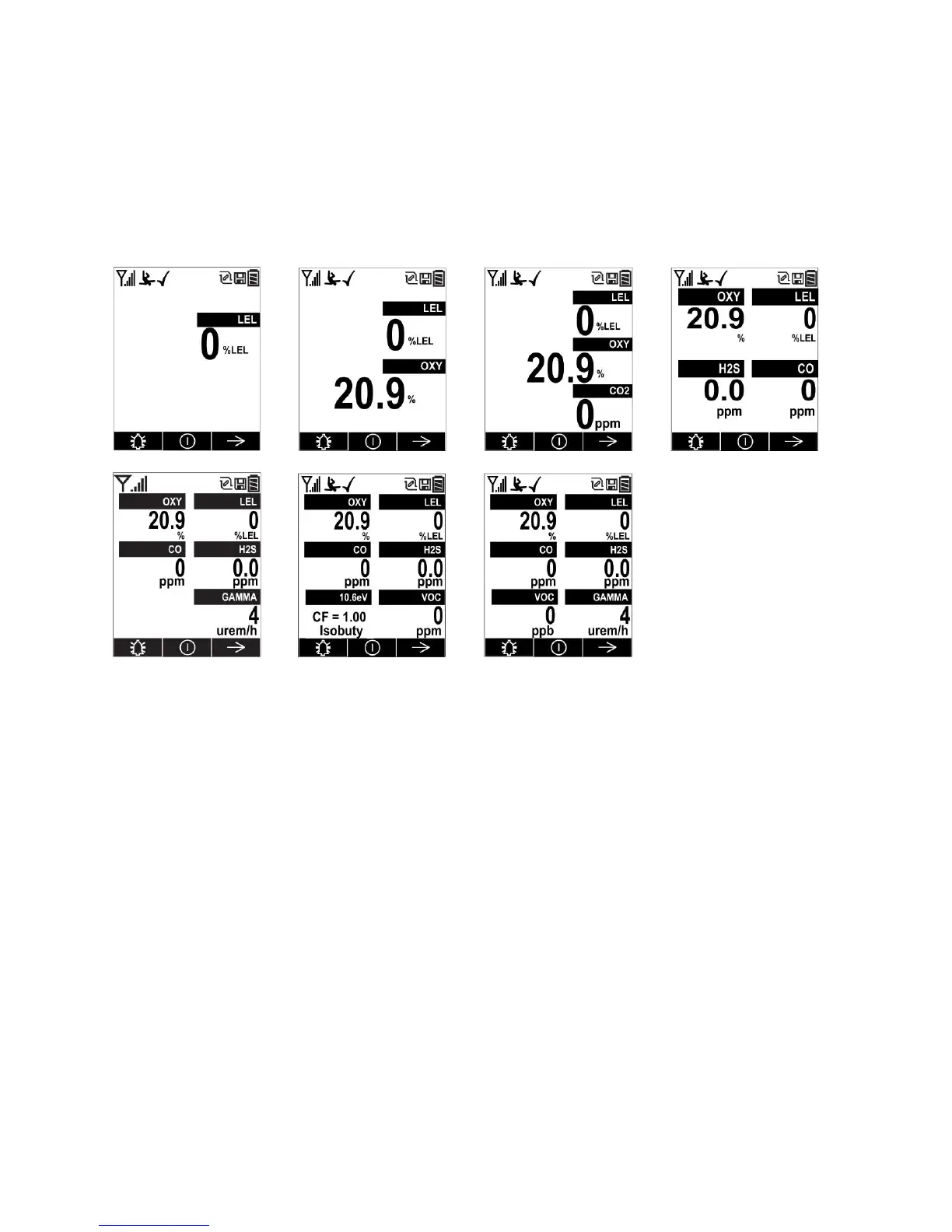

3.2 Screen Display For Various Numbers Of Active Sensors
The MultiRAE family of instruments can display readings from one to six sensors (including dual
sensors), depending on the configuration. In order to maximize readability and the amount of information
shown, the display is automatically reconfigured, according to the number and types of sensors in the
MultiRAE.
If the configuration includes five sensors, and one of them is a PID, then the lamp value (9.8eV or
10.6eV) is shown, along with the currently applied correction factor (CF) and measurement gas.
One sensor.
Two sensors.
Three sensors.
Four sensors.
Five sensors,
including Gamma
radiation sensor.
Five sensors,
including PID,
showing lamp type,
correction factor, and
measurement gas.
Six-sensor
configuration with
CO+H
2
S combo
sensor.
