Operating Concepts
R&S
®
NRPxxS(N)
40User Manual 1177.5079.02 ─ 10
b) Press the [ZERO] hardkey of the R&S NRP2.

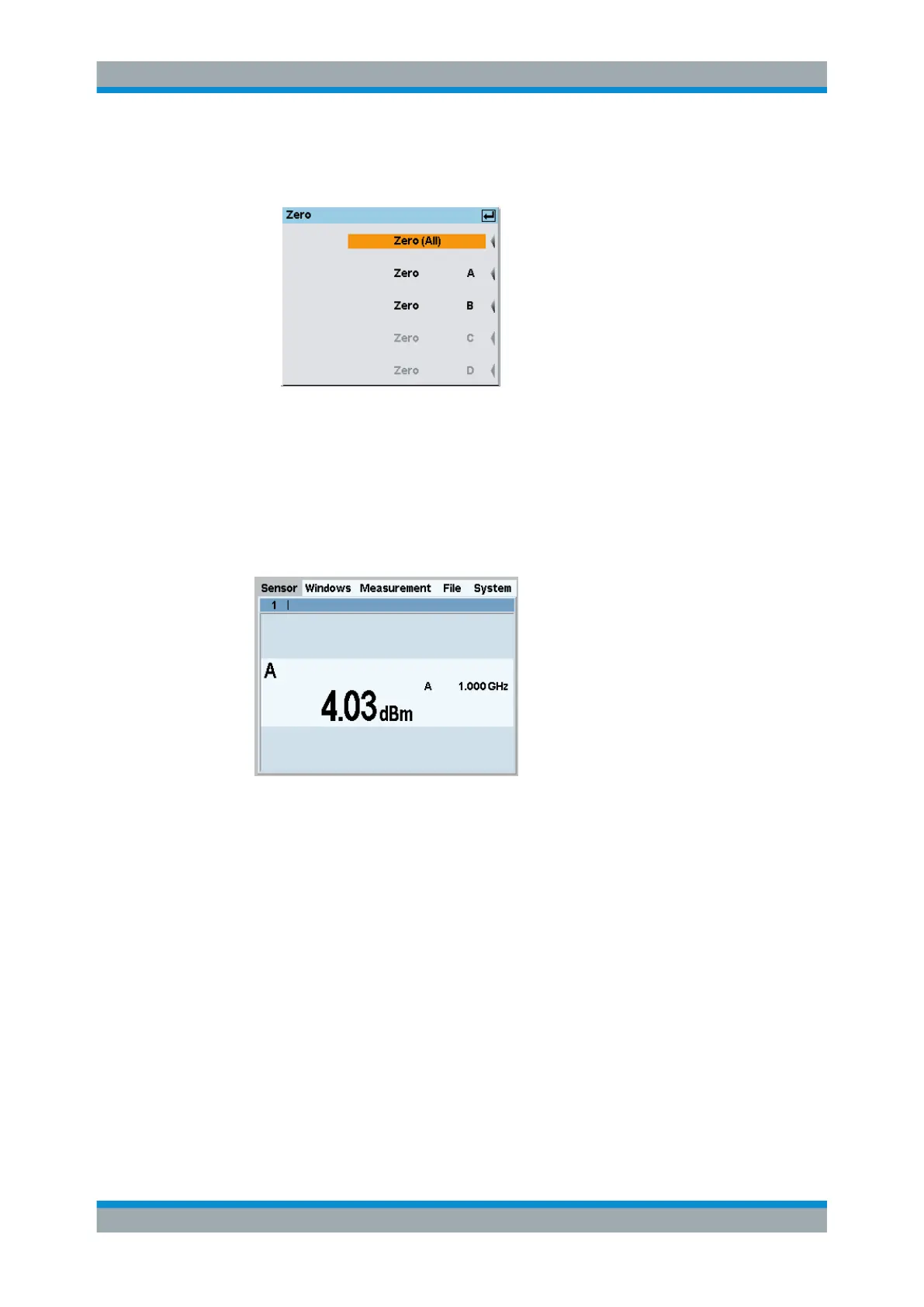

The "Zero" dialog box is displayed.
c) Press the [ZERO] hardkey again to perform zeroing of all connected sensor
channels ("Zero (All)") or press the appropriate softkey to select a specific sen-
sor for zeroing.
4. Press the [FREQ] hardkey and enter the carrier frequency of the applied signal if
the specified measurement accuracy is to be reached.
5. Switch on the signal source.
The result window indicates the result (in dBm) obtained with sensor A.
6. If necessary, perform further settings.
For a detailed description of how to measure in this setup, refer to the operating man-
ual of your R&S NRP2.
