Remote Control Commands
R&S
®
NRPxxS(N)
116User Manual 1177.5079.02 ─ 10
User Interface of the S-Parameters Tool

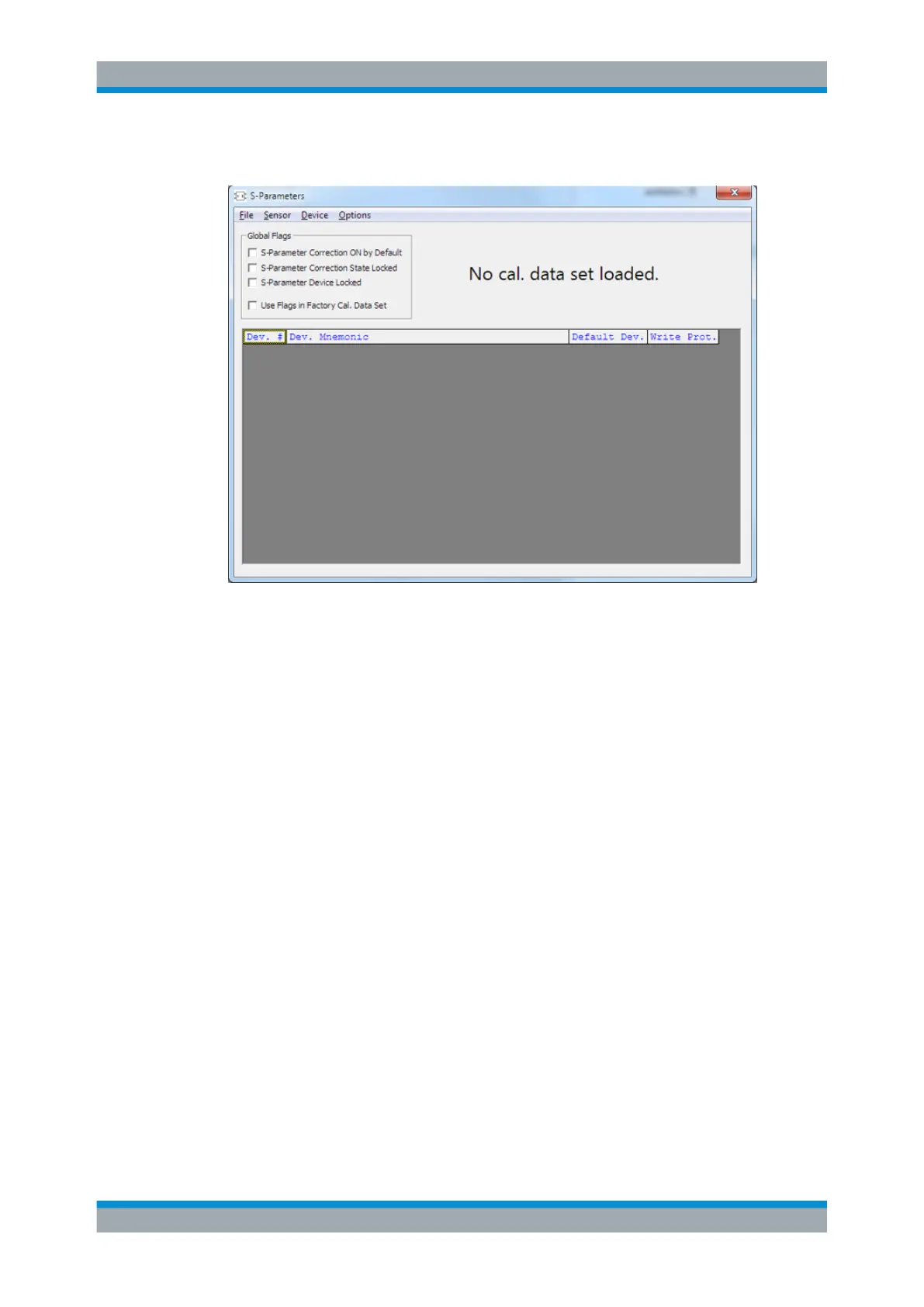

Figure 9-10: S-Parameters dialog
Menu bar..................................................................................................................... 116
└ File................................................................................................................ 116
└ Sensor...........................................................................................................117
└ Device........................................................................................................... 117
└ Options..........................................................................................................117
└ User Data............................................................................................117
└ Remote............................................................................................... 117
└ Show Cal. Data...................................................................................117
Global Flags................................................................................................................ 118
└ S-Parameter Correction ON by Default.........................................................118
└ S-Parameter Correction State Locked.......................................................... 118
└ S-Parameter Device Locked......................................................................... 118
└ Use Flags in Factory Cal. Data Set...............................................................119
Device table.................................................................................................................119
Menu bar
Contains the following submenus.
File ← Menu bar
Provides options for loading and saving calibration data files, see:
●
"To change the S-parameter data" on page 121
●
"To load an uncertainty parameter file" on page 122
