Example: Average count = 1
[SENSe<Sensor>:]AVERage:COUNt 1
For average count 1, the setting of the termination control has no impact. In both
cases, the measurement runs for the duration of one aperture time. Then, settled data
are available, and the power sensor returns to the idle state.
5
3
4
2
1

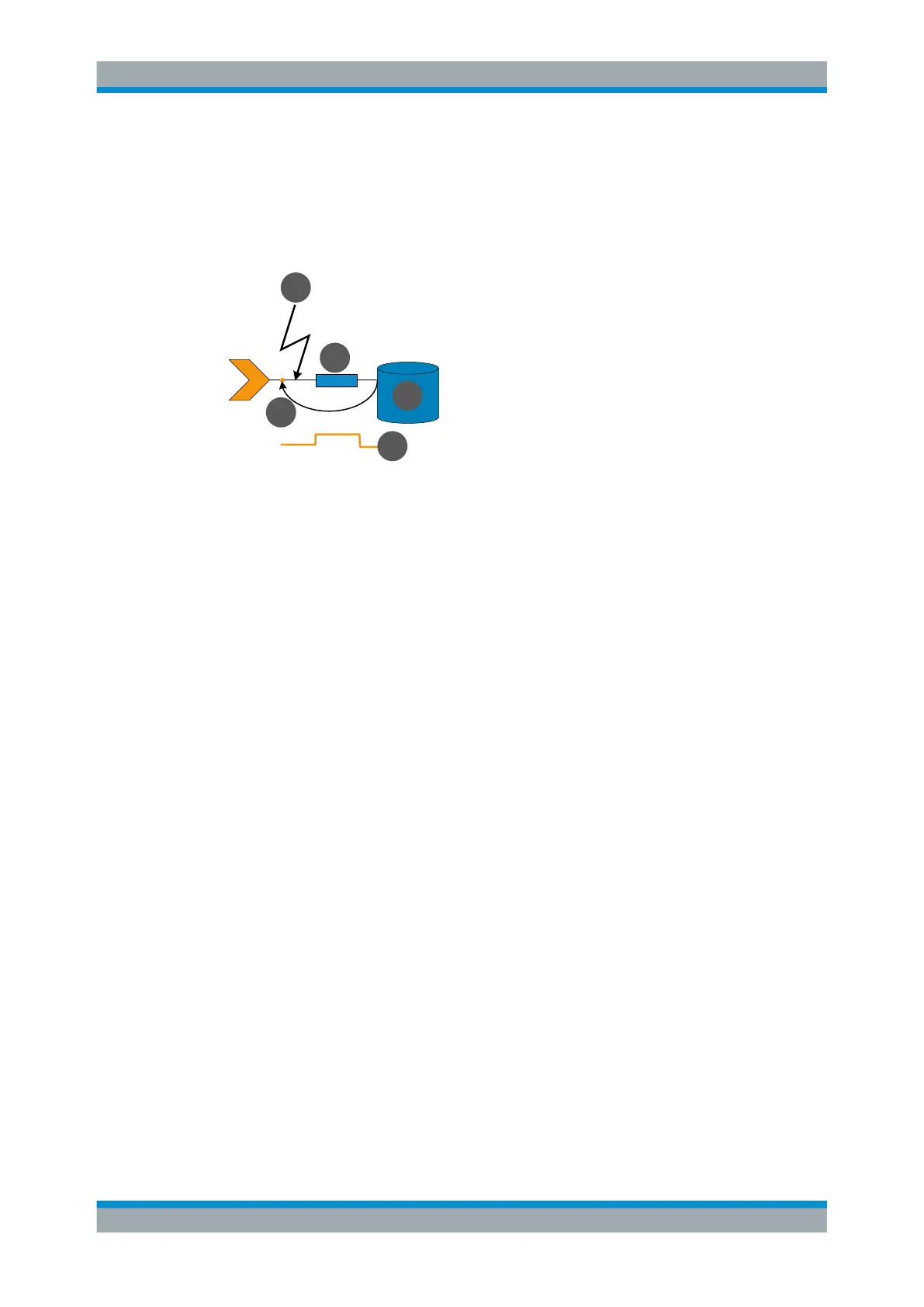

1 = Trigger event
2 = Noninverted chopper phase
3 = Measurement result
4 = Trigger synchronization
5 = Return to idle state
9.5.5 Configuring the Trigger
Further information:
●
Chapter 9.5, "Controlling the Measurement", on page 72
Remote commands:
TRIGger:ATRigger:DELay.................................................................................................82
TRIGger:ATRigger:EXECuted?..........................................................................................82
TRIGger:ATRigger:STATe................................................................................................. 82
TRIGger:COUNt.............................................................................................................. 82
TRIGger:DELay............................................................................................................... 83
TRIGger:DELay:AUTO..................................................................................................... 83
TRIGger:DTIMe............................................................................................................... 83
TRIGger:EXTernal<2...2>:IMPedance................................................................................ 83
TRIGger:HOLDoff............................................................................................................ 84
TRIGger:HYSTeresis........................................................................................................84
TRIGger:IMMediate..........................................................................................................84
TRIGger:LEVel................................................................................................................ 85
TRIGger:LEVel:UNIT........................................................................................................ 85
TRIGger:MASTer:PORT....................................................................................................85
TRIGger:MASTer:STATe................................................................................................... 86
TRIGger:SLOPe.............................................................................................................. 86
TRIGger:SOURce............................................................................................................ 86
TRIGger:SYNC:PORT......................................................................................................86
TRIGger:SYNC:STATe......................................................................................................87
