11.3 Status Reporting System
The status reporting system stores all information on the current operating state of the
power sensor, and on errors which have occurred. This information is stored in the sta-
tus registers and in the error queue. You can query both with the commands of the
STATus subsystem.
11.3.1 Hierarchy of the Status Registers

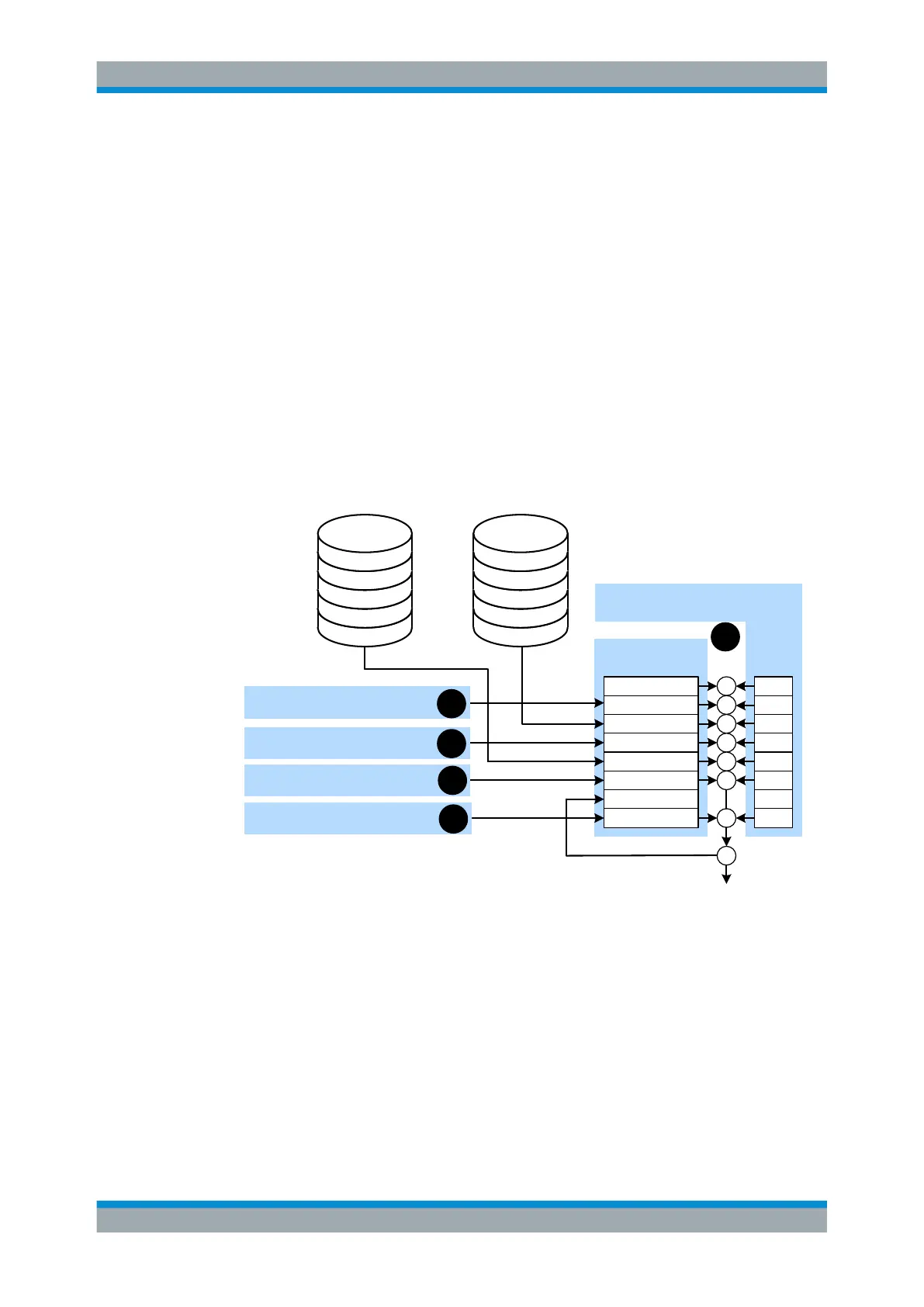

Fig.11-1 shows the hierarchical structure of information in the status registers.
Output queue
Error/event queue
&
&
&
&
&
&
+
&
Status byte
Service request
to controller at
transition from 0 to 1
1
0
2
3
4
5
x
7
1
0
2
3
MAV
ESB
RQS/MSS
7
Service request enable
Operation status
Standard event status
Questionable status
Device status
1
2
3
4
5
Figure 11-1: Status registers overview
1 = Chapter 11.3.3, "Status Byte (STB) and Service Request Enable Register (SRE)", on page 164
2 = Chapter 11.3.5, "Device Status Register", on page 166
3 = Chapter 11.3.6, "Questionable Status Register", on page 168
4 = Chapter 11.3.7, "Standard Event Status and Enable Register (ESR, ESE)", on page 169
5 = Chapter 11.3.8, "Operation Status Register", on page 170
