6 Browser-Based User Interface
The web user interface is an alternative way to operate an R&S NRPxxSN LAN power
sensor.
This chapter provides a description of the parameters used for setting a power mea-
surement with the web user interface.
For a detailed description of how to connect the sensor to a device and start the web
user interface, refer to Chapter 5.2, "Browser-Based User Interface", on page 30.
6.1 Main Dialog of the Web User Interface

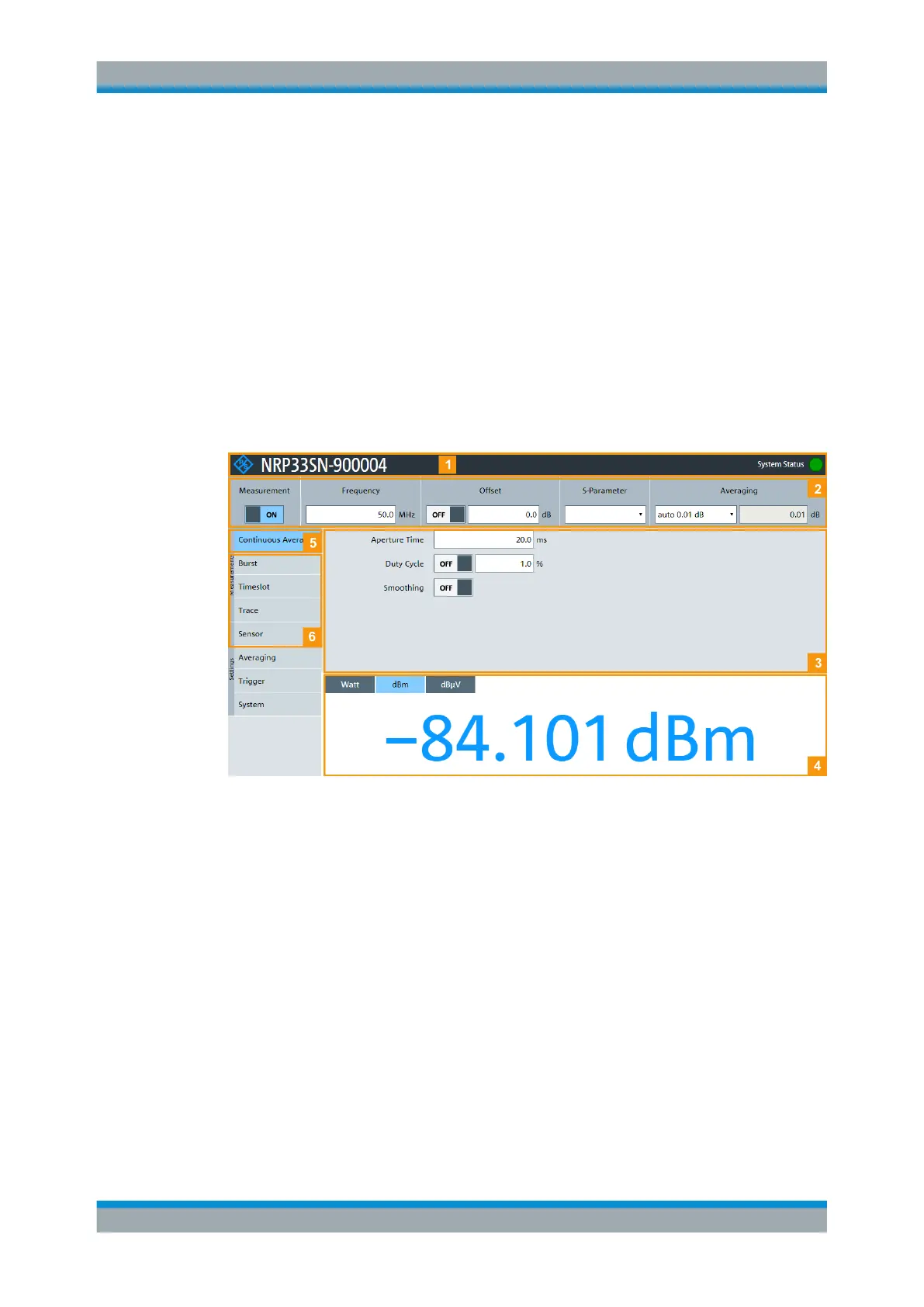

Figure 6-1: Explanation of the web user interface
1 = Title bar
2 = Common settings, see Chapter 6.3, "Common Settings", on page 43
3 = Parameters pane
4 = Result pane
5 = Navigation pane - "Measurements", see Chapter 6.4, "Measurement Modes", on page 44
6 = Navigation pane - "Settings", see Chapter 6.5, "Settings", on page 48
The title bar shows the following information:
●
Hostname, see also Chapter 3.5.2.3, "Using Hostnames", on page 20.
●
System status, see also Chapter 4.4, "Status LED", on page 25.
The parameters pane displays the content selected in the navigation pane.
The result pane displays the measurement result for the selected measurement mode.
It can display only a value or a graph, depending on the selected measurement mode.
Main Dialog of the Web User Interface
