Remote Control Commands
R&S
®
NRPxxS(N)
115User Manual 1177.5079.02 ─ 10
Parameters:
<magnitude> 0.0 ≙ ideal matched source
1.0 ≙ total reflection
Range: 0.0 to 1.0
*RST: 0.0
Manual operation: See "Magnitude" on page 49
[SENSe<Sensor>:]SGAMma:PHASe <phase>
Sets the phase angle of the complex reflection coefficient of the source, Γ
source
.
Parameters:
<phase> Range: -360.0 to 360.0
*RST: 0.0
Manual operation: See "Phase" on page 50
9.8.4.5
Using the S-Parameters Tool
The S-Parameters tool helps loading an S-parameter table into the power sensor. The
S-Parameters tool is part of the R&S NRP Toolkit, see Chapter 5.1, "R&S NRP Toolkit",
on page 27.
To start the S-Parameters tool

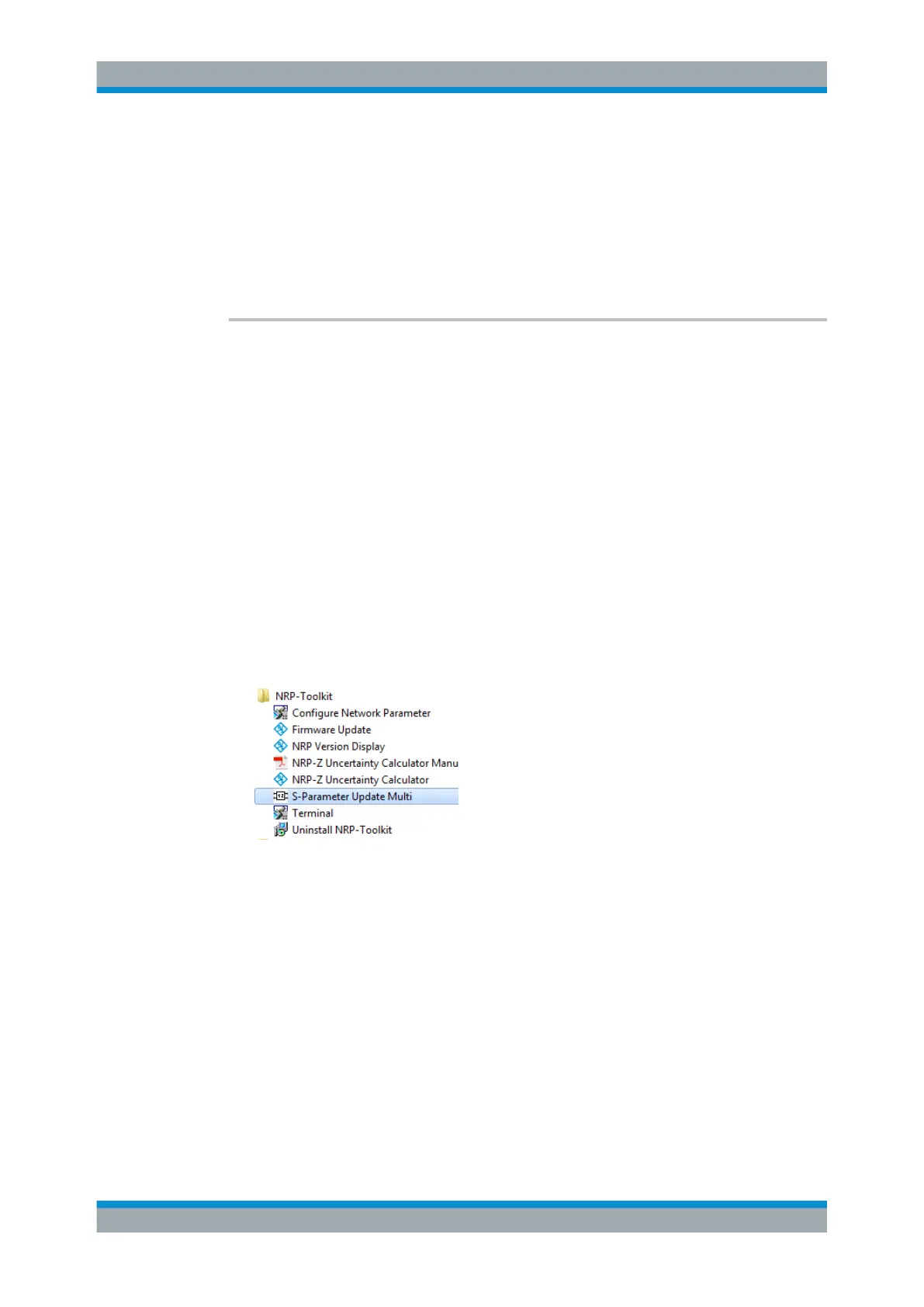

► In the Windows start menu, select "NRP Toolkit" > "S-Parameter Update Multi".
Configuring Basic Measurement Parameters
