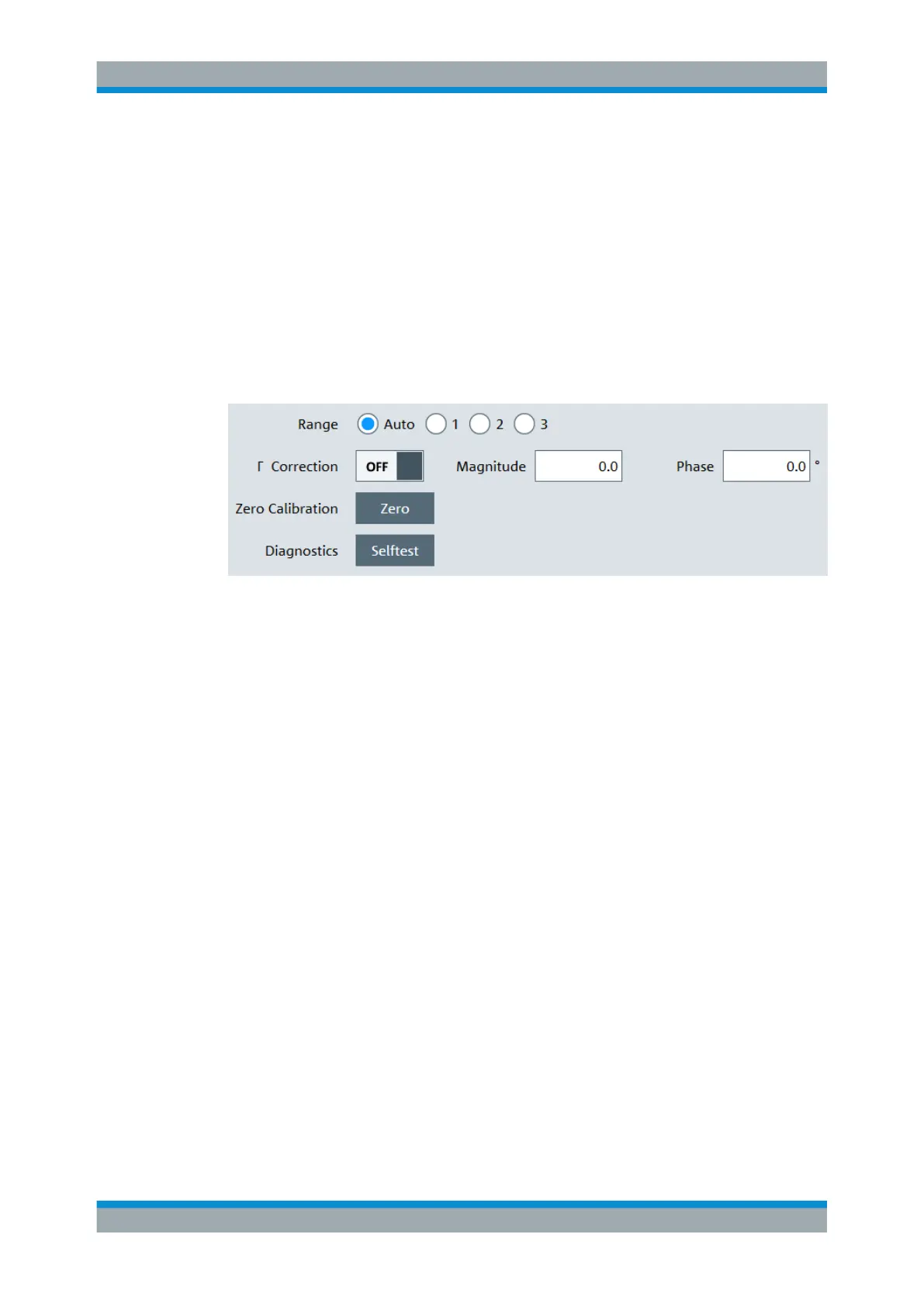

6.5.1 Sensor Settings
Describes the parameters for optimizing the measurement results for specific measure-
ment requirements.
Further information:
●
Chapter 9.4.2, "Selecting a Measurement Path", on page 70
●
Chapter 9.8.4, "Configuring Corrections", on page 110
●
Chapter 9.9, "Calibrating/Zeroing the Power Sensor ", on page 125
●
Chapter 9.10, "Testing the Power Sensor", on page 127
Access: main dialog of the web user interface > navigation pane > "Sensor"
Range............................................................................................................................49
Γ Correction...................................................................................................................49
└ <State>........................................................................................................... 49
└ Magnitude....................................................................................................... 49
└ Phase..............................................................................................................50
Zero Calibration.............................................................................................................50
Diagnostics....................................................................................................................50
Range
Selects which path of the sensor is used for the measurement.
Remote command:
[SENSe<Sensor>:]RANGe:AUTO on page 71
[SENSe<Sensor>:]RANGe on page 71
Γ Correction
Groups the parameters for the complex reflection coefficient. See also Chapter 9.8.4.4,
"S-Gamma Corrections", on page 113.
<State> ← Γ Correction
Enables or disables the use of the complex reflection coefficient of the signal source,
Γ
source
.
Remote command:
[SENSe<Sensor>:]SGAMma:CORRection:STATe on page 114
Magnitude ← Γ Correction
Sets the magnitude of the complex reflection coefficient of the source , Γ
source
.
