ASSEMBLING THE ACCUFLOW™ SYSTEM
COOLER BRACKET ASSEMBLY

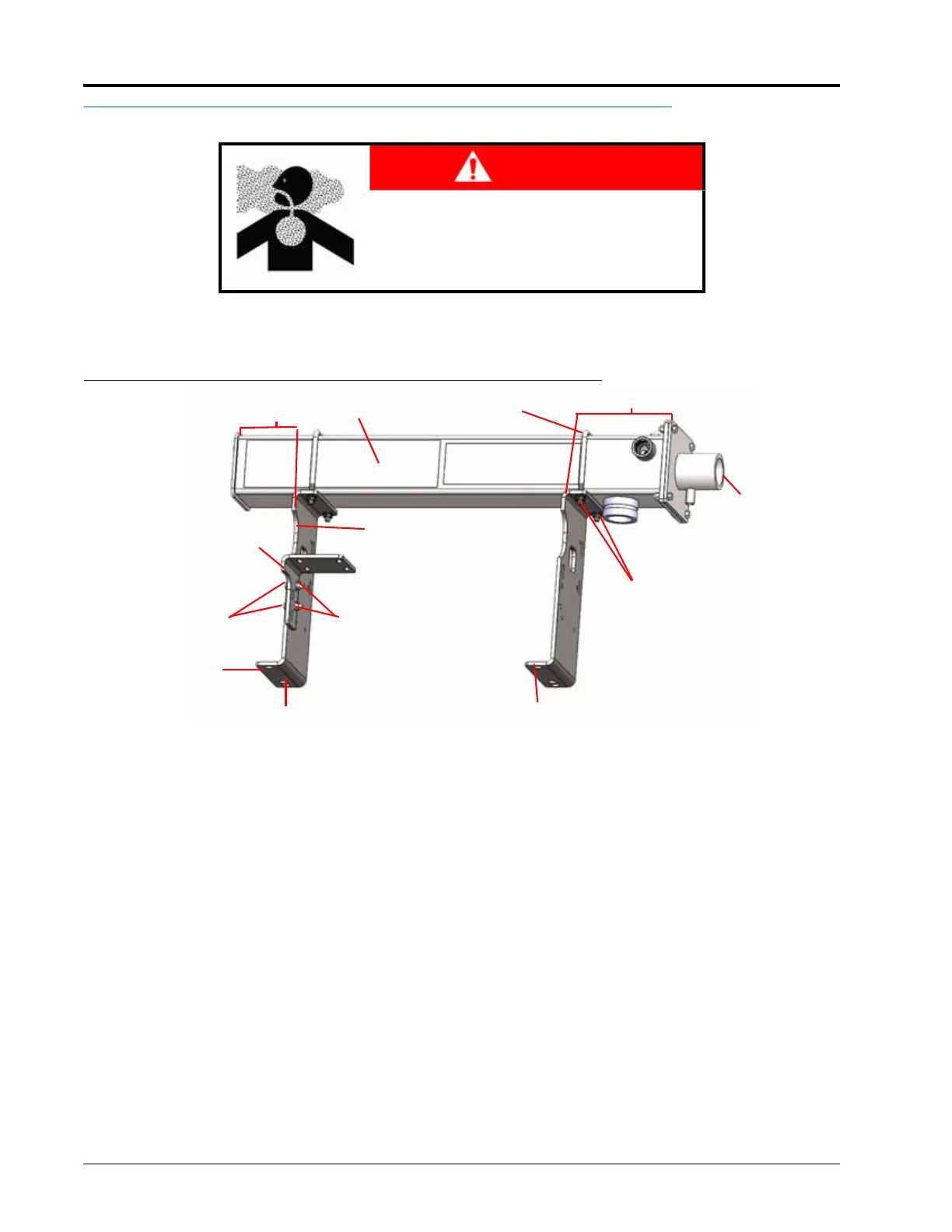

FIGURE 2. Cooler Bracket Assembly
1. Insert two 3/8” bolts through the two holes above the base lip and below the notch on the front edge of one of
the mounting brackets.
2. On the side of the mounting bracket opposite of the base lip, slide the pipe support bracket over the 3/8” bolts.
The flange of the pipe support mounting bracket should stick out in front of the mounting bracket
approximately 3.5”.
3. Loosely install the two 3/8” nuts that secure the pipe support bracket.
4. With the cooler positioned so the intake is on the right end of the cooler, place the mounting bracket and pipe
support assembly approximately 5-1/2” from the left end of the cooler with the base lip facing left.
5. Install the 7/16” u-bolt from the top of the cooler so the threaded portion of the U-bolt is through the two
holes on top of the mounting bracket.
6. Thread and secure the 7/16” nuts to the threaded ends of the 7/16” u-bolt.
7. Place the second mounting bracket assembly approximately 7” from the right end of the cooler with the base
lip facing left.
8. Install the 7/16” u-bolt from the top of the cooler so the threaded portion of the u-bolt is through the two holes
on top of the mounting bracket.
9. Secure the two 7/16” nuts to the threaded ends of the 7/16” u-bolt.
10. Torque the 7/16” nuts to 28.5 ft-lbs.
DANGER
Anhydrous ammonia in vapor form can cause
serious injury or death. Pipe joints must be
properly sealed with PTFE pipe thread sealant, or
an equivalent thread sealant, to prevent leaks.
Cooler
Mounting Bracket
Mounting Bracket
7/16” U-Bolt
7/16” Nuts
Pipe Support
Bracket
3/8” Bolts
3/8” Nuts
Mounting Bracket
Notch
Base Lip
5-1/2”
7”
Inlet
