AccuFlow™ Vortex and AccuFlow™ HP+ Installation: 1.5” Gauge Tree and Valve Assembly 23
ACCUFLOW™ VORTEX AND ACCUFLOW™ HP+ INSTALLATION
CHECK VALVE ASSEMBLY (FOR MULTIPLE SECTION VALVES ONLY)

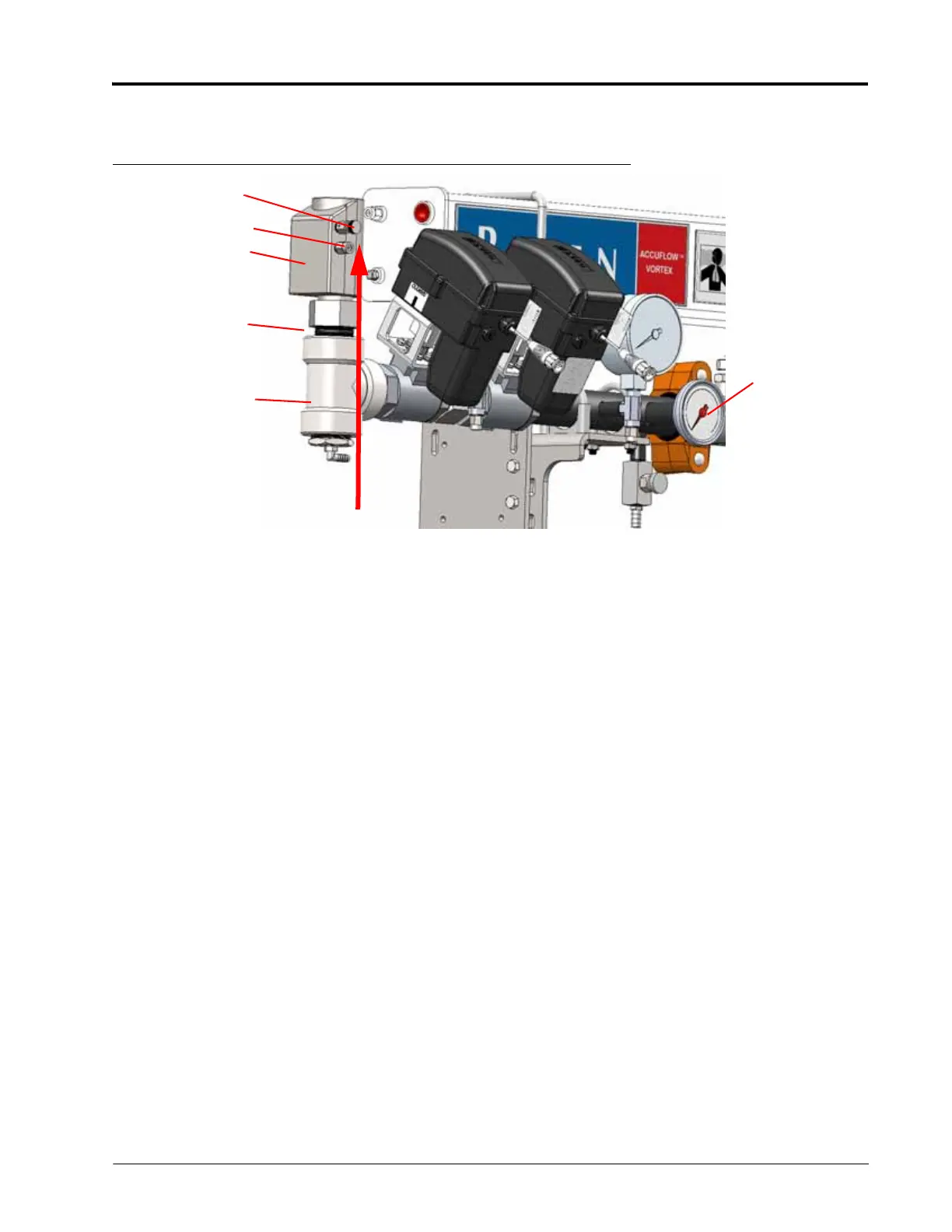

FIGURE 9. Check Valve Assembly
1. Apply PTFE thread sealant to all threaded joints.
2. Install the pipe nipple into the top of the fitting tee.
3. Attach the check valve to the pipe nipple with the flow direction as shown in Figure 9.
NOTE: Refer to the spare parts list in Chapter 8, System Diagram and Replacement Parts for a list of
replacement parts.
Pipe Nipple
Check Valve
Fitting Tee
Gauge Tree
1/4” Bleed Valve
Flow Direction
Relief Valve
To Next Page
