AccuFlow™ HP+ Calibration and Operation: Programming HP+ Rate Control - Viper Pro 53
ACCUFLOW™ HP+ CALIBRATION AND OPERATION
• Valve cal = 13; Valve cal2 = 323.
• Target rate cal = User defined.
• Rate bump = 25 LB/Acre
•PWM frequency = 122
•Min Pw = 45
•Preset Pw = 45
•Max Pw = 255
• Low Supply = 20
• Max Press = 200
•NH
3
Config = 6
PROGRAMMING HP+ RATE CONTROL - VIPER PRO
1. Boom cal, meter cal, speed cal and rate cal are the same as AccuFlow Vortex. See chapter 4 to verify settings.
2. To setup the proper HP+ application mode, from ‘CAN Controller Status’ screen, press ‘Application’ box.

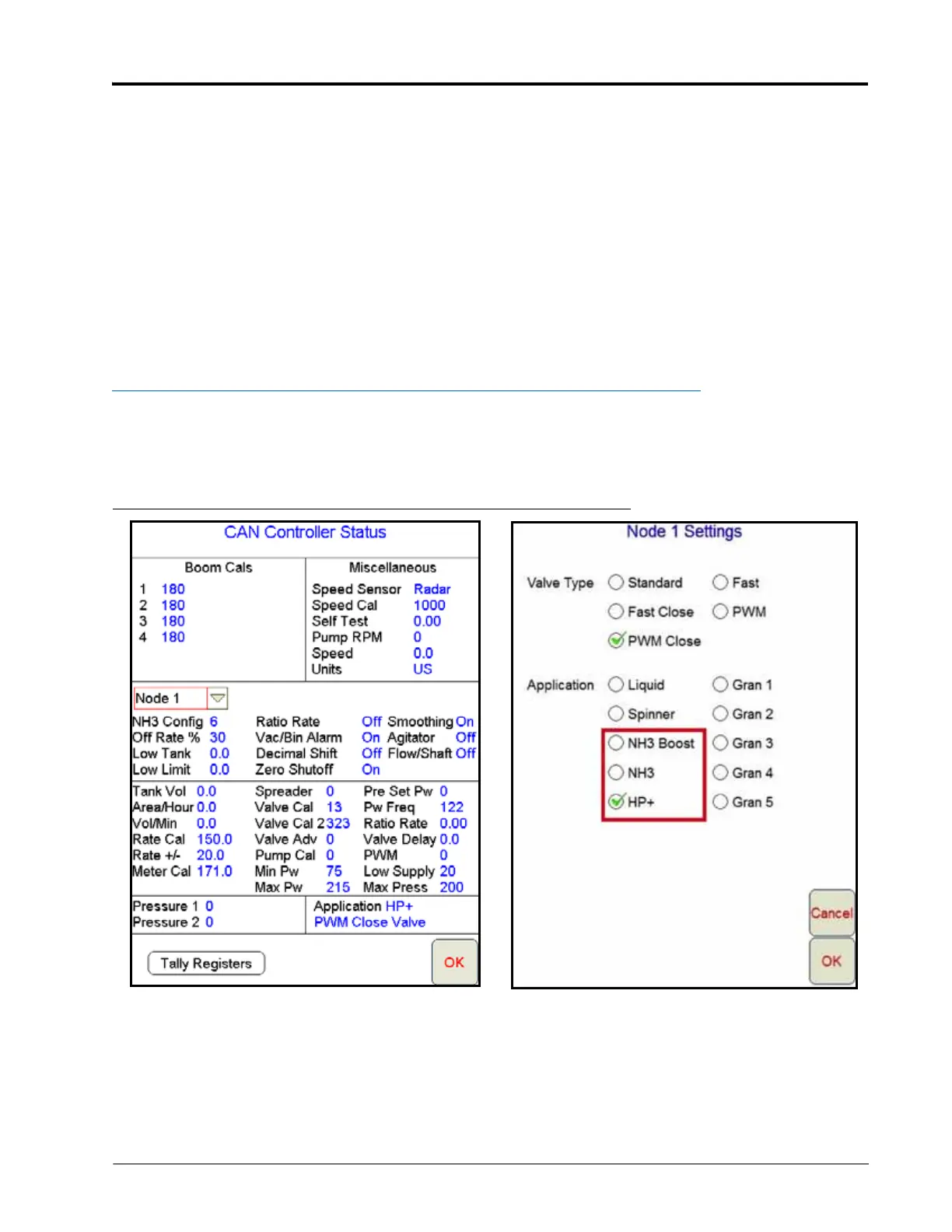

FIGURE 1. CAN Controller Status Settings and Node 1 Settings
3. In ‘Node 1 Settings’ screen, select ‘HP+’ and press ‘OK’.
4. The control node will auto select PWM Close Valve and setup the default values as shown below. Verify default
settings on 'CAN Controller Status' screen.
5. Raven section valves are equipped with status feedback. Viper Pro can display an error message identifying an
out of position section valve (stuck open or stuck closed). By changing the 'NH
3
Config' setting, this feature
along with the 'remote prox sensor' can be enabled or disabled.
