REFRIGERANT LINE ASSEMBLY

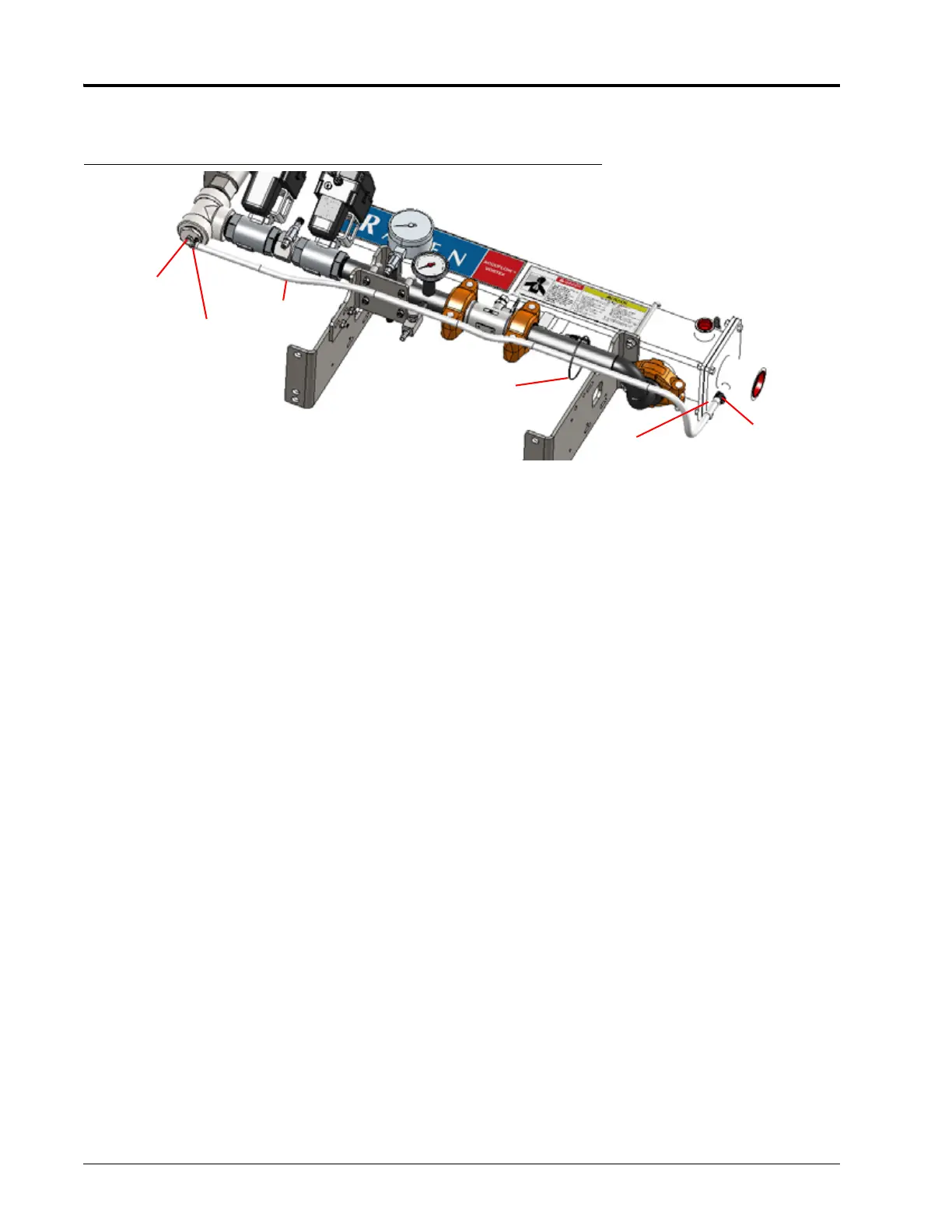

FIGURE 10. Refrigerant Line Assembly
1. Slide a hose clamp over one end of the refrigerant line.
2. Slide the refrigerant line over the 90° hose barb fitting.
3. Secure the hose clamp over the 90° hose barb fitting.
4. Slide a hose clamp over the other end of the refrigerant line.
5. Slide the refrigerant line over the straight hose barb fitting.
6. Secure the hose clamp over the straight hose barb fitting.
7. Secure the refrigerant line to the outlet manifold with a cable tie.
90° Hose Barb
Fitting
Straight Hose
Barb Fitting
Hose Clamp
Hose Clamp
Refrigerant
Line
Cable Tie
To Next Page
