AccuFlow™ Vortex and AccuFlow™ HP+ Installation: Assembling the AccuFlow™ System 19
ACCUFLOW™ VORTEX AND ACCUFLOW™ HP+ INSTALLATION
FLOW METER AND OUTLET MANIFOLD ASSEMBLY

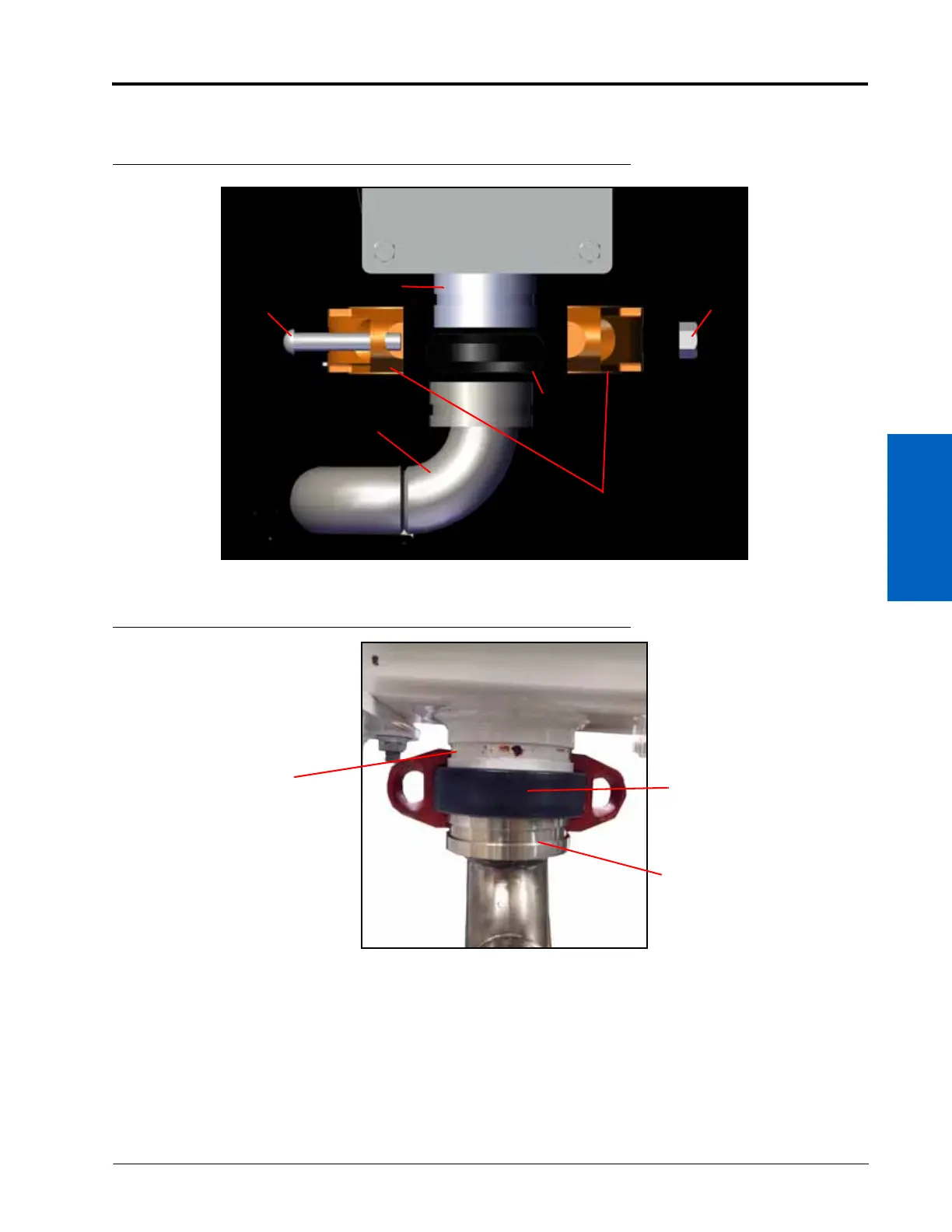

FIGURE 3. Outlet Manifold Assembly
FIGURE 4. Outlet Manifold Clamp Assembly
1. Slide the coupling gasket over the end of the outlet sticking out of the bottom of the cooler.
2. Slide the bent end outlet manifold into the coupling gasket.
3. Place the two parts of the coupling clamp over the coupling gasket so the bolt holes are above and below the
outlet manifold.
4. Using two 1/2” bolts and two 1/2” nuts to secure the coupling clamp to the cooler and the outlet manifold.
Tighten the 1/2” nuts to 80 to 100 ft-lbs.Slide the coupling gasket over the straight end of the outlet manifold.
1/2” Bolt
Coupling
Clamp
1/2” Nut
End of Cooler
Coupling
Gasket
Outlet
Outlet
Manifold
Coupling Gasket
Groove
Groove
To Next Page
