30 AccuFlow™ Vortex and AccuFlow™ HP+ Installation and Operation Manual
SINGLE INLET MANIFOLD ASSEMBLY

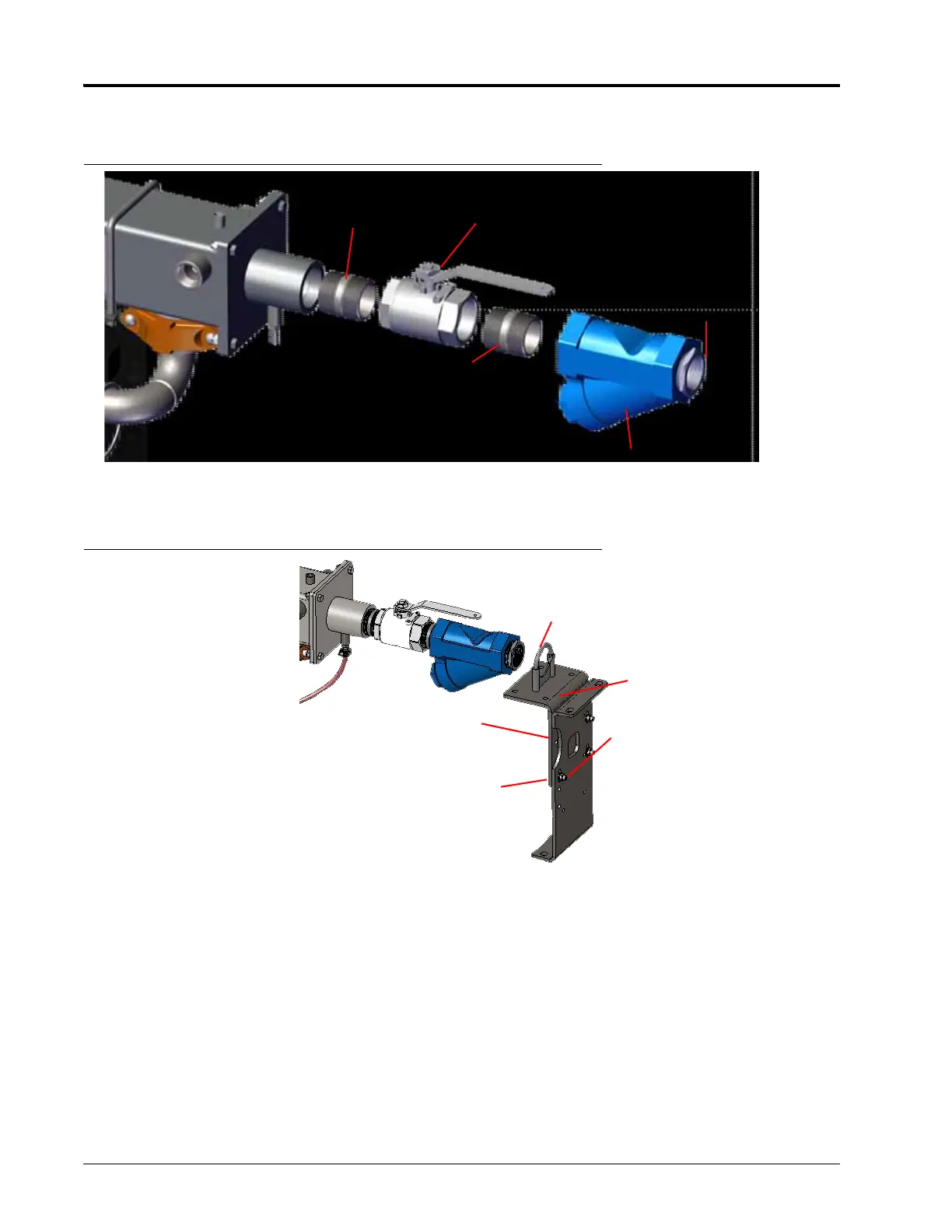

FIGURE 18. Single Inlet Manifold Assembly
SINGLE INLET MANIFOLD SUPPORT BRACKET INSTALLATION
FIGURE 19. Installed Single Inlet Manifold Support Bracket
1. Use two 3/8” bolts and 3/8” nuts to secure the mounting bracket to the inlet manifold support bracket.
2. Install the clamping u-bolt around the inlet manifold without installing the nuts.
3. Place the inlet manifold support bracket against the bottom of the inlet.
4. Feed the threaded ends of the u-bolts through the holes on the inlet manifold support bracket.
5. Install the nuts on the threaded ends of the u-bolt on the underside of the inlet manifold support bracket.
NOTE: Depending on location, the support bracket may need to be altered to support the inlet.
2” Pipe Nipple
Strainer
Valve Assembly
2” Pipe Nipple
Reducer
Bushing
Clamping U-Bolt
Inlet Manifold
Support Bracket
3/8” Bolt
3/8” Nut
Mounting
Bracket
