AccuFlow™ Vortex and AccuFlow™ HP+ Installation: Installing a HP+ System 31
ACCUFLOW™ VORTEX AND ACCUFLOW™ HP+ INSTALLATION
INSTALLING A HP+ SYSTEM

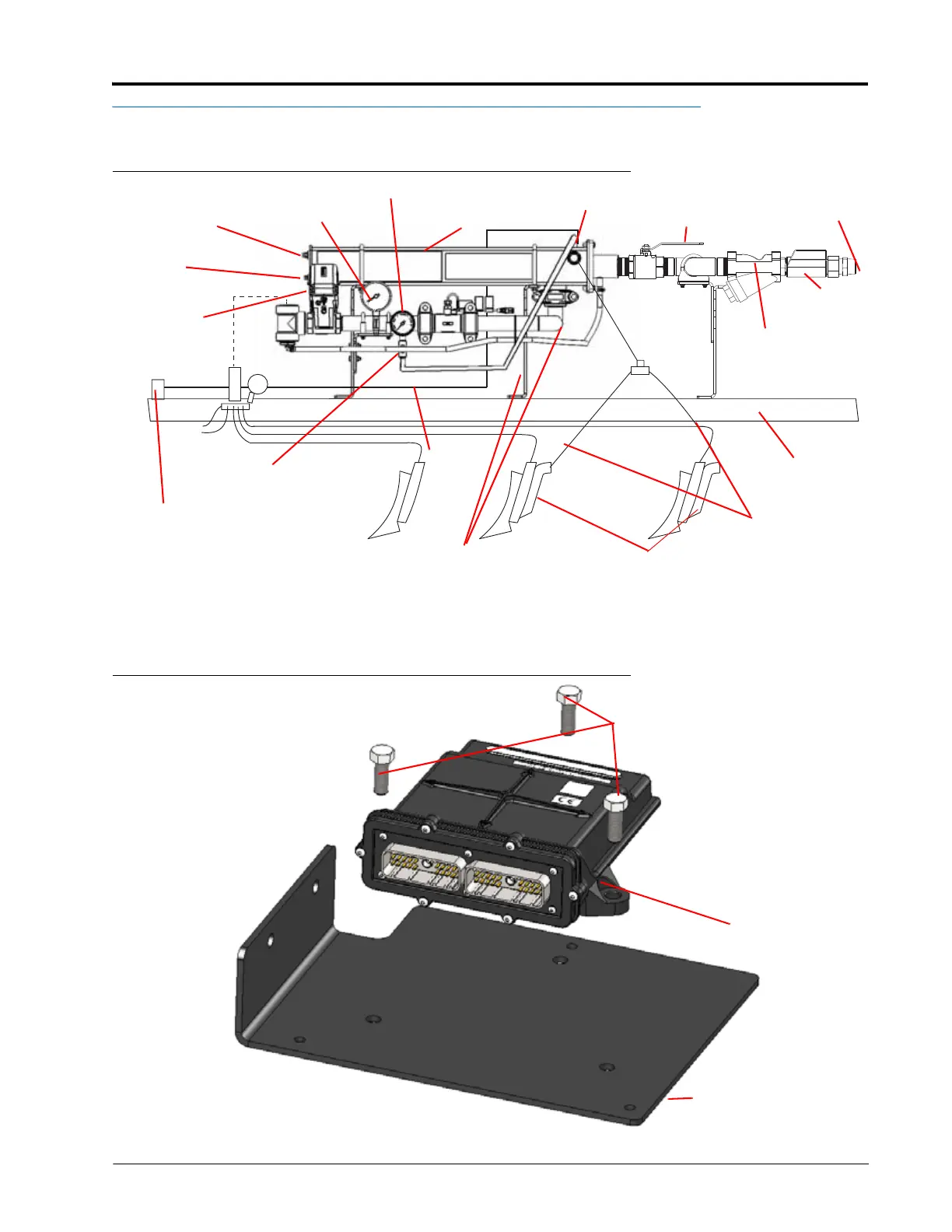

FIGURE 20. Typical AccuFlow HP+ System
INSTALLING CONTROL NODE: ACCUFLOW HP+
FIGURE 21. Installing Control Node to Mounting Plate
Primary Bleed
Valve
Secondary Bleed
Valve
Vapor Hose
Toolbar
Hose to
Breakaway
Bleed Circuit
Pressure Hose
Connection
Pressure
Gauge
Temperature Gauge
Vortex Cooler
Bleed Circuit Vapor
Hose Connection
Emergency Shut-Off Valve
HP+ Pump and
Hydraulic Valve
Steel Vapor Tubes
Strainer/
Magnet
Assemblies
Check Valve
Assemblies
Fast Valve
(Control Valve)
Pump Inlet
Pressure
Transducer
Bleed Line
Bolt
Control Node
Node Mounting
Bracket
