CHAPTER 3
32 AccuFlow™ Vortex and AccuFlow™ HP+ Installation and Operation Manual
1. Place the control node (sold separately) on the mounting plate so the edge of the control node with the
connections is flush with the flat side of the node mounting bracket. Refer to Figure 21.
2. Use three bolts and nuts to secure the control node to the mounting plate.
3. Use two bolts and nuts to secure the node mounting plate to the Vortex cooler support bracket (Figure 22).

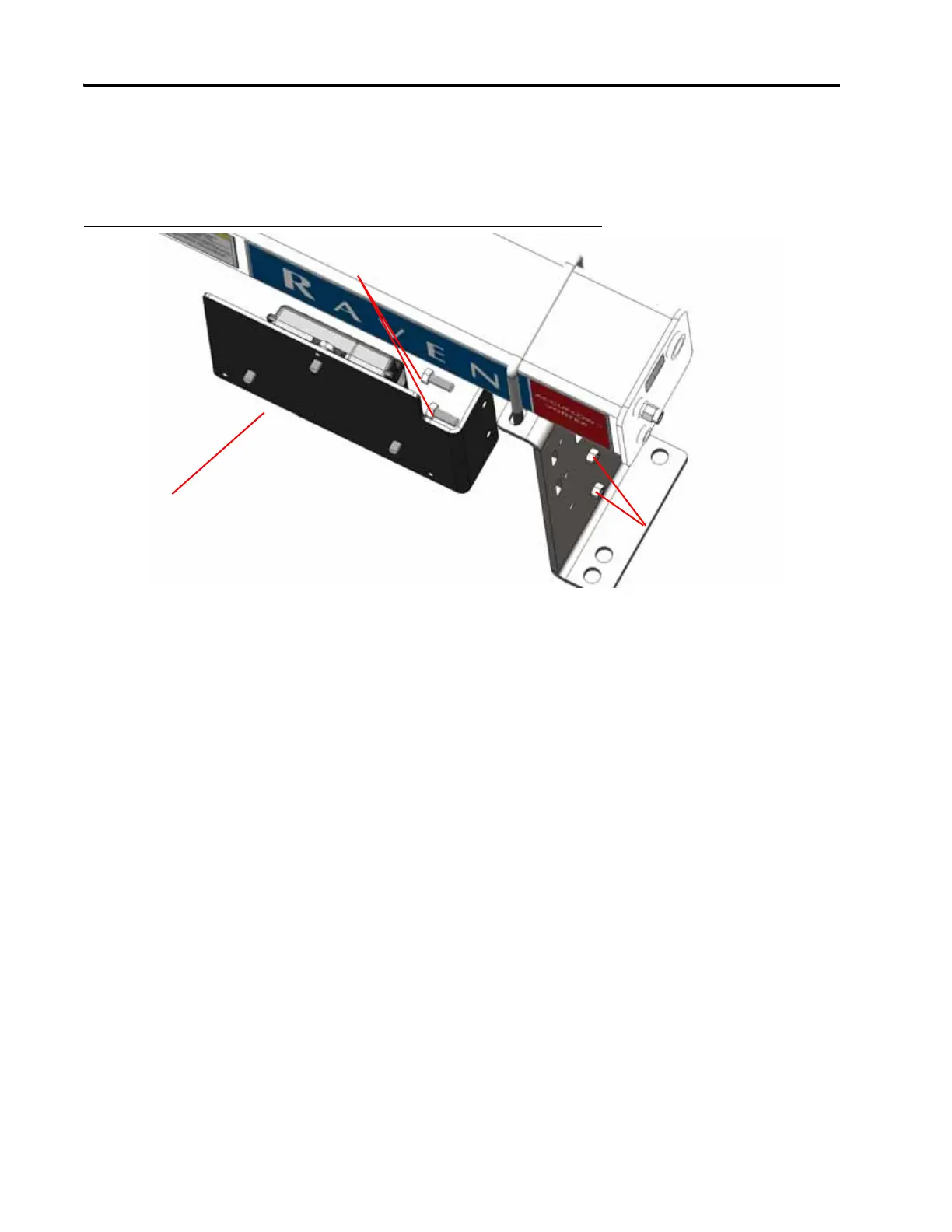

FIGURE 22. Installing Control Node/Mounting Plate to Vortex Cooler Bracket
Node On Mounting Plate
Bolt
Nut
