CHAPTER 3
22 AccuFlow™ Vortex and AccuFlow™ HP+ Installation and Operation Manual
ATTACHING THE GAUGE TREE TO THE COOLER

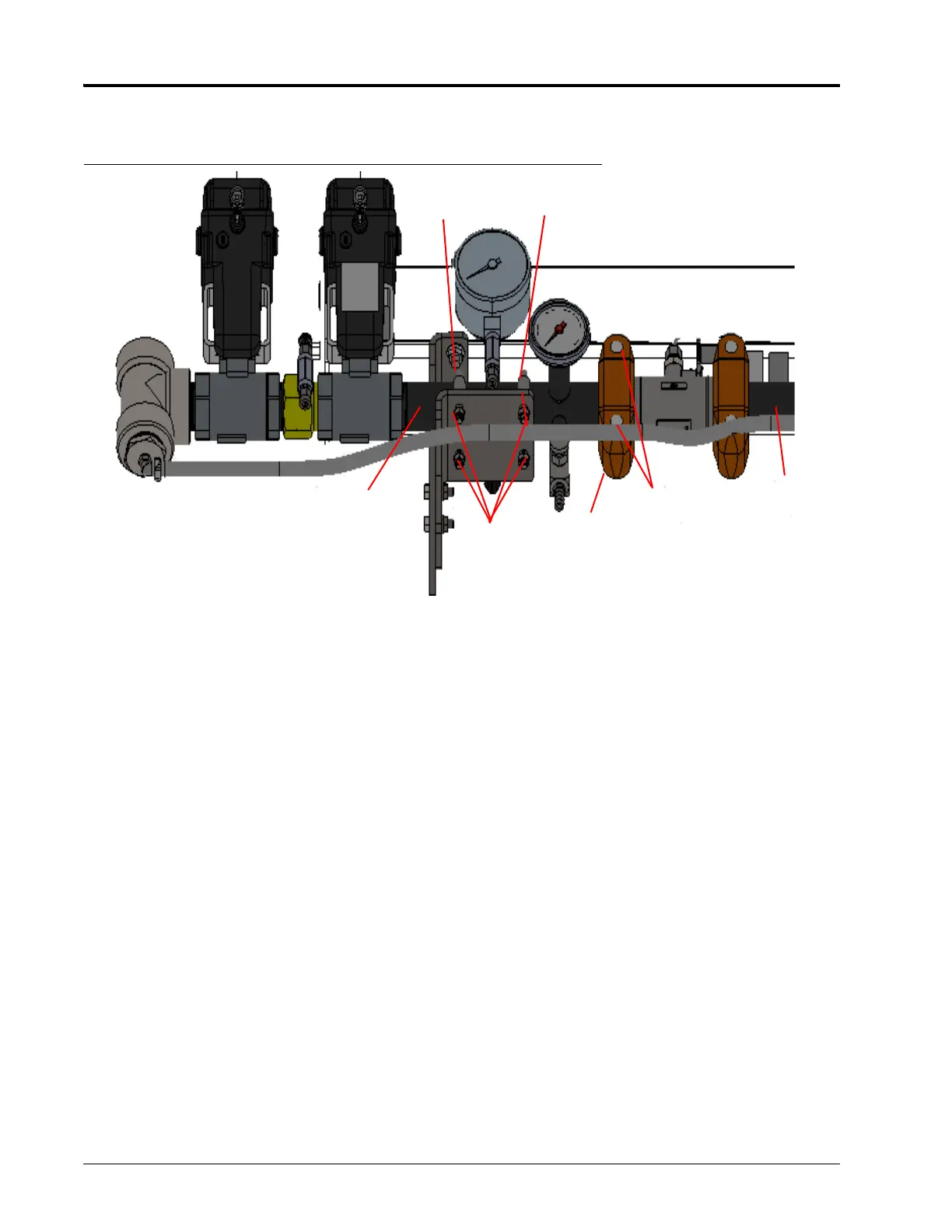

FIGURE 8. Attaching the Gauge Tree to the Cooler
1. Slide the coupling gasket over the end of the gauge tree that attaches to the flowmeter.
2. Connect the end of the gauge tree to the end of the flowmeter.
3. Use the provided coupling clamp, 1/2” bolts, and 1/2” nuts to secure the gauge tree to the outlet manifold.
4. Tighten the 1/2” nuts to 80 to 100 ft-lbs.
5. Install a clamping u-bolt over the top of the gauge tree so the threaded portion of the u-bolt is through the
two holes on the pipe support bracket.
6. Thread and secure the 3/8” nuts to the threaded ends of the clamping u-bolt.
7. Loosely tighten the 3/8” nuts.
8. Repeat steps 5 - 7 for with the second clamping u-bolt.
9. Tighten the 3/8” nuts that secure the gauge tree to the pipe support bracket.
10. Tighten the 3/8” nuts that secure the pipe support bracket to the mounting bracket.
Clamping U-Bolts
1/2” Clamp
3/8” Nut
1/2” BoltGauge Tree
Outlet Manifold
Cooler
To Next Page
