MOUNTING THE ACCUFLOW™ SYSTEM
Mount the AccuFlow system directly to the frame of the tool bar or implement and as far rearward as possible to
minimize hose length to nurse tank.
NOTE: Ensure that toolbar can be folded without interfering with Accuflow system or components. Mounting
brackets may need to be modified to allow for Accuflow system to be attached to toolbar.
NOTE: Leave the mounting brackets slightly loose during initial installation to allow for adjustment. The
mounting bracket location will vary to the left or right of center depending on the location of the
standards.
NOTE: Ensure adequate clearance between the cooler and the standard so the standard has a full range of
motion and does not contact the cooler assembly. Also verify that the ball valve hands can be pulled
to the full off position with the emergency shut-off rope.
The intake port of the AccuFlow Vortex cooler should be pointing toward the rear of implement and nurse tank.
NOTE: Follow plumbing recommendations on the Component Recommendations table found in Chapter 2
to achieve desired flow rates. If Accuflow system cannot be installed with intake port facing rear of
implement, minimize the number of elbows and hose lengths used as recommended in the
Component Recommendations table.

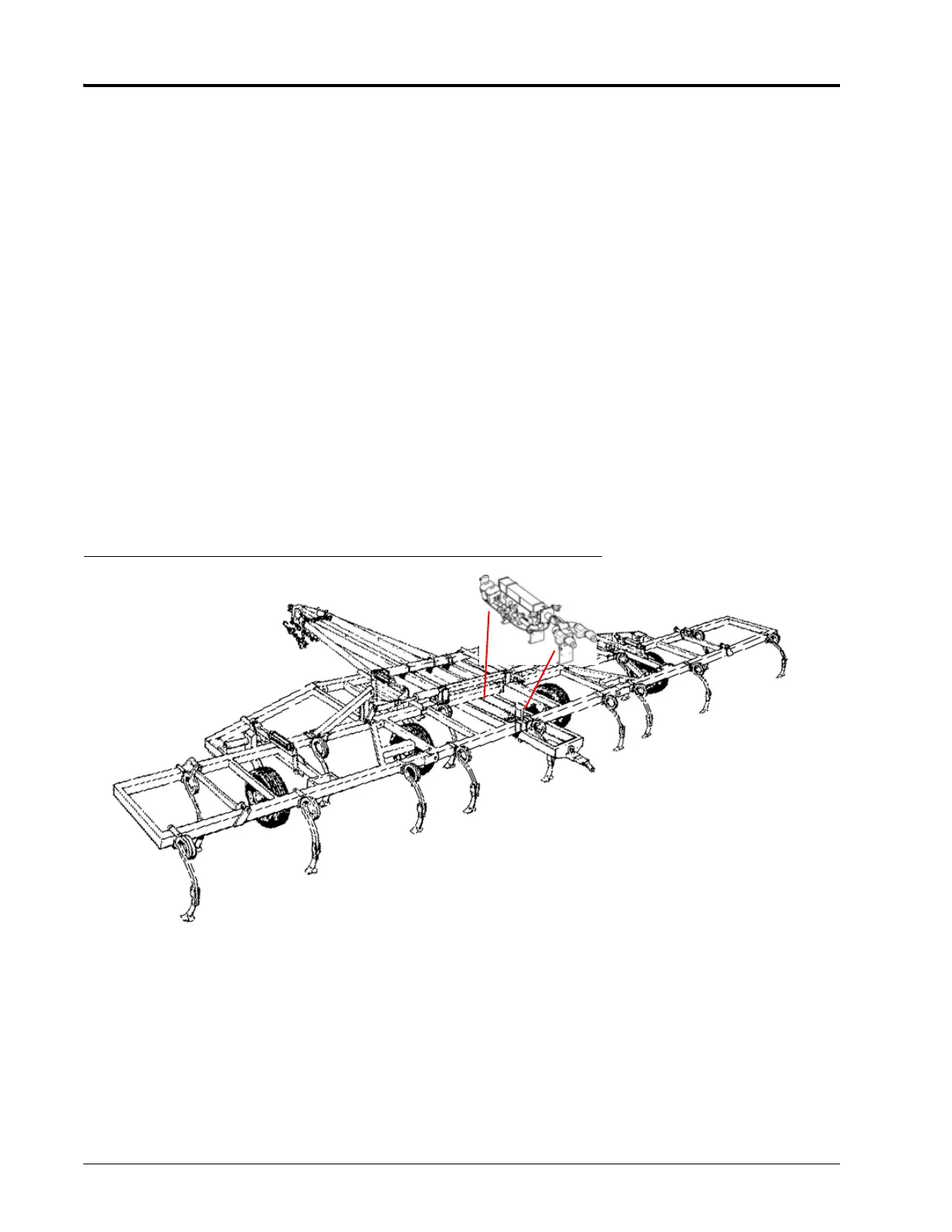

FIGURE 26. AccuFlow Mounting Example
EMERGENCY SHUT-OFF ROPE INSTALLATION
Using the provided quick link, securely tie a length of rope to the emergency shut-off valve. Route the rope so that,
when pulled, the emergency shut-off valve closes.
