5. Connect the 3/8” low pressure hose to the other side of the needle valve.
6. Route the 3/8” low pressure hose to a 3/8” hose barb tee on the top side of the cooler.

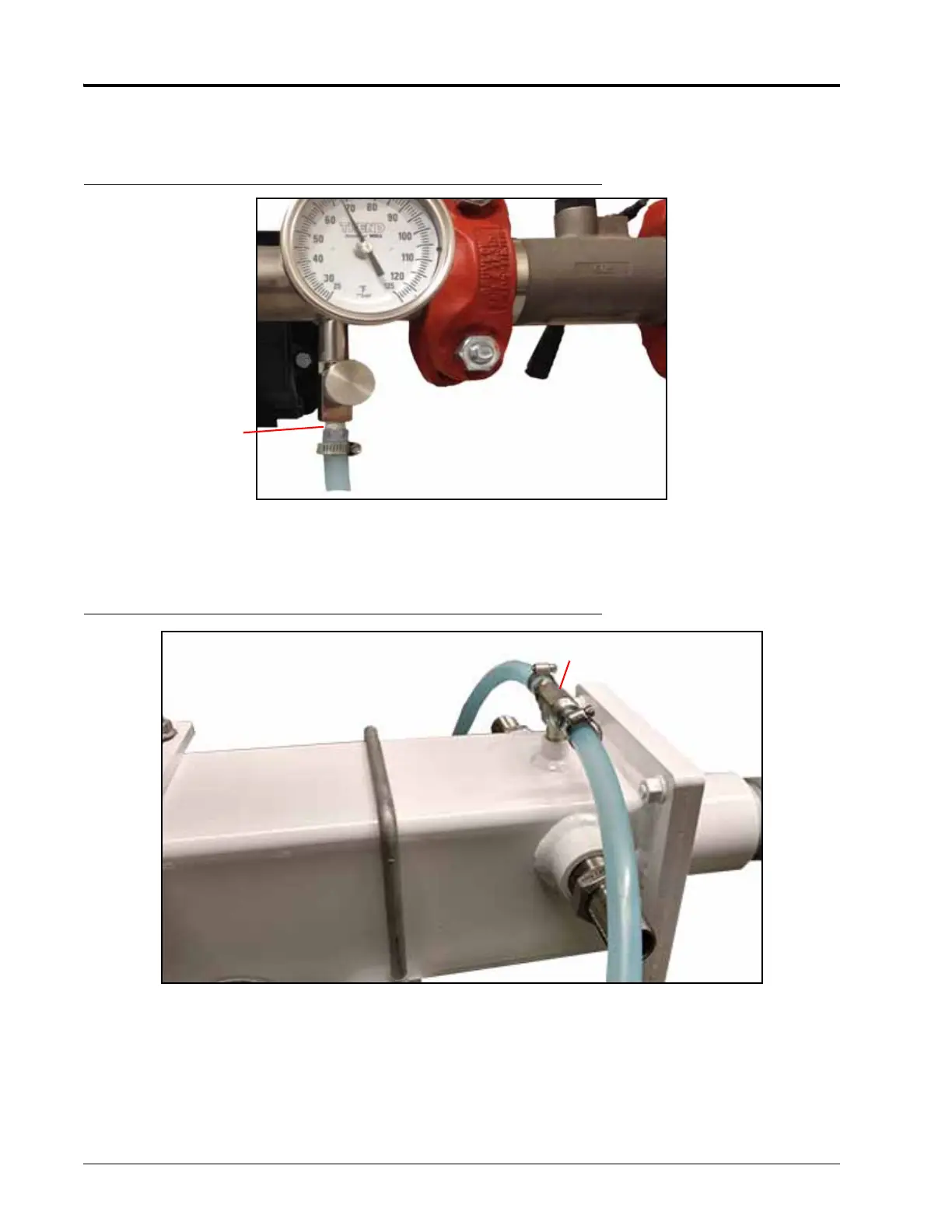

FIGURE 32. 3/8” Barb Tee
7. Connect to the hose barbs on the top of the cooler. This bleeds off into the cooler’s vapor chamber and out to
vapor tube knives.
FIGURE 33. Low Pressure Hose Connected to 90° Hose Barb On Cooler
To 3/8” Hose Barb on
Top Side of Cooler
To Next Page
