AccuFlow™ HP+ Calibration and Operation: Programming HP+ Rate Control - Viper Pro 57
ACCUFLOW™ HP+ CALIBRATION AND OPERATION
150 x 5.5 x 480
= 606 lbs(N)/min
5940.......................... (EQ 2)
(SI Units) Given a target application rate of 68 kg(N)/ha at an average of 10 km/hr and a calculated implement
width of 1220 centimeters, the required capacity is:
68 x 10 x 1220
= 13.8 kg(N)/min
60,000........................ (EQ 3)
The maximum capacity of the 80 GPM AccuFlow HP+ system is 336 lbs(N)/min [152 kg(N)/min].

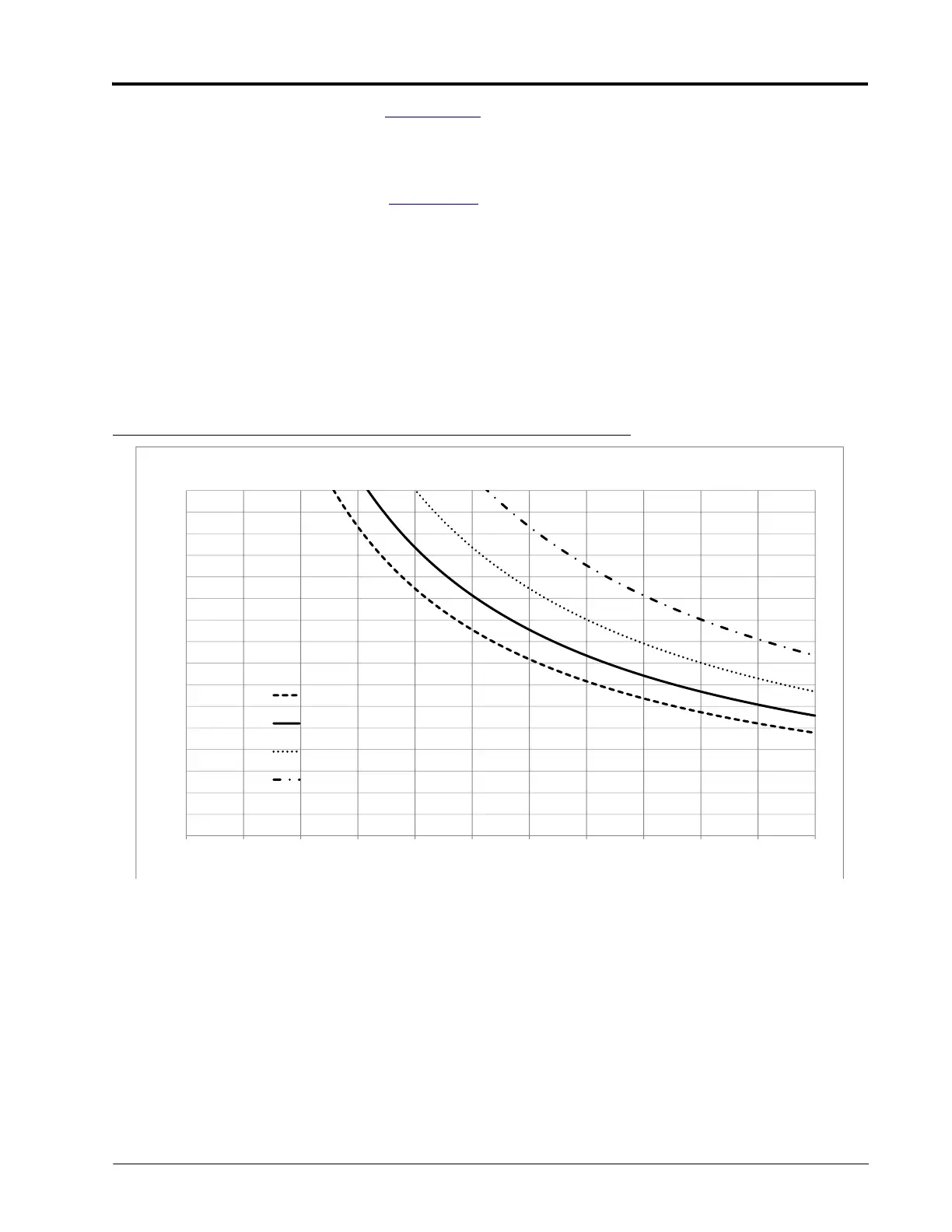

SYSTEM CAPACITY CHART
NOTE: This figure assumes all recommended plumbing practices have been followed. Failure to follow to
those practices will limit the system capacity to lower values.
The following figure illustrates the capacity of the AccuFlow system in various configurations. Refer to this chart as
part of the calculation for required capacity and when troubleshooting the AccuFlow system.
FIGURE 5. System Capacity Chart
0
50
100
150
200
250
300
350
400
100 200 300 400 500 600 700 800 900 1000 1100 1200
TargetRate(LbN/Acre)
ImplementWidth(IN)
80GPMHP+SystemCapacity
14MPHMax
12MPHMax
10MPHMax
8MPHMax
