7. Connect the remaining open end of the extension cable to the open electrical connection where the transducer
was originally connected.
8. Secure the extension cable to the machine using the provided cable ties.
PLUMBING MIXER ASSEMBLY (CONT)
1. Connect the outlet of the mixer to the installed hose barb fitting on the hose going to the plumbing on the
machine.
2. Assemble the mixer injection point plumbing as shown below.

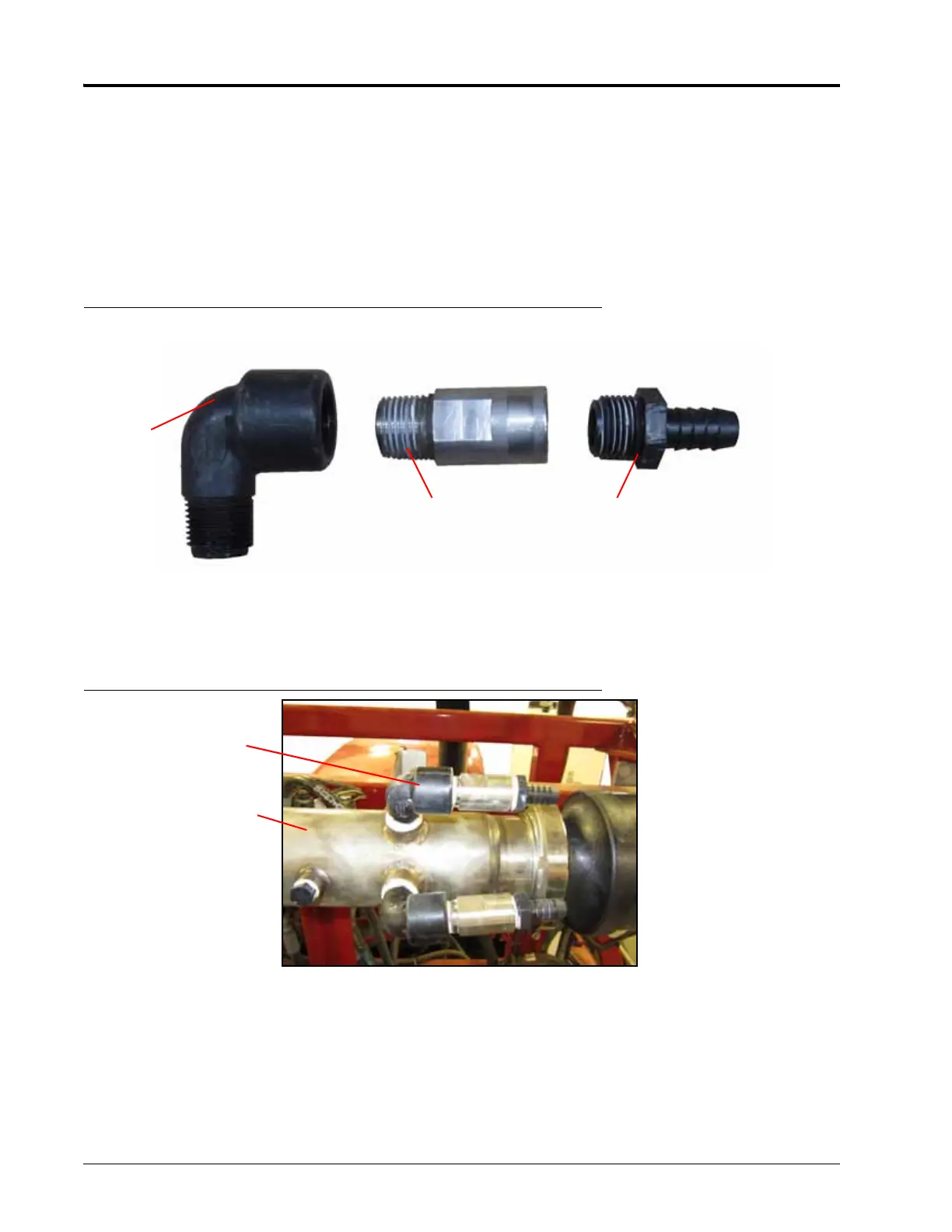

FIGURE 41. Mixer Injection Point Plumbing Assembly
3. Seal the plumbing assembly threaded joints with the provided thread sealant.
4. Remove one of the existing 1/2” plugs at the inlet of the mixer assembly.
FIGURE 42. Injection Point Plumbing Assembly Installed (Dual Pump Injection Point Shown)
5. Thread the injection point plumbing into the mixer.
6. Secure the hose to the fitting with the provided hose clamps.
TANK OVERFLOW PLUMBING
1. Install the M100 gasket between the 1” hose barb and the 1” NPT to M100 and secure assembly with a M100
clamp.
1/2” NPT
Street
Elbow
Injection
Point Check
Valve
1/2” NPT to
1/2 Hose
Barb Fitting
Mixer Assembly
Injection Point
Plumbing
Assembly
To Next Page
