4.4.5 RAH Module 10: Level test Page 42
65 4 3
2 1

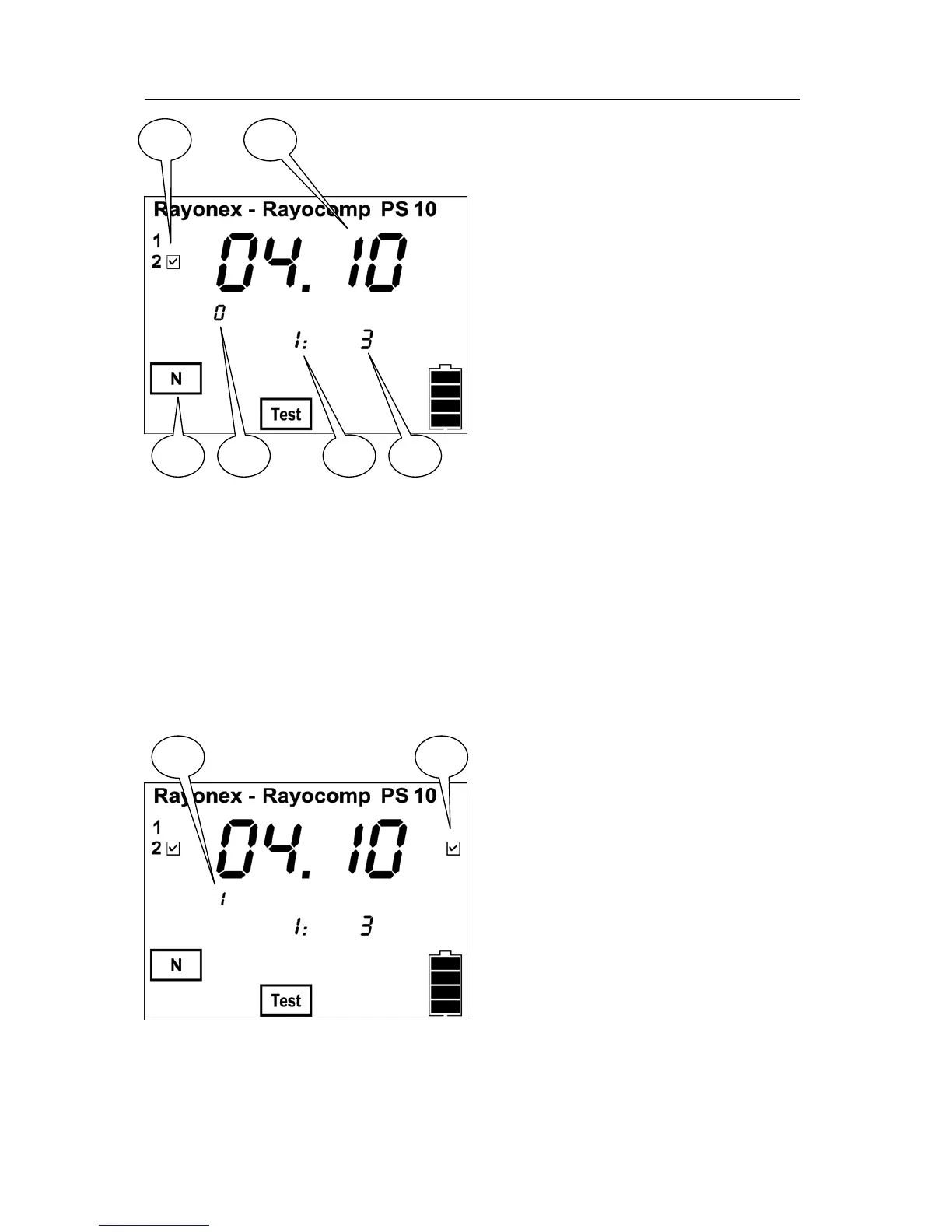

If the sensor button is pushed
forward, the second level of the
device is selected (fig. 1). The sub
programme 04.10 appears (fig. 2). As
the third level is not shown, you can
see immediately, that there are no
further sub programmes under the
programme number 04.10.
3 programmes are available on the
shown second RAH-programme level
(fig. 6). The programme 04.10 is the
first (fig. 5) of 3 programmes of the
second level.
For the test, the polariser of the Rayocomp PS 10 is automatically switched
on N (fig. 3). There are currently no programmes selected, that have to be
harmonised, visible under fig. 4.
If the sensor shows a linear movement while testing, the sensor button is
pushed down to mark the current programme that has to be harmonised.
This can be seen via the check mark on the right (fig. 7). Now, the counter
for stored resonance values (fig. 4) shows 1.
4 7
If the sensor button is now pushed to the right, the next RAH-programme
(04.20) will be selected. The display shows:
