4 Switch
Selects the channel to which you will tune the TV
to see the VCR picture if you connect the VCR
using one of the basic hookups.

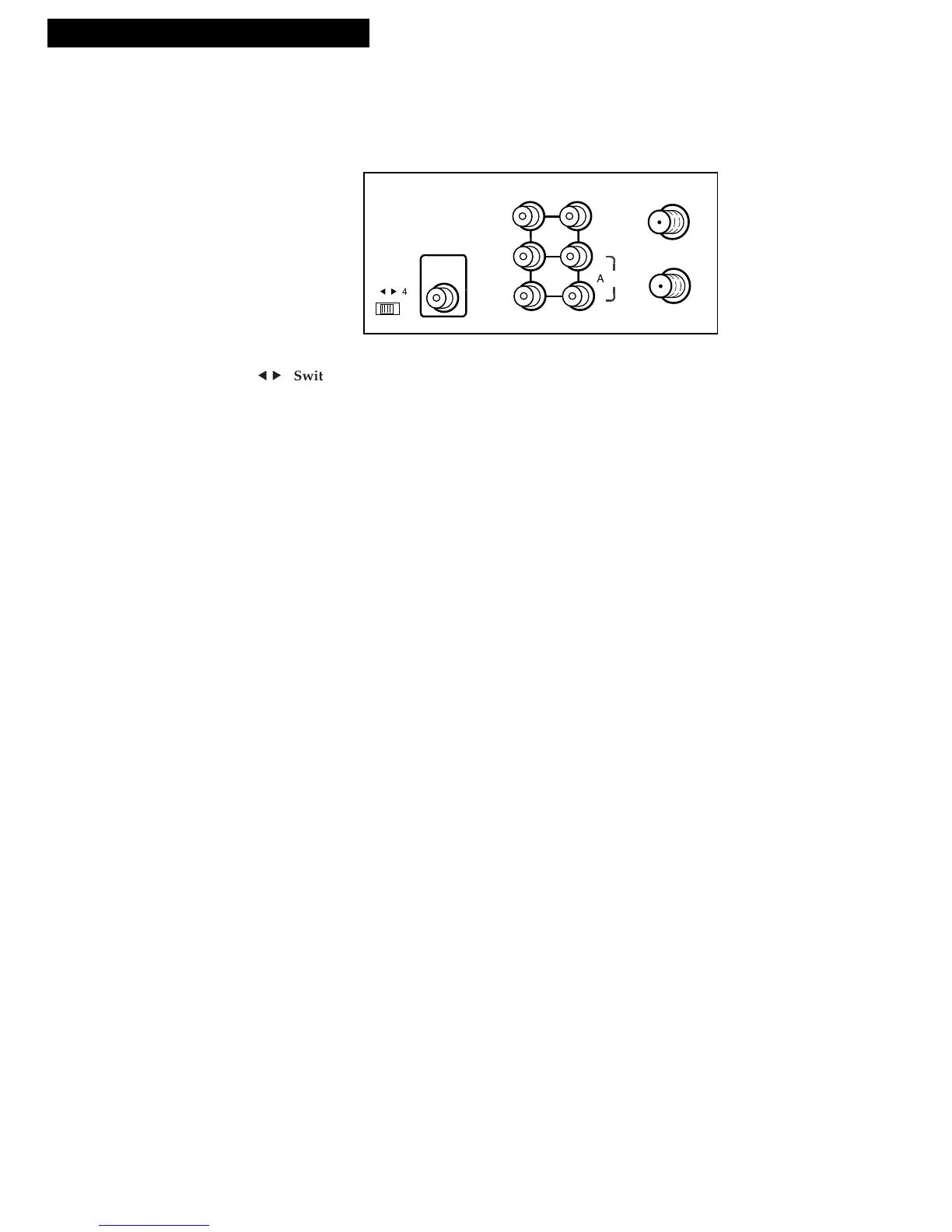

IN FROM ANT. (Antenna) Connector
Receives the signal from an antenna or cable
system that is attached to this connector.
OUT TO TV Connector
Passes signal to TV using the cable supplied.
OUT TO CABLE BOX Connector
Sends infrared remote signal to the cable box
through the cable box adapter (supplied) for those
cable boxes that are remote controlled.
VIDEO and AUDIO R (Right) and L (Left) IN Jacks
Receive signals from another component, like a
VCR or camcorder, when it is connected to these
jacks. Use INPUT to select.
VIDEO and AUDIO R (Right) and L (Left) OUT
Jacks
Send signals from this VCR to another component,
like a TV monitor or VCR, when it is connected to
these jacks.
