INPUT EXTERNAL TIMECODE
NOTE: This procedure requires a DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander,
DSMC2 Jetpack- SDI Expander, or DSMC2 REDVOLT Expander. For more information, go to "Input/Output
Connectors" on page215.
To input timecode generated by an external device, follow the instructions below:
1. Connect the external timecode generator to the camera:
DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, or DSMC2 Jetpack-
SDI Expander: Connect the SYNC port (00B LEMO) on the expander to the device (yellow BNC) using a
3BNC-to-00 LEMO Sync Cable.
DSMC2 REDVOLT Expander: Connect the GENLOCK port on the expander to the device using a 75 ohm
BNC cable.
2.
Go to Menu > Settings > Project > Timecode.
3.
Select the desired Timecode Display Mode.
4.
Set Source to External.
The TC indicator in the Lower Status Row turns green when an external timecode source is locked.
NOTE: When an external source is selected but not present, timecode displays User Provided settings.

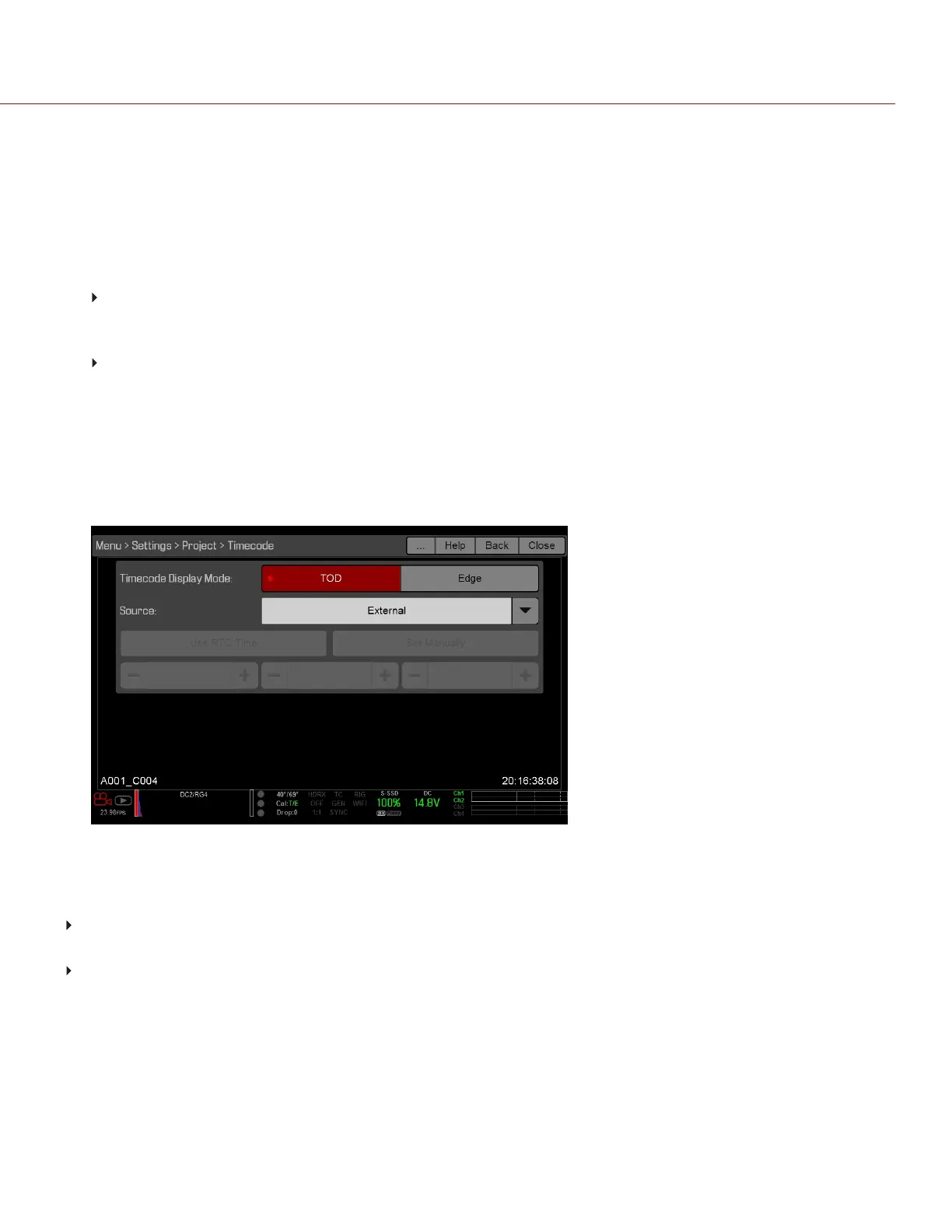

Figure: Source: External
REQUIRED CABLE
DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, or DSMC2 Jetpack-SDI
Expander: 790-0154, 3BNC-to-00 LEMO
DSMC2 REDVOLT Expander: 75 ohm BNC cable (such as the RED HD-SDI Cable, P/N 790-0341)
