SET UP INTERNAL TIMECODE
To set up and adjust timecode generated by the camera, follow the instructions below:
1.
Go to Menu > Settings > Project > Timecode.
2.
Select the desired Timecode Display mode.
3.
Set Source to User Provided.
4.
Use the additional controls to sync TOD timecode with the RTC or set manually. Alternatively, go to Menu >
Media > Device > Format Media... to set Edge timecode manually.
The TC indicator in the Lower Status Row remains grey when internal timecode is enabled.

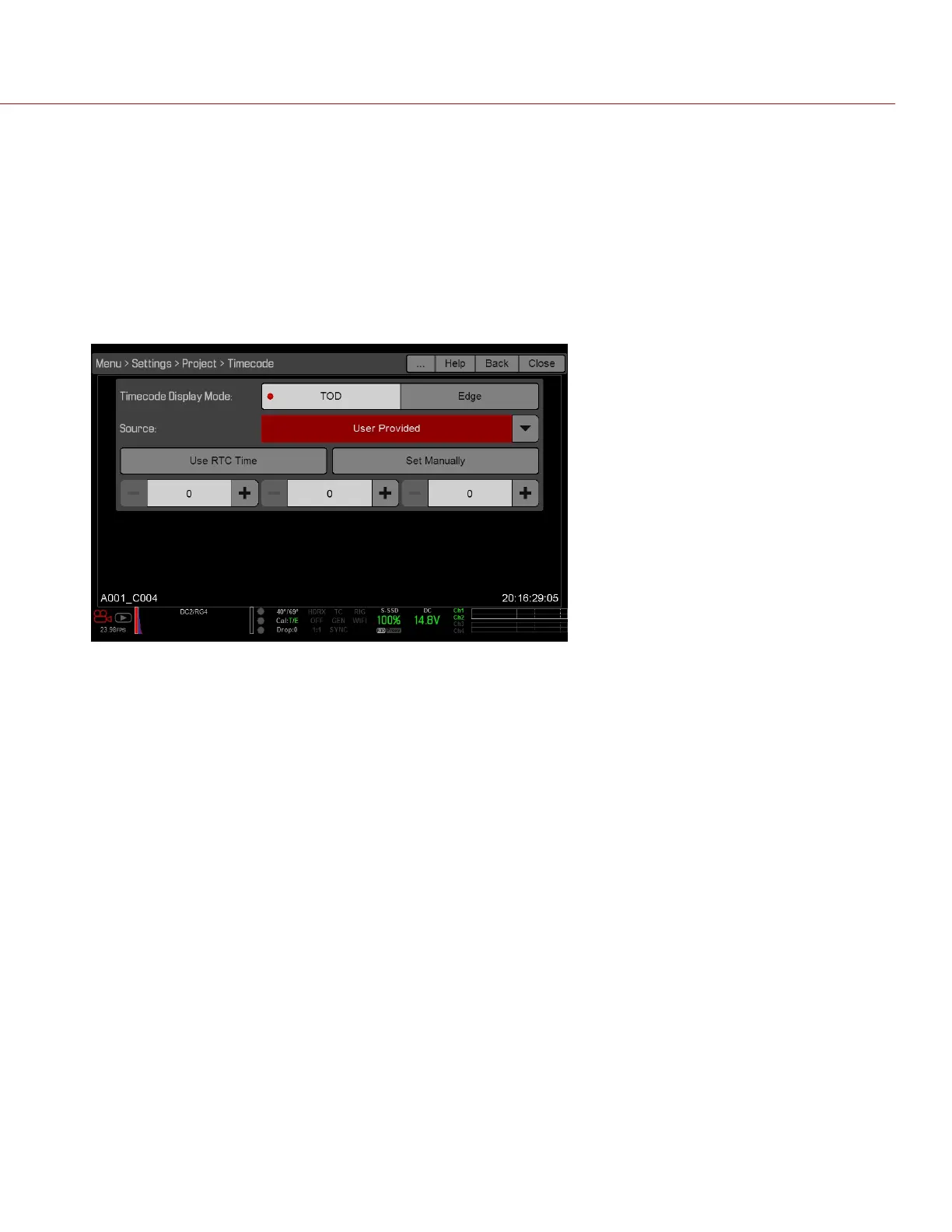

Figure: Source: User Provided
OUTPUT TIMECODE WITH DSMC2 REDVOLT EXPANDER
NOTE: A DSMC2 REDVOLT Expander is required to output timecode from the camera.
With the DSMC2 REDVOLT Expander, you can output a timecode signal to an external device, or to a slaved camera.
1. Follow the instructions in "Set Up Internal Timecode" above to set up internal timecode.
2. Connect the camera to another device using the PRO I/O TIMECODE CABLE (3').
A.
Connect one connector to the TIMECODE port on the DSMC2 REDVOLT Expander.
B. Connect the other connector to an external device or camera.
REQUIRED CABLE
790-0212: PRO I/O TIMECODE CABLE (3')
