Ellipse INSTALLATION GUIDELINES
70-00159-01-09 Proprietary Redline Communications © 2015 Page 14 of 52 April 29, 2015
2 System Features
2.1 System Components
The RDL-3000 Ellipse wireless sector controller (subscriber) is designed and
manufactured by Redline Communications, a world leader in design and production of
outdoor wireless TCP/IP transport for mission critical applications.

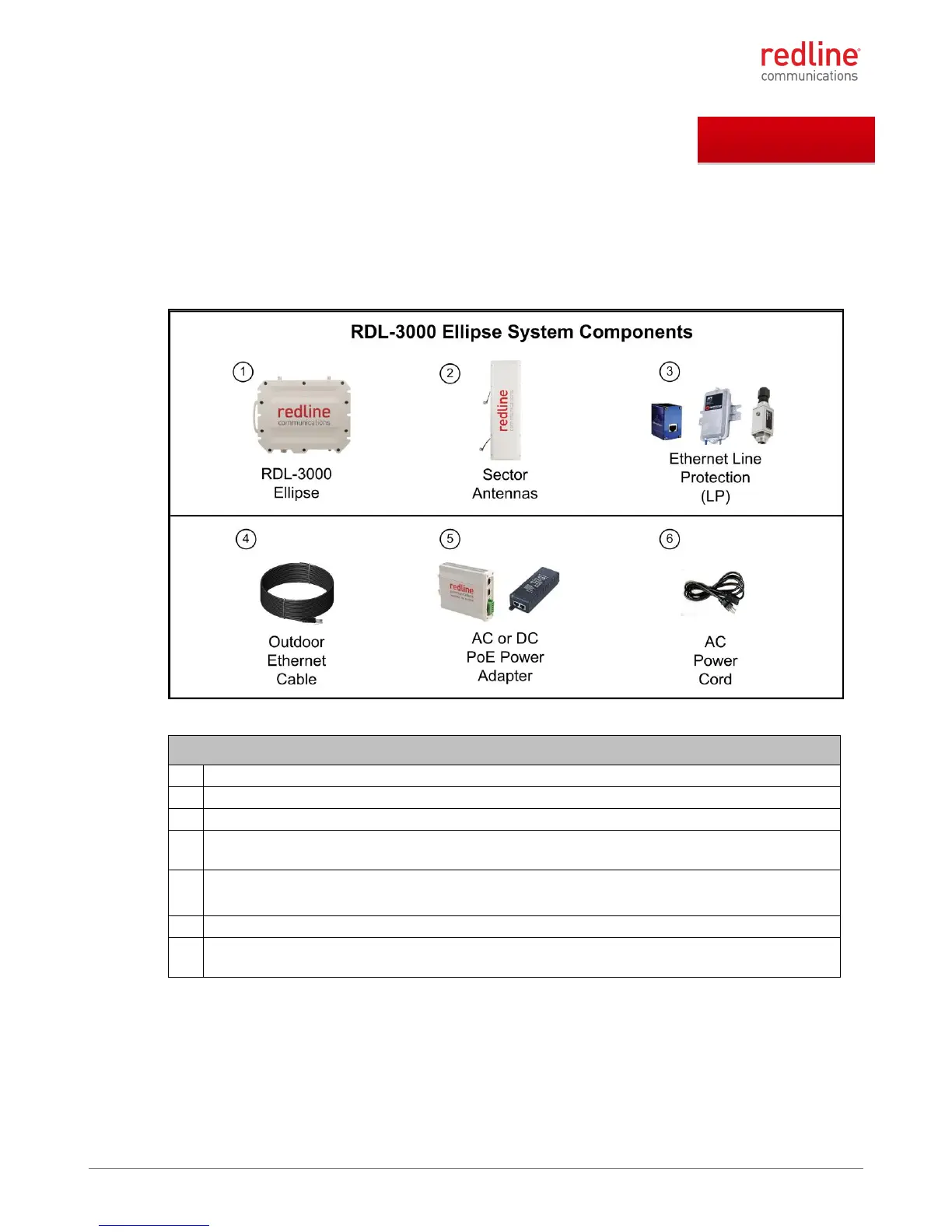

Figure 2: Features: Redline System Components
Table 3: Features: Redline System Components
RDL-3000 Ellipse base station (sector controller).
Flat panel sector antenna (wide beamwidth) with integrated GPS antenna.
Line protection (LP) unit. Recommended for lightning protection at cable ingress to
building or equipment shed.
Cat-5e shielded outdoor Ethernet cable terminated with RJ-45 connector each end.
Connects Ellipse system to PoE and PoE to local area network (91 m (300 ft) max.).
Power over Ethernet (PoE) power injector (AC or DC)
The PoE power cord. AC power cords are available in NA, EU, or UK type. Ordered
separately for AC PoE only.
Note: All items must be specified individually as part of each system order.
