Ellipse INSTALLATION GUIDELINES
70-00159-01-09 Proprietary Redline Communications © 2015 Page 50 of 52 April 29, 2015
5.2 Ethernet Surge Protection Device
This Ethernet line protector is required to protect the in-cabinet equipment from lightning
induced power surges on the Ethernet lead-in cable.

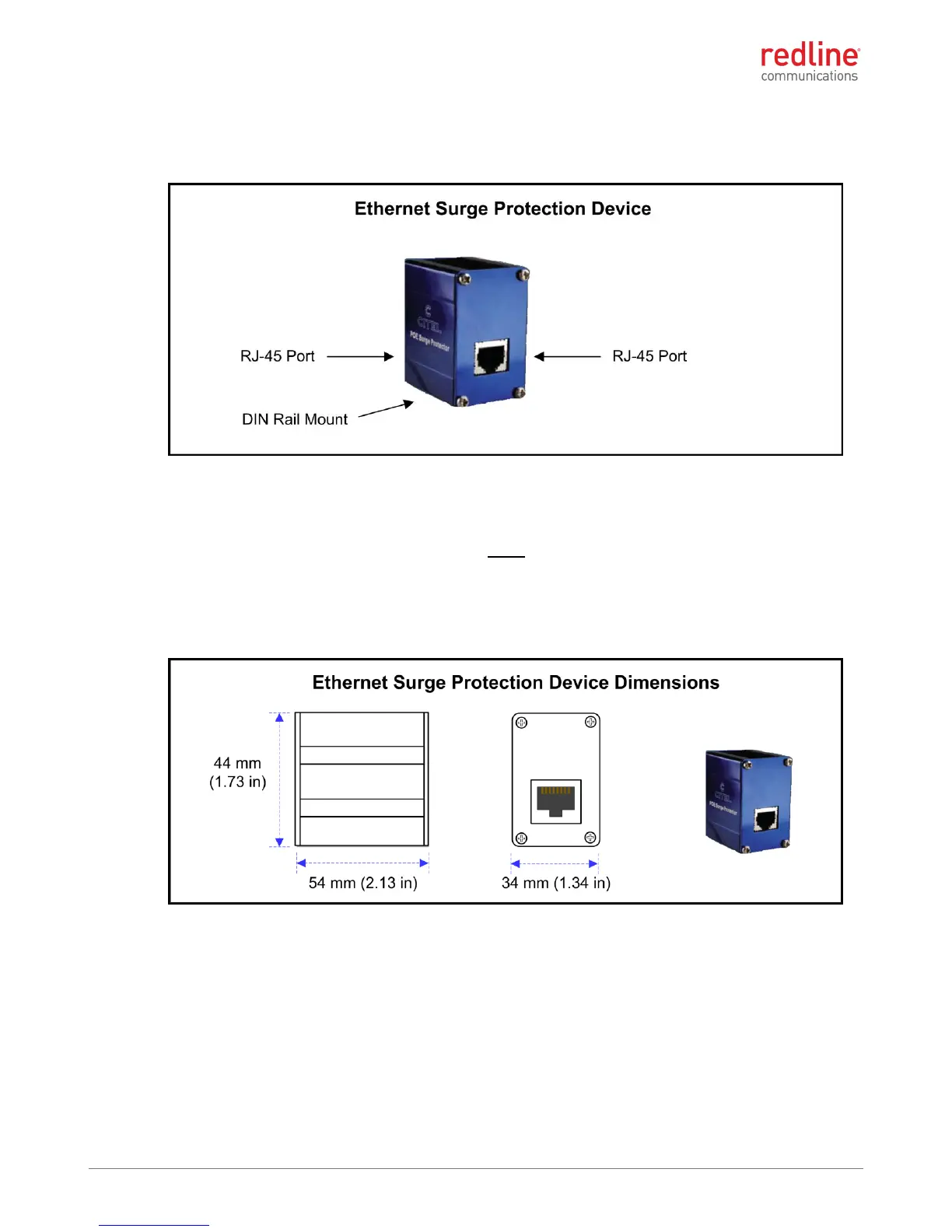

Figure 36: Reference: Ethernet Line Protection Device
Ethernet Port
The protection device includes two RJ-45 / F connectors. The cables may be connected
in any orientation. The protection device must be properly grounded to protect against
power surges and accumulated static electricity. Connect the grounding wire to the
device screw lug, DIN rail clip or mounting flange.
Surge Arrestor Dimensions
The surge arrestor dimensions (h-d-w) are: 44 x 54 x 34 mm (1.33 x 2.13 x 1.73 in).
Figure 37: Reference: Ethernet Line Protection Device Dimensions
