Ellipse INSTALLATION GUIDELINES
70-00159-01-09 Proprietary Redline Communications © 2015 Page 23 of 52 April 29, 2015
Material Requirements
The site should be prepared prior to installation of the Ellipse wireless system. The
following diagram illustrates the main features of a Ellipse installation.

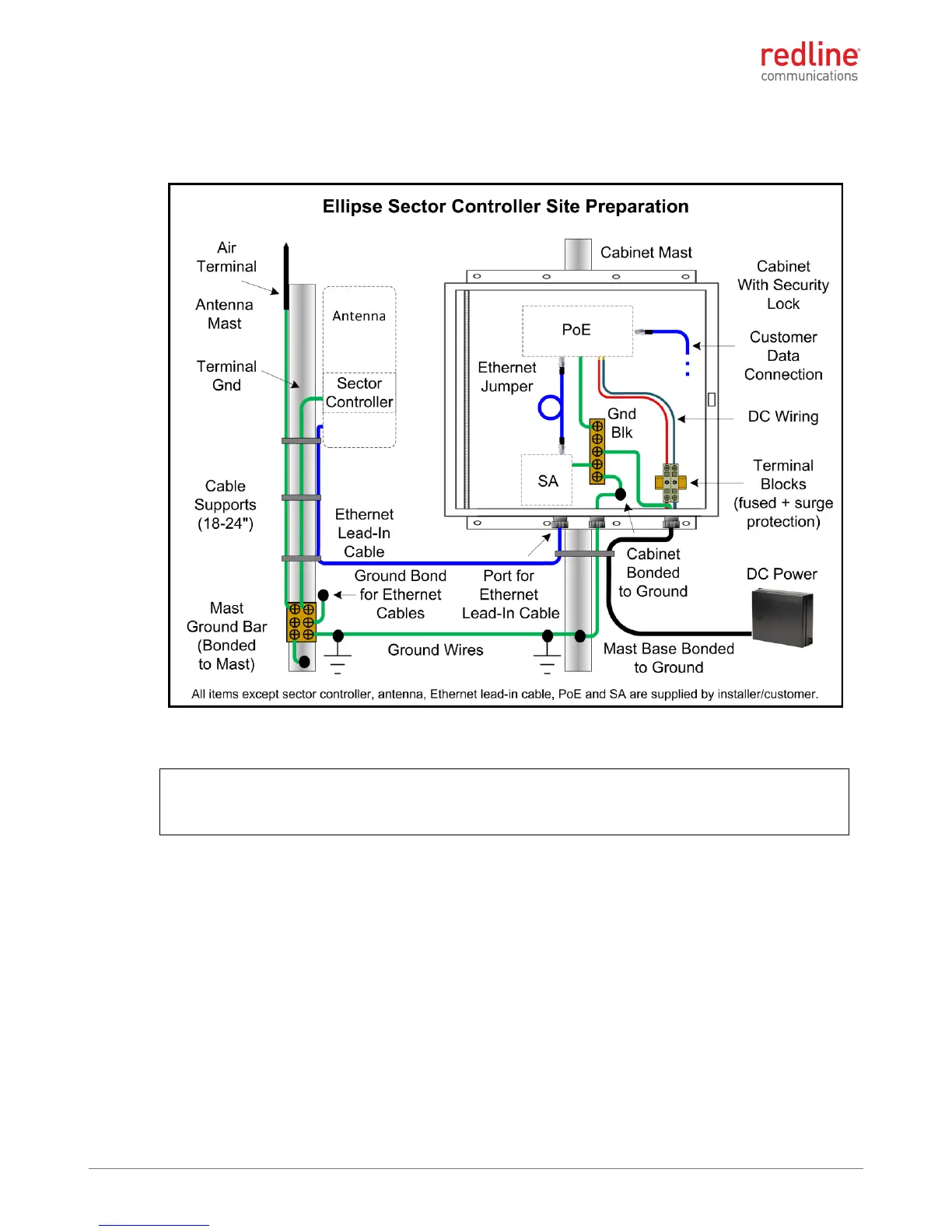

Figure 11: Site Survey: Site Preparation
Important: Diagram is for informational purposes only. Installer may adjust for company
standards and Industry Best Practices in effect at site location. Both AC and DC power
options are available for the Ellipse system.
