Ellipse INSTALLATION GUIDELINES
70-00159-01-09 Proprietary Redline Communications © 2015 Page 36 of 52 April 29, 2015
3. Place the Ellipse system on the antenna and secure using using the nuts and
washers included in the antenna hardware kit.
4. Tighten the nuts to a torque rating of 17 N-m (12.5 ft-lb).

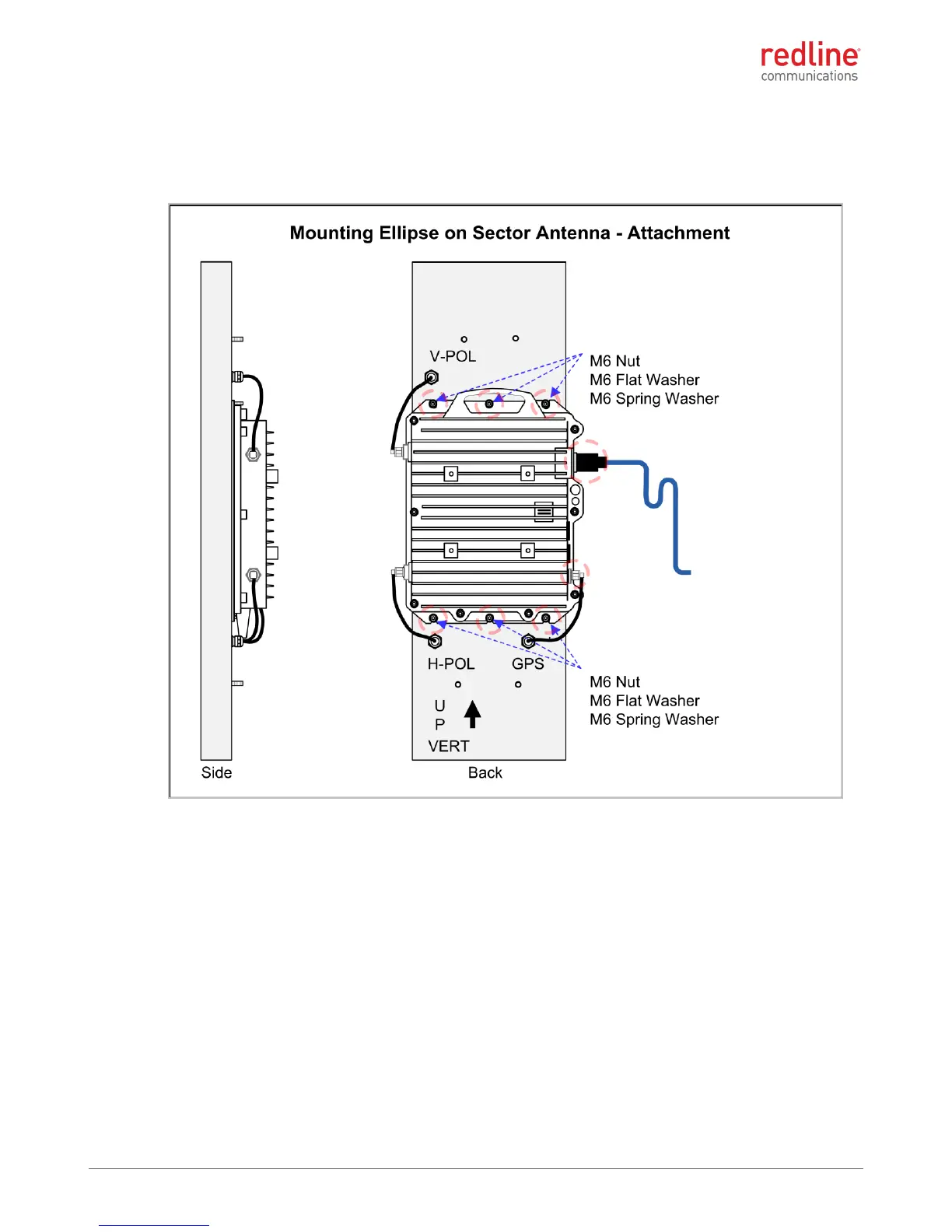

Figure 22: Installation - Mount and Secure Ellipse to Sector Antenna
