Ellipse INSTALLATION GUIDELINES
70-00159-01-09 Proprietary Redline Communications © 2015 Page 15 of 52 April 29, 2015
2.2 Ellipse Wireless Sector controller
The Ellipse wireless sector controller provides the Ethernet and wireless interfaces
necessary to provide secure reliable data transport.

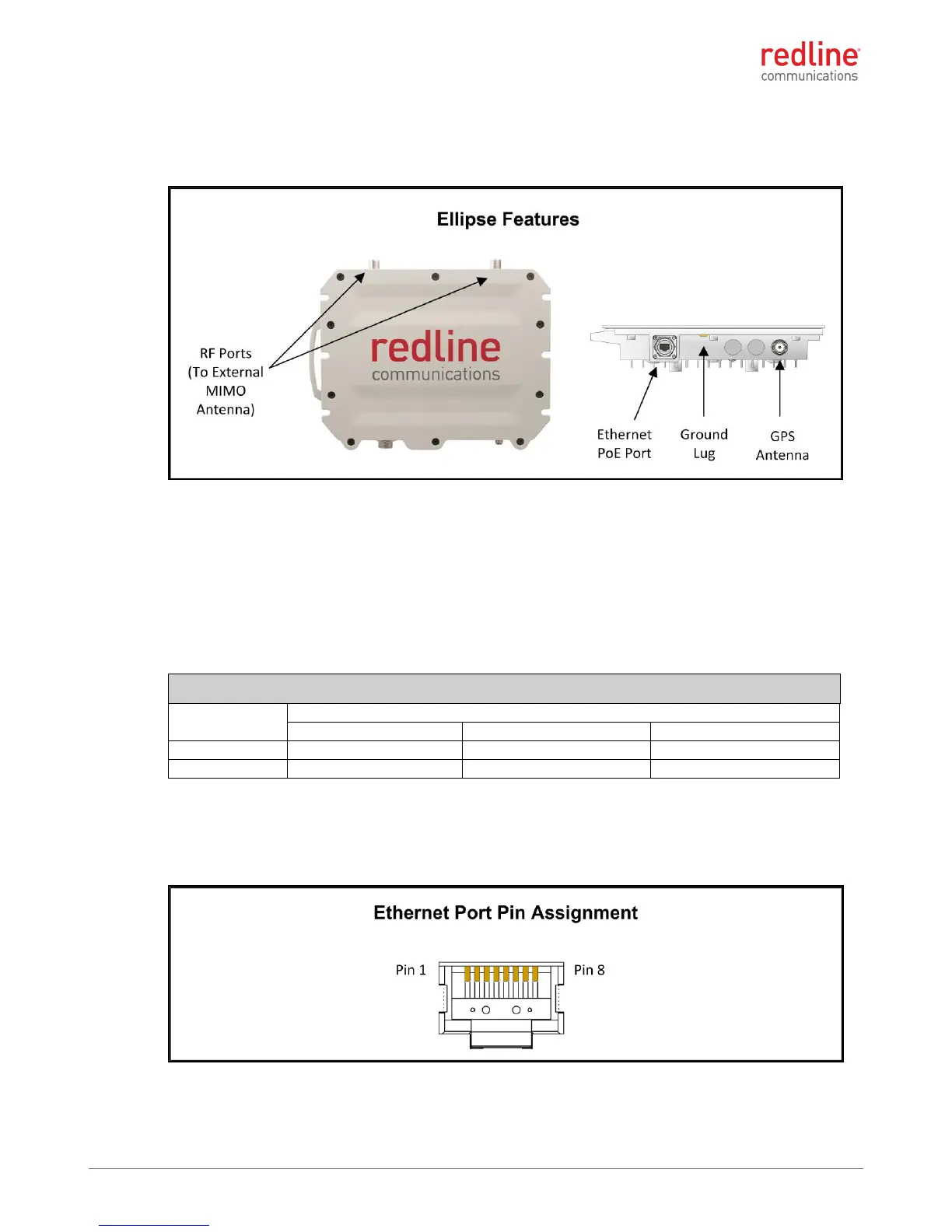

Figure 3: Features: Ellipse Features
RF Ports
The two RF ports (N-type F connectors) conduct RF signals between the Ellipse and the
antenna system (ordered separately). The Ellipse can be operated using a SISO (single
antenna) or MIMO (multiple antenna) system. RF jumper cables are included with
Redline mounting kits.
When deploying SISO systems in a sector it is important to match the polarization used
by the sector controller and subscriber.
Table 4: Features: Polarization of Wireless Terminal with Integrated Antenna
Ethernet Port
The Ethernet port (RJ-45 / F connector) receives DC power and provides Ethernet
connectivity with the local network. The Ethernet port connects to the PoE adapter using
a weatherproof CAT-5e Ethernet cable.
Figure 4: Features: Ellipse PoE Connector Pinout
