Ellipse INSTALLATION GUIDELINES
70-00159-01-09 Proprietary Redline Communications © 2015 Page 17 of 52 April 29, 2015

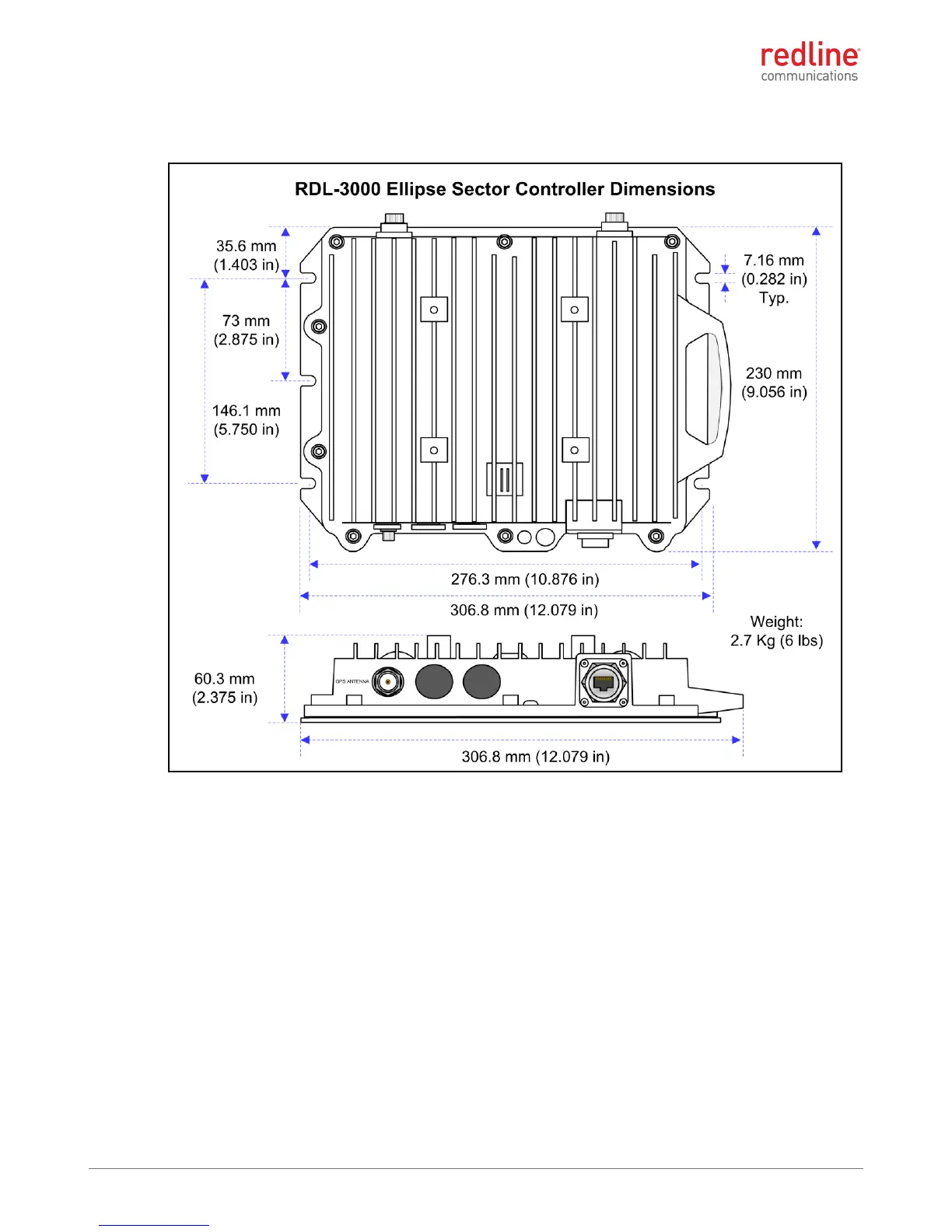

Ellipse Dimensions
The Ellipse dimensions are: 307 x 245 x 60 mm (12.1 x 9.65 x 2.3 in).
Figure 6: Features: Ellipse Wireless Sector controller Dimensions
