Ellipse INSTALLATION GUIDELINES
70-00159-01-09 Proprietary Redline Communications © 2015 Page 41 of 52 April 29, 2015

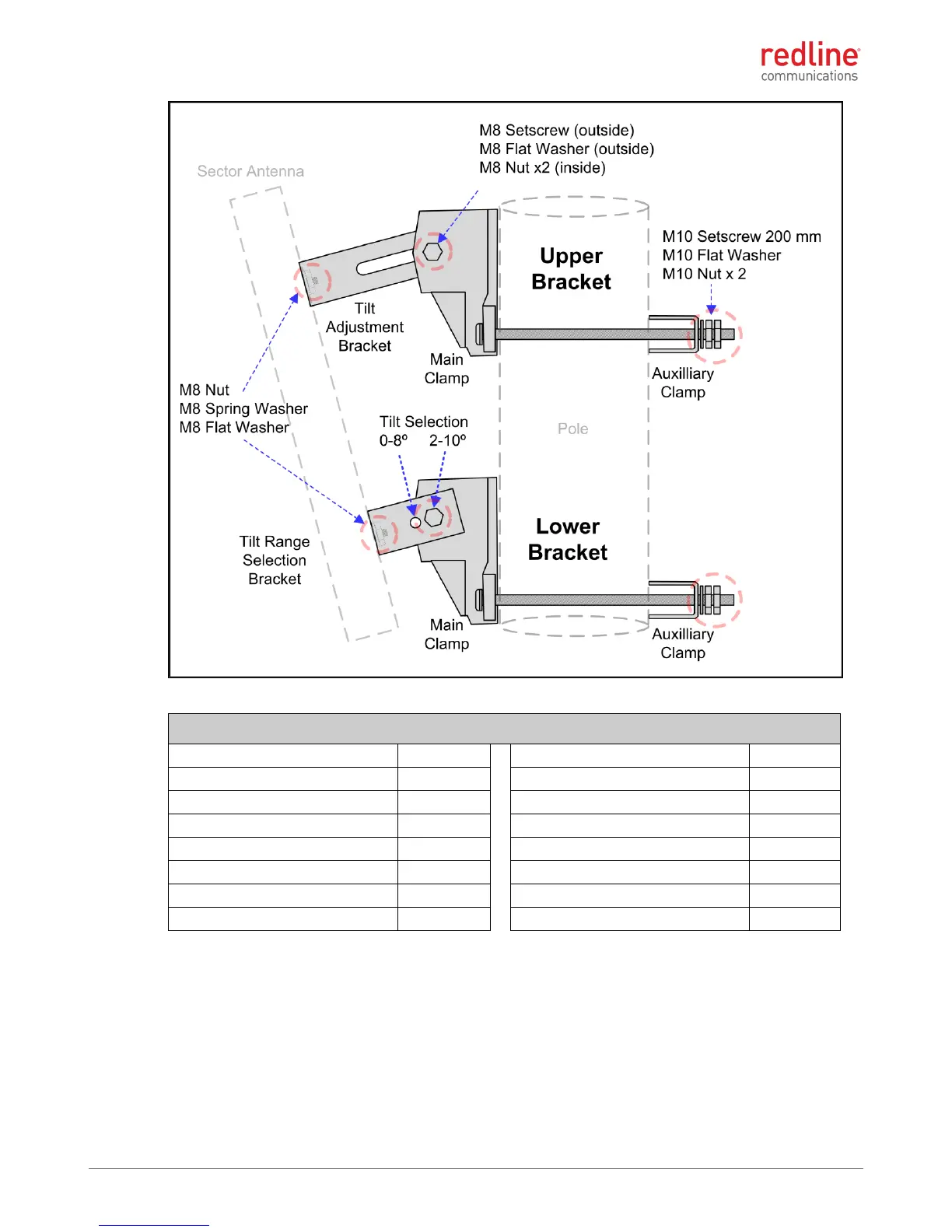

Figure 27: Installation - Integrated Sector Antenna - Tilt Brackets Detail
Table 15: Installation - Integrated Sector Antenna Mounting Kit - Parts List
Description
Quantity
Description
Quantity
Main Pole Clamp
2
M8 x 30 Setscrew
4
Auxiliary Pole Clamp
2
M8 Flat Washer
8
Slider Adjustment Bracket
1
M8 Nut Plain
8
Tilt Selection Bracket
1
M8 Spring Washer
4
M10 x 200 Setscrew
4
M6 Nut Plain
6
M10 Flat Washer
4
M6 Flat Washer
6
M10 Nut
8
M6 Spring Washer
6
