Ellipse INSTALLATION GUIDELINES
70-00159-01-09 Proprietary Redline Communications © 2015 Page 48 of 52 April 29, 2015
5.1.2 AC-DC PoE
The Power over Ethernet (PoE) power injector provides power to the wireless sector
controller using spare conductors on the Ethernet cable. The AC-DC power input may
be 90-245 VAC. All Ethernet conductors are isolated (ETH and PoE) and have surge
protection circuitry.
The PoE adapter provides operational power for the Ellipse and the Ethernet connection
to the wireless interface.
1. Connect the Ethernet outdoor cable from the Ellipse to the OUTPUT (DATA &
POWER) port on the PoE power adapter.
2. Connect the test PC or network connection to the INPUT (DATA) port of the PoE
power adapter.
3. Connect the PoE power adapter to a compatible power source.

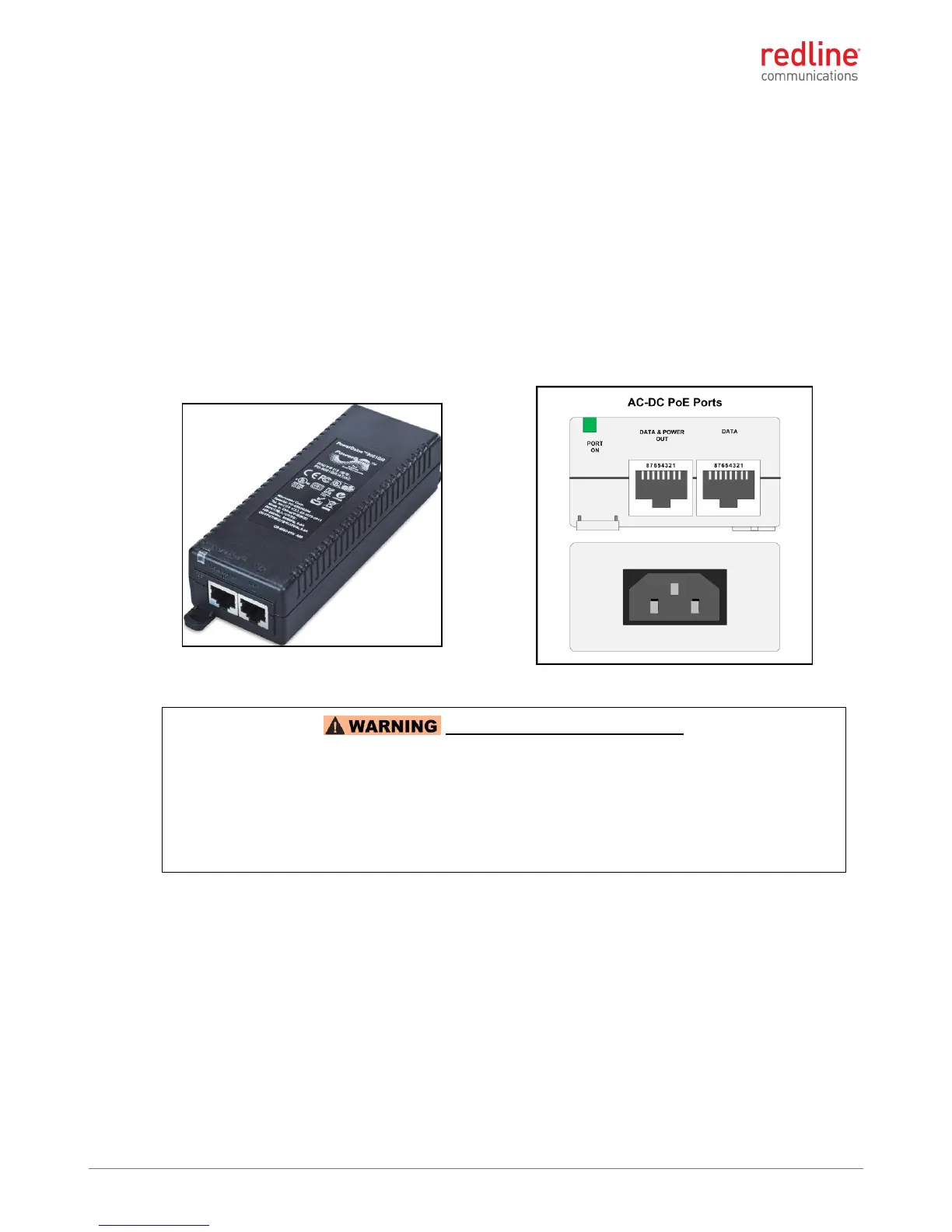

Figure 34: Reference: AC-DC PoE - Indoor Power Module Pinout
to Service Personnel: 48 VDC
Customer equipment including personal computers, routers, etc., must be connected
only to the INPUT (DATA) port on the PoE unit.
Only the outdoors Ethernet interface cable connecting the Ellipse can be safely
connected to the PoE OUTPUT (DATA & POWER) port. Customer premises Ethernet
equipment may be damaged if connected directly to the PoE OUTPUT (DATA &
POWER) port.
