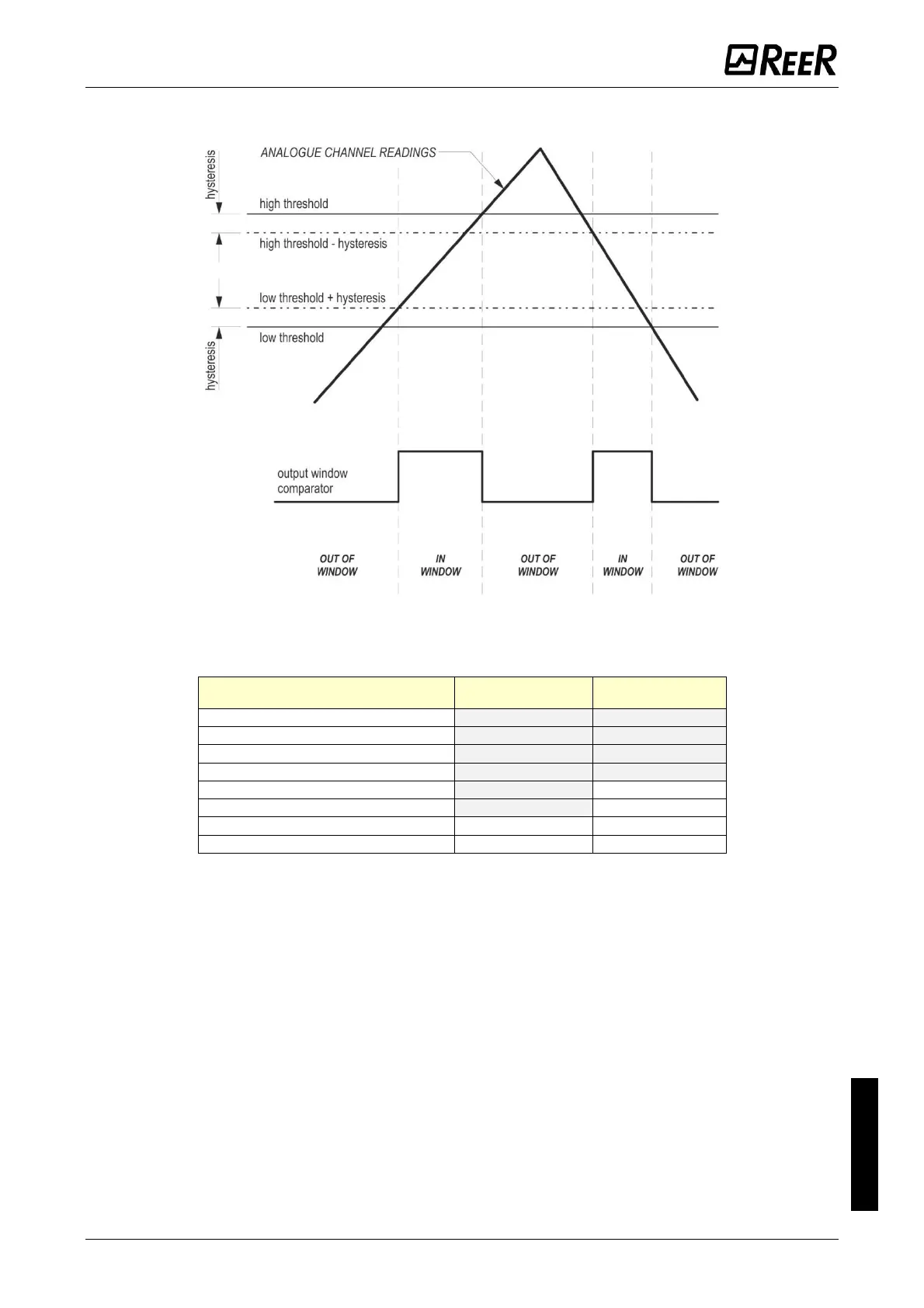

The following figure and table exemplify the states of the Window comparator:
Figure 72 – Example of window comparator behavior
Measurement value (A)
Current state of window
comparator
Next state of window
comparator
(A) < Low threshold value + hysteresis
OUT OF WINDOW
OUT OF WINDOW
(A) > High threshold
OUT OF WINDOW
OUT OF WINDOW
(A) >= High threshold value - hysteresis
OUT OF WINDOW
OUT OF WINDOW
(A) <= Low threshold value
OUT OF WINDOW
OUT OF WINDOW
(A) < High threshold value - hysteresis
OUT OF WINDOW
IN WINDOW
(A) > Low threshold value
OUT OF WINDOW
IN WINDOW
(A) < High threshold value
IN WINDOW
IN WINDOW
(A) > Low threshold value + hysteresis
IN WINDOW
IN WINDOW
