MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
216 8540780 • 10/07/2020 • Rev.38

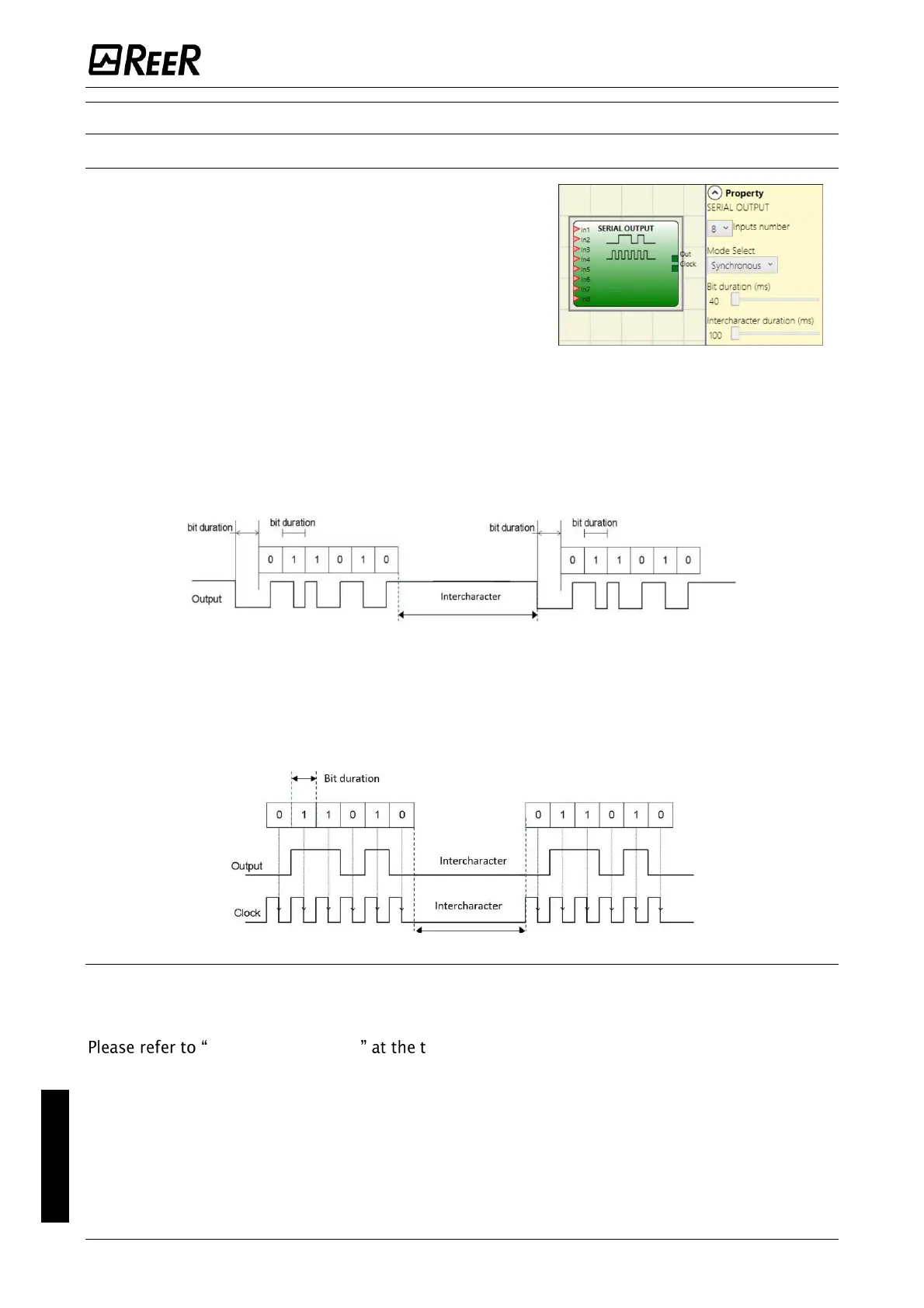

MISCELLANEOUS FUNCTION BLOCKS
SERIAL OUTPUT (max number = 4 with M1, 8 with M1S)
The Serial Output operator outputs the status of up to 8
inputs, serialising the information.
Operating principles.
This operator outputs the status of all the connected
inputs in two different ways:
Asynchronous serialisation:
1) The status of the line in the idle condition is 1 (TRUE);
2) The start data transmission signal is 1 bit = 0 (FALSE);
3) Transmission of n bits with the status of the connected inputs encoded using the Manchester
method:
- Status 0: rising edge of the signal at the centre of the bit
- Status 1: falling edge of the signal at the centre of the bit
4) Intercharacter interval is 1 (TRUE) to allow synchronisation of an external device.
Therefore, with the Asynchronous method the Clock output is not present.
Synchronous serialisation:
1) The output and the clock in the idle condition are 0 (FALSE);
2) Transmission of n bits with the input status using OUTPUT as data, CLOCK as the timing base;
3) Intercharacter interval is 0 (FALSE) to allow synchronisation of an external device.
Parameters
Inputs number: Defines the number of inputs of the function block, which may be 2÷8
(asynchronous) or 3÷8 (synchronous).
Mode select: The user can choose two ways of tranmission: Asynchronous and Synchronous.
Operating principles op of this page.
Bit length (ms): Enter the value corresponding to the length of each single bit (input n) in the pulse
train that makes up the transmission.
- 40 ms ÷ 200 ms (Step 10 ms)
- 250 ms ÷ 0.95 s (Step 50 ms)
Intercharacter interval (ms): Enter the time that must pass between the transmission of one pulse
train and the next.
- 100 ms ÷ 2.5 s (Step 100 ms)
- 3 s ÷ 6 s (Step 500 ms)
